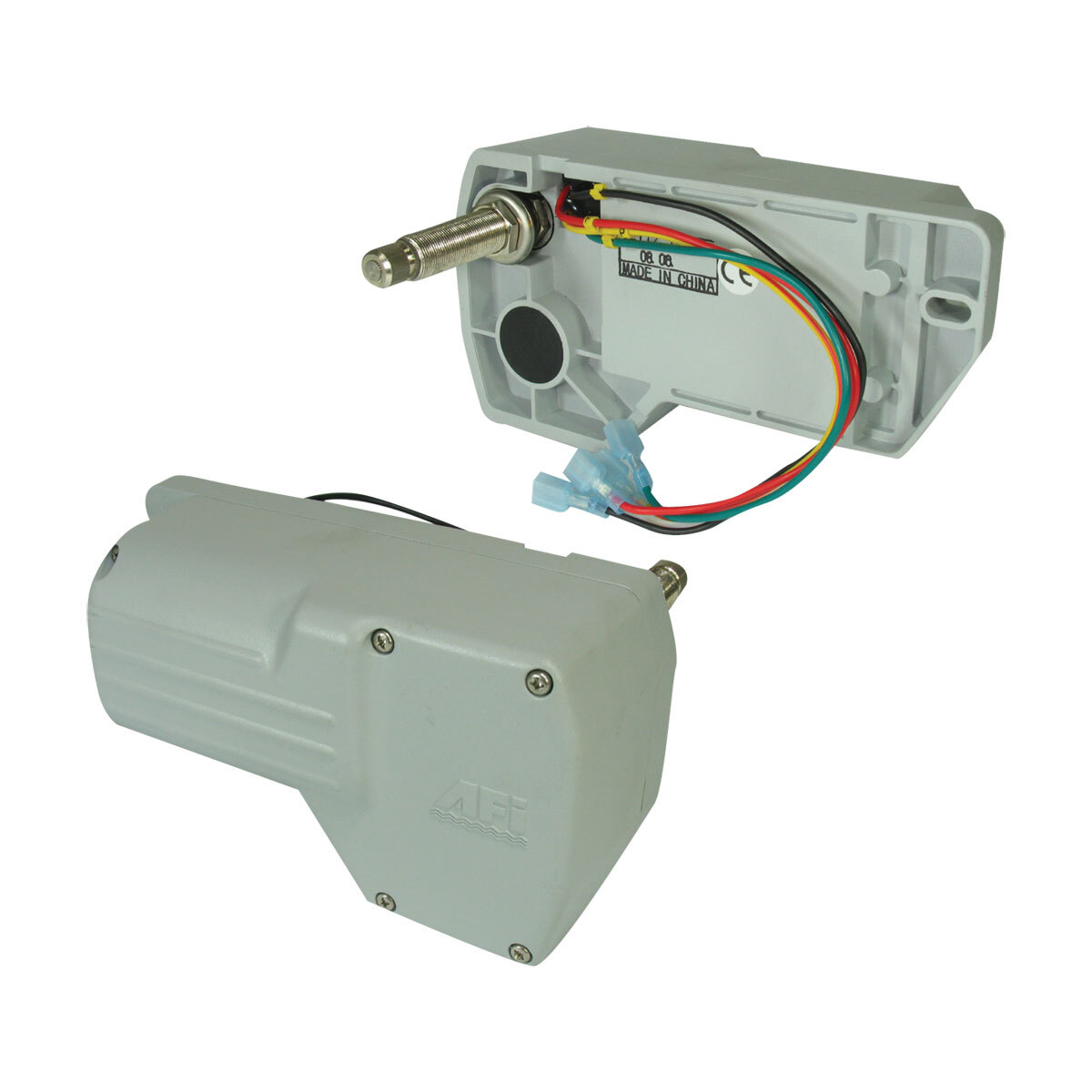

Marinco AFI 2.5 Waterproof Wiper Motors 116096
$594.00
RRP $779.00
SAVE $185.00 (24%)
In Stock (10
) - Ships in 2 days
Fully sealed powder coated aluminium waterproof base and housing, powers up to 660mm sweeps.
Features
• Chrome plated solid brass knurled drive nut with brass and stainless steel drive shaft
• M16 Brass shaft
• Factory pre-set sweep angles of 110°, with easy adjustment to 45°, 60° or 80°
• Two speed motor
• Coast to park with adjustable right or left self parking
• Sealed 150mm 16AWG wire leads, with RF shielded circuitry
• Stall torque 160 kgf/cm; 15.7 Nm (139 in – lbs)
• Stall current 9 “-" 10.5 amps at 12V
• No load current 1 - 1.6 amps at 12V
• 3 year warranty
| Code | Volts | Motor Length mm | Motor Depth mm | Motor Width mm | Thread Shaft Length mm | Overall Shaft Length mm |
|---|---|---|---|---|---|---|
| 116096 | 12 | 201 | 76.8 | 108 | 50 | 65 |
(B-116096)
| SKU | B-116096 |
| Barcode # | 035028820125 |
| Brand | MARINCO |
| Shipping Weight | 2.6300kg |
| Shipping Width | 0.246m |
| Shipping Height | 0.185m |
| Shipping Length | 0.186m |
