Veethree Electronics Premier Pro Domed Gauges - Stainless Steel - BLA 112378
Tacho 6000 RPM inboard & outboard
$239.00
RRP $359.90
SAVE $120.90 (34%)
In Stock (5
) - Dispatches in 2
days
Features
• Highly polished, curved stainless steel bezel that eliminates water trapping
• White graphics and pointer on a black dial background
• Where applicable, metric information is shown in blue
• Light piping directs red light behind the translucent dial and white light to the pointer for optimal night vision
• Fog free domed glass lens is scratch resistant
• Suitable for 24 volt application with the addition of a drop resistor (112394, 112396) and 24 volt bulb 112390
• Shielded to prevent magnetic interference
• Silicone dampened
• Hourmeter 10-32 volt
FOG FREE
| Dimensions | A mm | B mm | C mm | D mm |
|---|---|---|---|---|
| 75mm Tacho | 96 | 86 | 70 | 13 |
| 75mm Speedometer | 96 | 86 | 82 | 13 |
| 50mm Electrical | 61 | 53 | 63 | 11 |
| BLA Code | Description | Face Dia. mm | *Sender Style |
|---|---|---|---|
| Tachometer: | |||

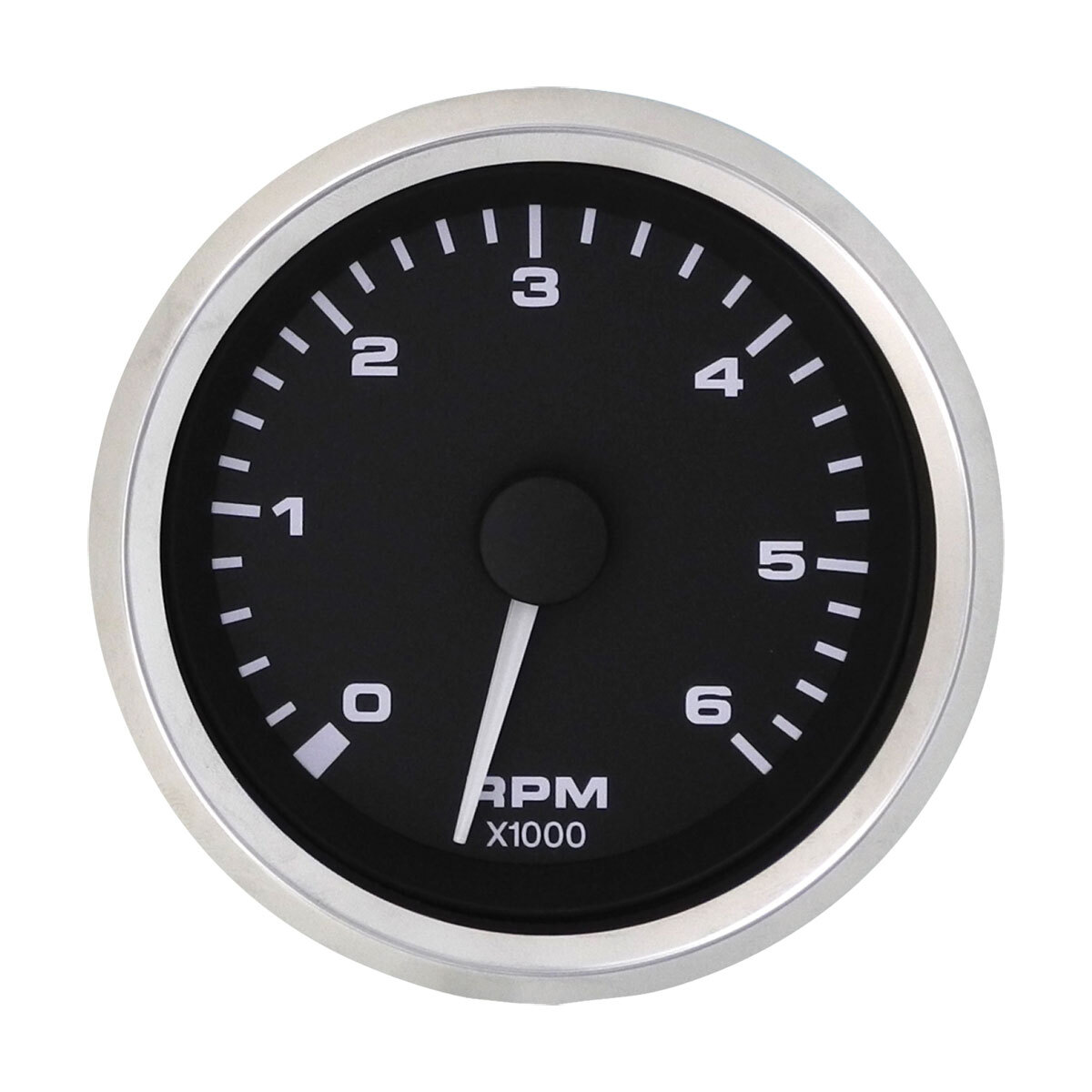

| 112378 | Tacho 6000 RPM inboard & outboard | 75 | Coil and O/board alt |
| Water temperature gauge: | |||

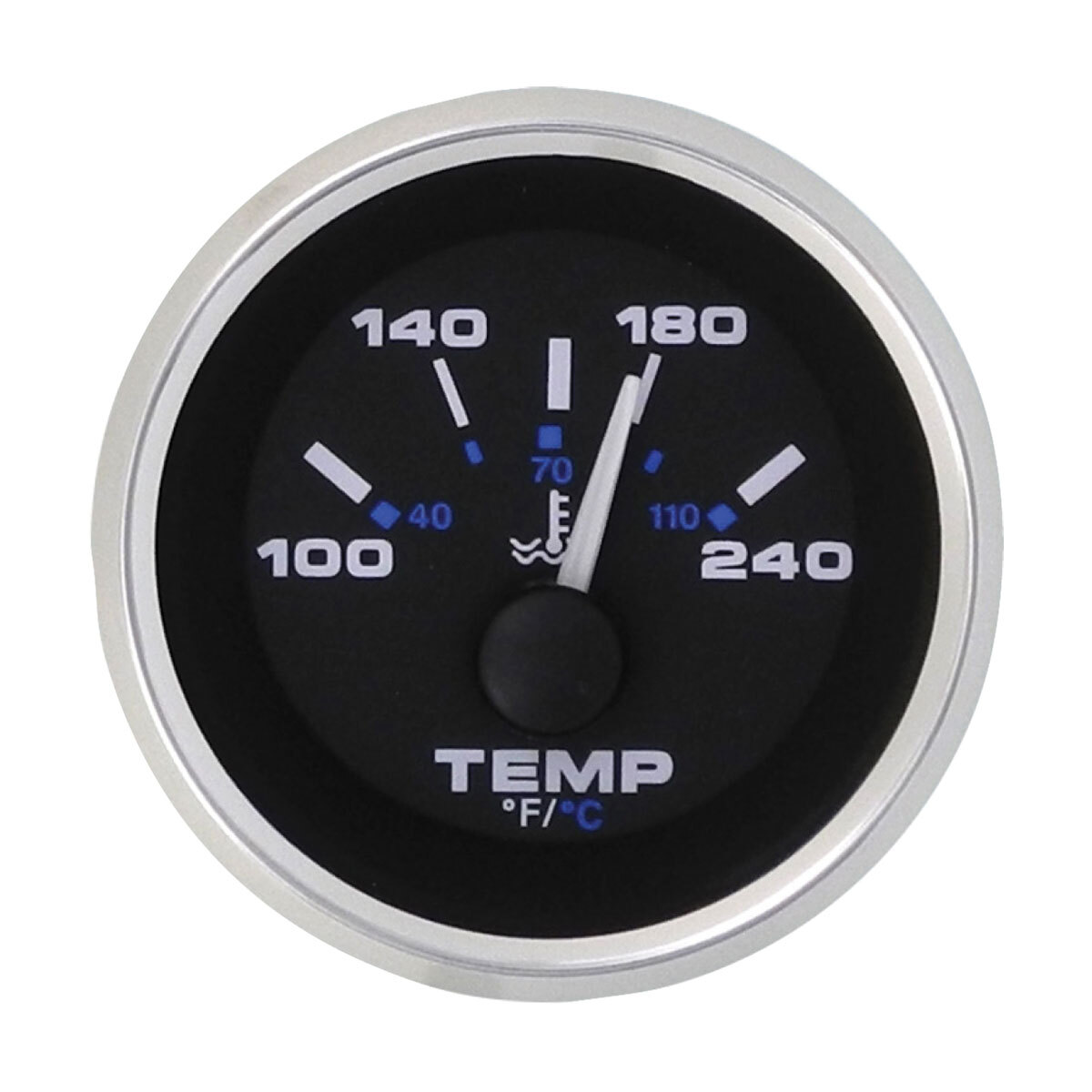

| 112380 | Water temperature 120ºF - 240ºF | 50 | D |
| Oil pressure: | |||
| 112382 | Oil pressure 0 - 80 PSI | 50 | C |
| Hourmeter: | |||
| 112388 | Hourmeter, 10,000 Hrs, 10-32 volt | 50 | Not required |
| Voltmeter: | |||
| 112384 | Voltmeter, 10 - 16 volt | 50 | Not required |
| Fuel: | |||
| 112386 | Fuel | 50 | F |
Accessories
112394 Drop resistor suit 75mm gauge
112396 Drop resistor suit 50mm gauge
112390 24 volt bulb
(B-P-112378)
| SKU | B-P-112378 |
