Veethree Electronics Black Amega Domed Gauges

Calculate Shipping

Description
Specifications

Features
• Very low profile black bezel follows the curve of the lens to eliminate any water ‘trapping’
• Red and white graphics on a black dial background
• Through dial and perimeter lighting is provided for night visibility
• Domed convex glass is scratch resistant
• Pointers are white with a black hub
• Shielded to prevent magnetic interference
• Silicone dampened
• Suitable for 24 volt application with the addition of a drop resistor (112394, 112396

Dimensions	A mm	B mm	C mm	D mm
75mm Tacho	96	86	70	13
75mm Speedometer	96	86	82	13
50mm Electrical	61	53	63	11

BLA Code	Description	Face Dia.mm	*Sender Style
	Tachometers:

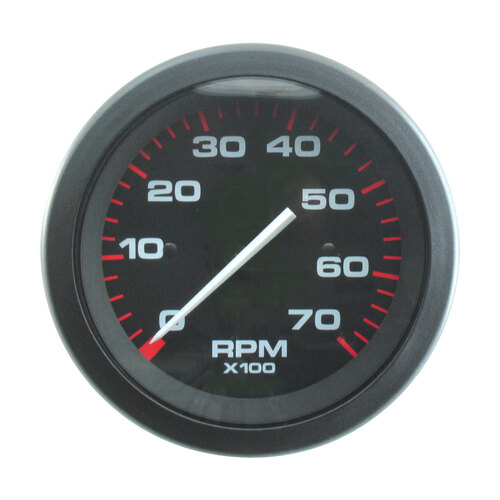

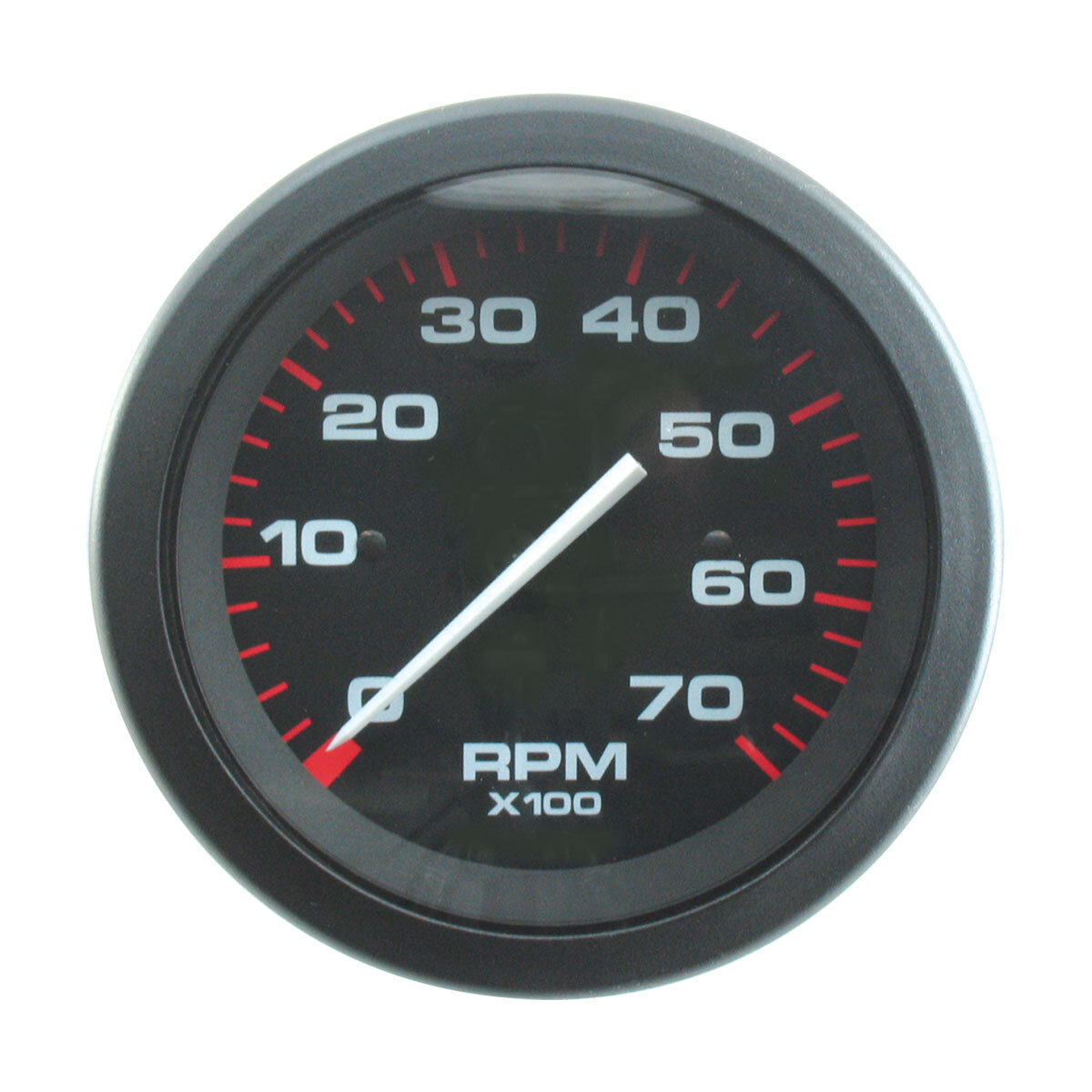

112278	Tacho 7000 RPM inboard & outboard	75	Coil & O/B alt
112282	Tacho 4000 RPM diesel alternator	75	Motor alternator

	Speedometer:
112284	Speedo kit 35 MPH	75	G included
112286	Speedo kit 50 MPH	75	G included
112288	Speedo kit 65 MPH	75	G included
	Kits include 20' of pitot hose

	Water:
112294	Water temperature 120ºF - 240ºF	50	D
112296	Water Pressure Kit 0 - 40 psi	50

	Oil pressure:
112298	Oil pressure 0 - 80 PSI	50	C
112300	Oil pressure 0 - 100 PSI	50	C

	Hourmeter:
112306	Hourmeter, 10,000 Hrs 10-32 volt	50	Not required

	Voltmeter:
112314	Voltmeter, 8 - 18 volt	50	Not required

	Ammeter:
112318	Ammeter 60 - 0 - 60	50	Not required

	Fuel:
112322	Fuel	50	F

	Trim:
112326	Evinrude®/Johnson® outboards	50	Engine manufacturer
112328	Mercury®/Mariner®, Cobra®, Volvo® DP & SX, Yamaha® O/B 2001 on	50	Engine manufacturer
