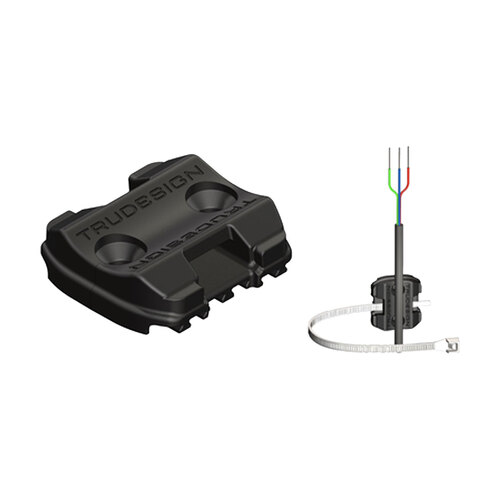

TruDesign Saddle Base 138580
Saddle Clips and Bases are designed for tidy routing of cables, wires, and plumbing hoses. The Base can either be screwed or glued to a wall or bulkhead providing a ‘mounting base’ which can be used on its own with a cable-tie for tying down cables and wires or have one of four sizes of Saddle Clips attached to it for supporting various diameters of plumbing hose. For increased security, a cable-tie can be threaded through the Base under and around the Saddle Clip and hose then done up, locking all components together. If plumbing layouts change in the future, simply remove the hose from the Saddle Clip, then pinch the arms of the Saddle Clip together to unclip and detach it from the Base. A different size of Saddle Clip can then be clicked on to the Base to accept a different diameter of plumbing hose. Base available in 1 size supporting 4 sizes of Saddle Clips which cover a range of varying hose diameters.
Code | Pack Qty | Length mm | Width mm | Depth mm | Mount Screws mm |
---|---|---|---|---|---|
138580 | 10 | 32 | 30 | 10 | 4 csk |
(B-138580)
SKU | B-138580 |
Barcode # | 9421007124420 |
Brand | TRUDESIGN |
Shipping Weight | 0.0700kg |
Shipping Width | 0.149m |
Shipping Height | 0.050m |
Shipping Length | 0.073m |
