Top Mount Controls - S Series 306857
Single 'S' control (single lever)
Single Function Controls
Top quality controls with polished S/S cover above dash, stainless steel hanger plates and classic styling, combined to produce controls suited to both exterior and interior installations. Suits inboards with hydraulic gearbox, stern drives and outboards.
Features
• One handle for gear, one handle for throttle
• Available in single lever or twin lever versions
• Each lever suitable for throttle or gear, with optional detents for forward/neutral/reverse and throttle
• Incorporates brake to prevent throttle creep
• Ideal for dual station installations, both controls move in unison
• Optional neutral safety switch for start in gear protection
Cables
Accepts universal 3300/33C series Cables, CC230, CC330, CC332, CCX632 and CCX633. Fittings for these Cables supplied with control.
Materials
• Marine quality polished S/S housing
• Stainless steel hanger plates
• Zinc alloy internal rocker arm
| BLA Code | Description |
|---|---|

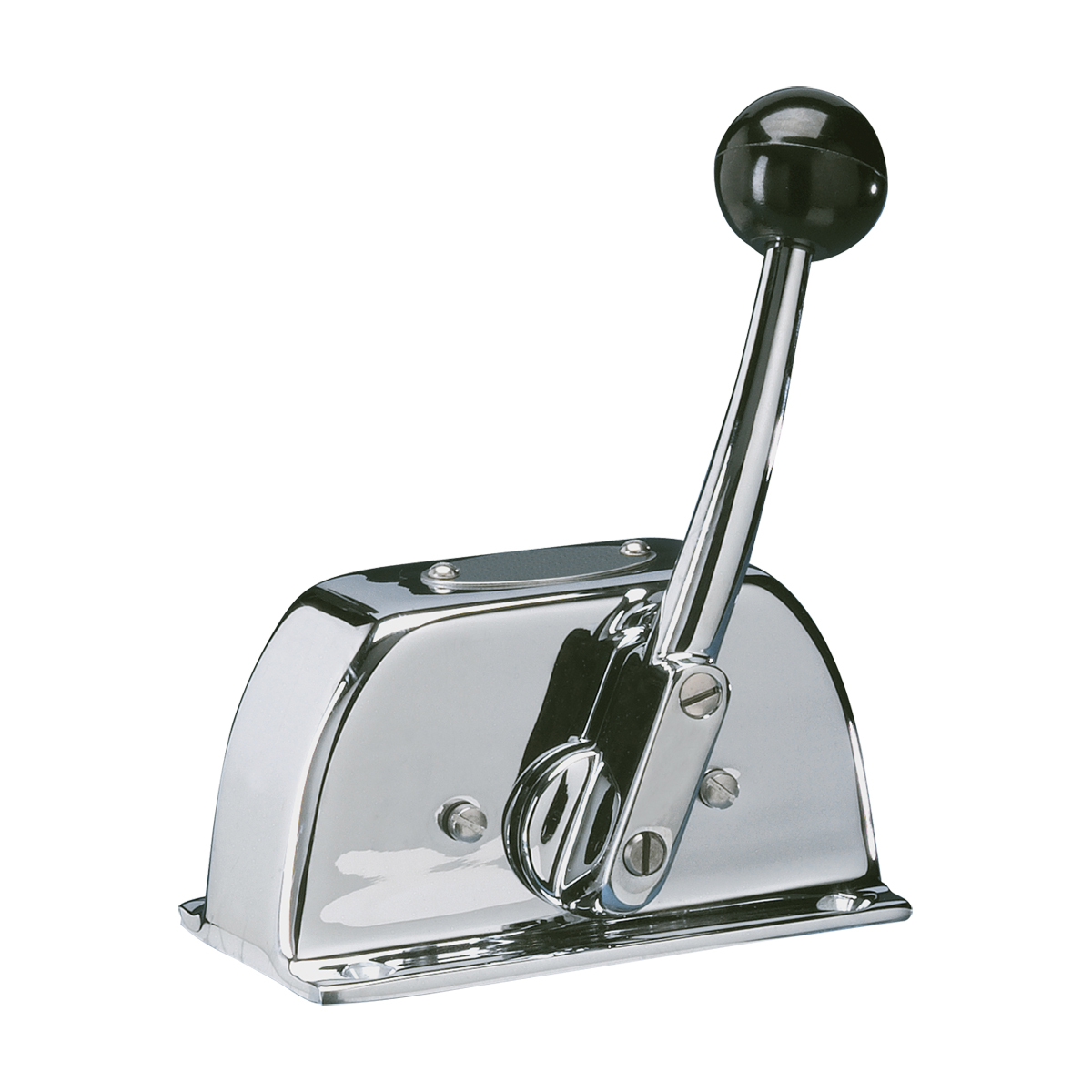

| 306857 | Single 'S' control (single lever) |

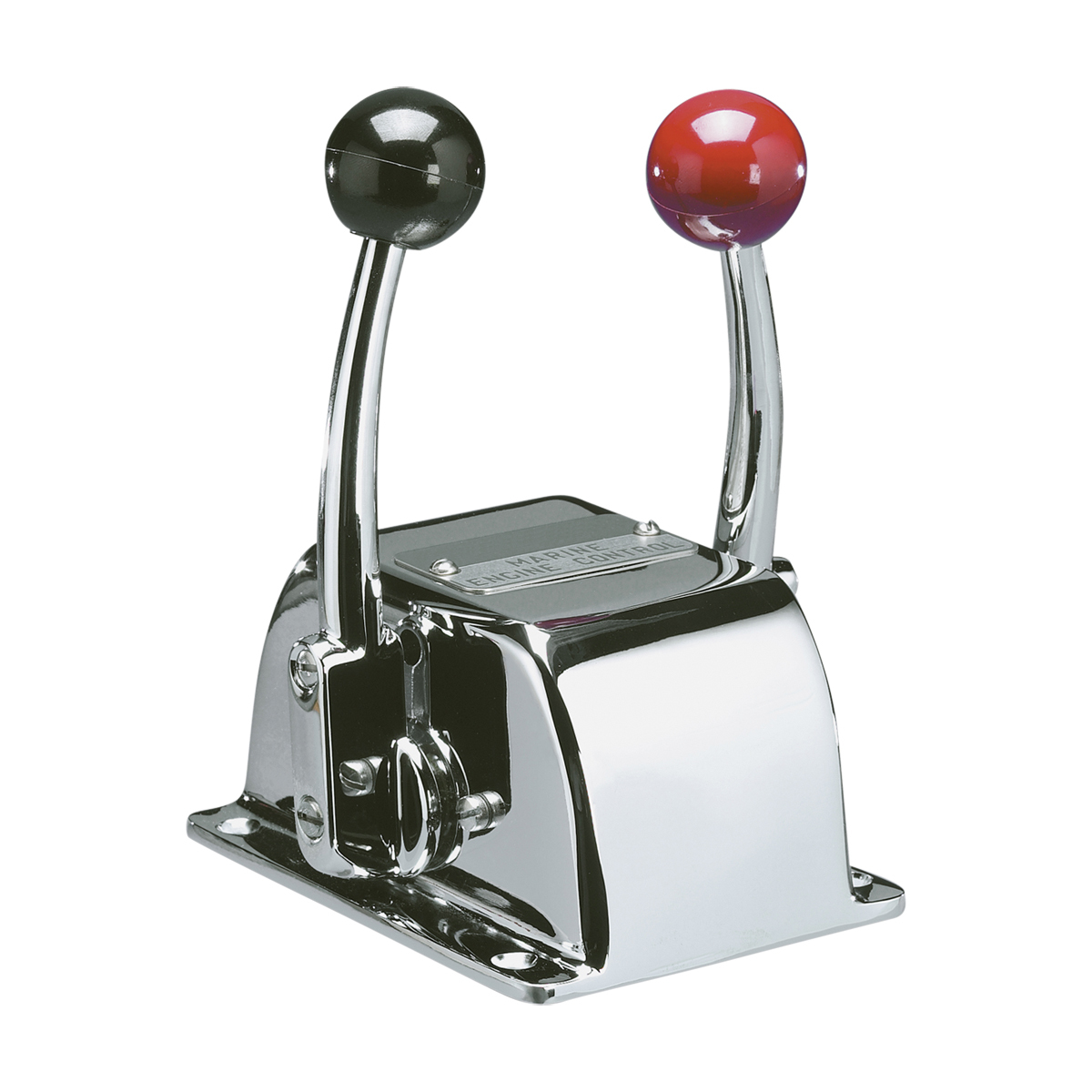

| 306858 | Twin 'S' control (twin lever) |
Accessories
306859 Optional gear detent kit (1 per engine)
306860 Optional friction (1 per engine)
306862 Optional neutral safety switch (1 per engine)
306863 Hardware bag, per lever (included with control)
306864 330/33C series dual station kit (1 per engine)
(B-P-306857)
| SKU | B-P-306857 |
