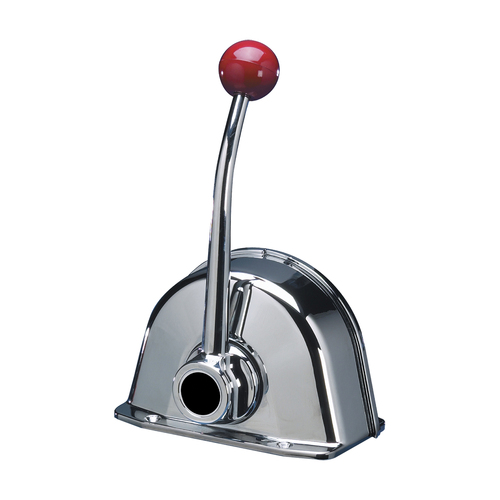

Top Mount Controls - MT-3 306700

Dual Function Controls
The MT-3 control has become the industry standard incorporating classic binnacle styling with dual function levers and a high quality of finish. Suitable for inboards with hydraulic gearboxes, outboards and stern drives. Not suitable for engines with heavy governor loads (i.e. Gardner diesel).

Features
• Each lever operates both shift and throttle (two levers for two engines)
• Easy distinctive action with positive detents in forward/neutral/reverse
• Handle pulls out to operate neutral throttle warm up
• Can be mounted left or right hand
• Can only shift at low RPM thereby protecting gearbox
• Neutral safety switch to ensure engine only starts when in neutral
• Dual station capability (requires exchangers – refer page 1238)
• Chrome housing gives quality look to your saloon, cabin or flybridge
• Three shift stroke adjustment positions
• Built-in friction drag helps prevent slippage and throttle creep while underway

Cables
Accepts universal 3300/33C series Cables, CC230, CC330, CC332, CCX632 and CCX633.

Single engine controls can be installed with 40/43 series Cables for heavy duty applications; fittings for these Cables to be ordered separately. Twin engine control cannot use 40/43 series Cables because of internal space limitations.

Materials
• Marine quality chrome plated die-cast zinc alloy housing
• Zinc alloy mechanism
• Stainless steel link plates

Accessories & Parts
306706 Conversion kit suit 40/43 series cable (single)
306708 Optional neutral safety switch
309924 Dual station kit suit 30/33 series
Service Parts Item No.
309985 Decal “FWD-REV” 2
309989 Knob red 7
309987 Knob black
309931 Handle 8
309782 Cable clamp 20
309925 Throttle arm 32
309860 Cable terminal 33
309935 Side plate 34
309990 Flat spring MT-3 50
309992 Hardware bag single 2, 3, 16, 17, 19
309993 Hardware bag twin 20, 33, 36, 37, 39, 40, 42
