Top Mount Controls - B700 301002
Dual lever standard control
Dual Function Controls
Available in single or dual lever, suitable for use with inboards with hydraulic gear boxes, outboards and stern drives.
Features
• Each lever operates both shift and throttle (two levers for two engines)
• Easy distinctive action with positive detent for shifts
• Adjustable throttle friction
• Push button disengagement of shift for neutral throttle warm up
• Can only shift at low RPM thereby protecting gearbox
• Optional trim/tilt control
• Dual station capability (requires exchangers – refer page 1238)
• Optional neutral safety switch to ensure engine start can only occur when in neutral
Cables
Accepts universal 3300/33C series Cables, CC230, CC330, CC332, CCX632 and CCX633.
Materials
• Die-cast zinc alloy frame
• Gold passivated steel link plates
• High impact ABS dress covers
| BLA Code | Description |
|---|---|
| 301002 | Dual lever standard control |
| 301003 | Dual lever control with trim and tilt |

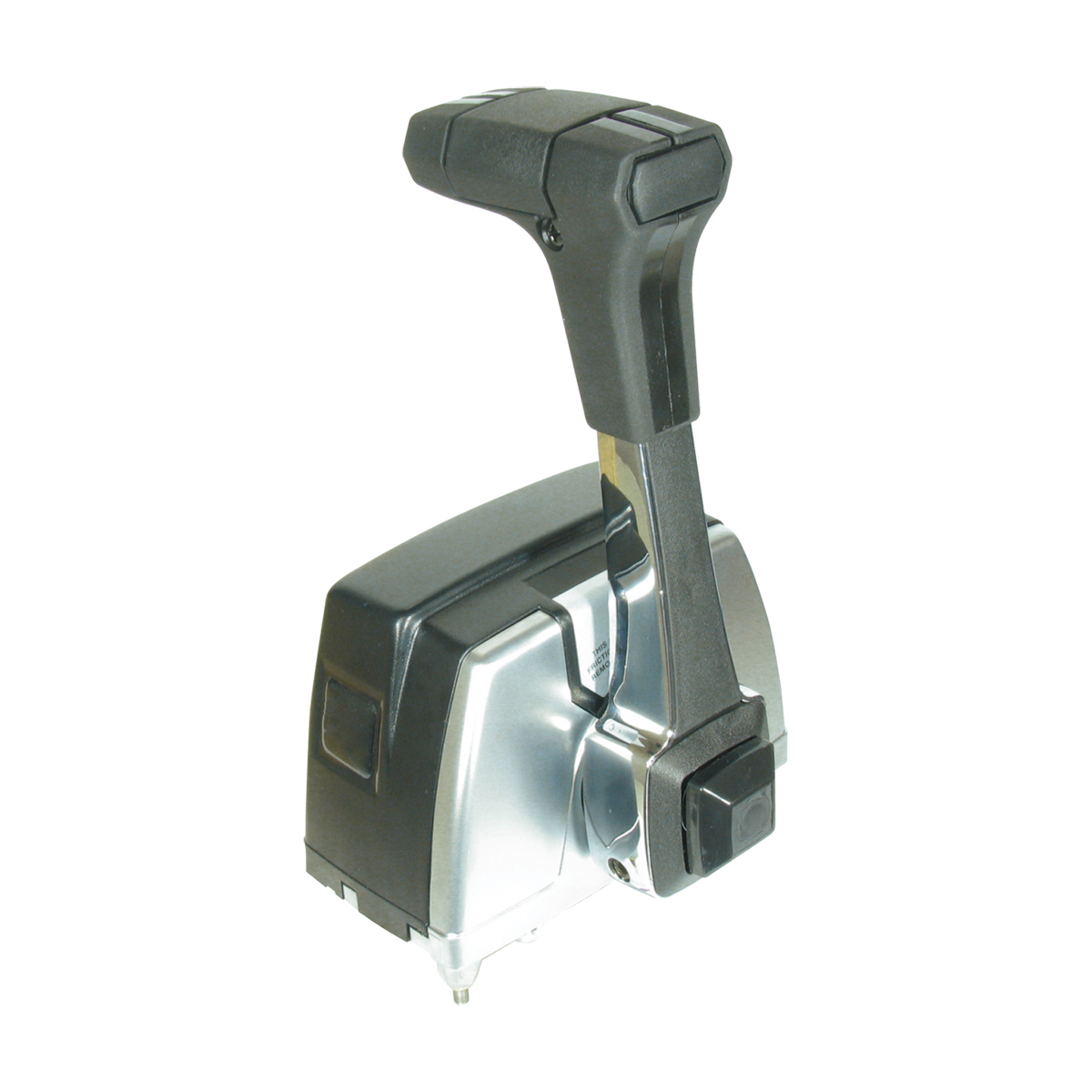

| 301006 | Single lever standard control |
| 301007 | Single lever control with trim and tilt |
Accessories
301025 Optional neutral safety switch
(B-P-301002)
| SKU | B-P-301002 |
