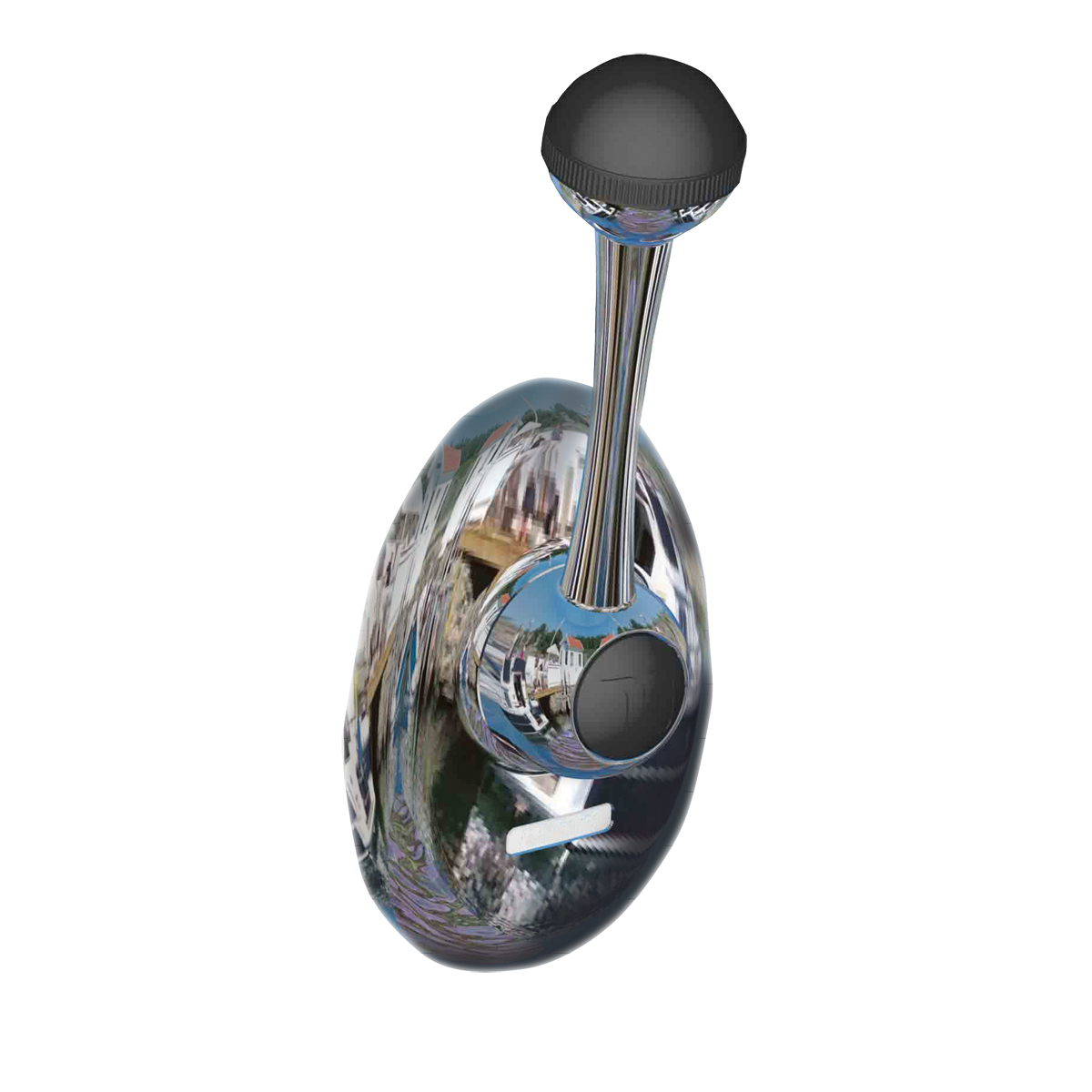

Side Mount Controls - CH2800 & CH2850 306782
CH2800 side mount control with knob switch
Dual Function Controls
A unique control offering optional three position twist switch for control of bow thruster or anchor winch. Can be mounted with or without cover plate. Suitable for inboards with hydraulic gearboxes, sail drives, stern drives and outboards.
Features
• Operates both shift and throttle with one handle
• Positive detents in forward/neutral/reverse
• Push button disengagement for neutral warm up
• Can be left or right hand mounted
• Can only shift at low RPM thereby protecting gearbox
• Dual station capability
• Adjustable throttle friction
Cables
Accepts universal 3300/33C series Cables, CC230, CC330, CC332, CCX632 and CCX633.
Materials
• Stainless steel lever arm, composite knob, die-cast zinc alloy mechanism
• Gold passivated steel linkages
| BLA Code | Description |
|---|---|
| 306782 | CH2800 side mount control with knob switch |
| 306784 | CH2850 side mount control without knob switch |
Accessories
301025 Optional neutral safety switch
(B-P-306782)
| SKU | B-P-306782 |
