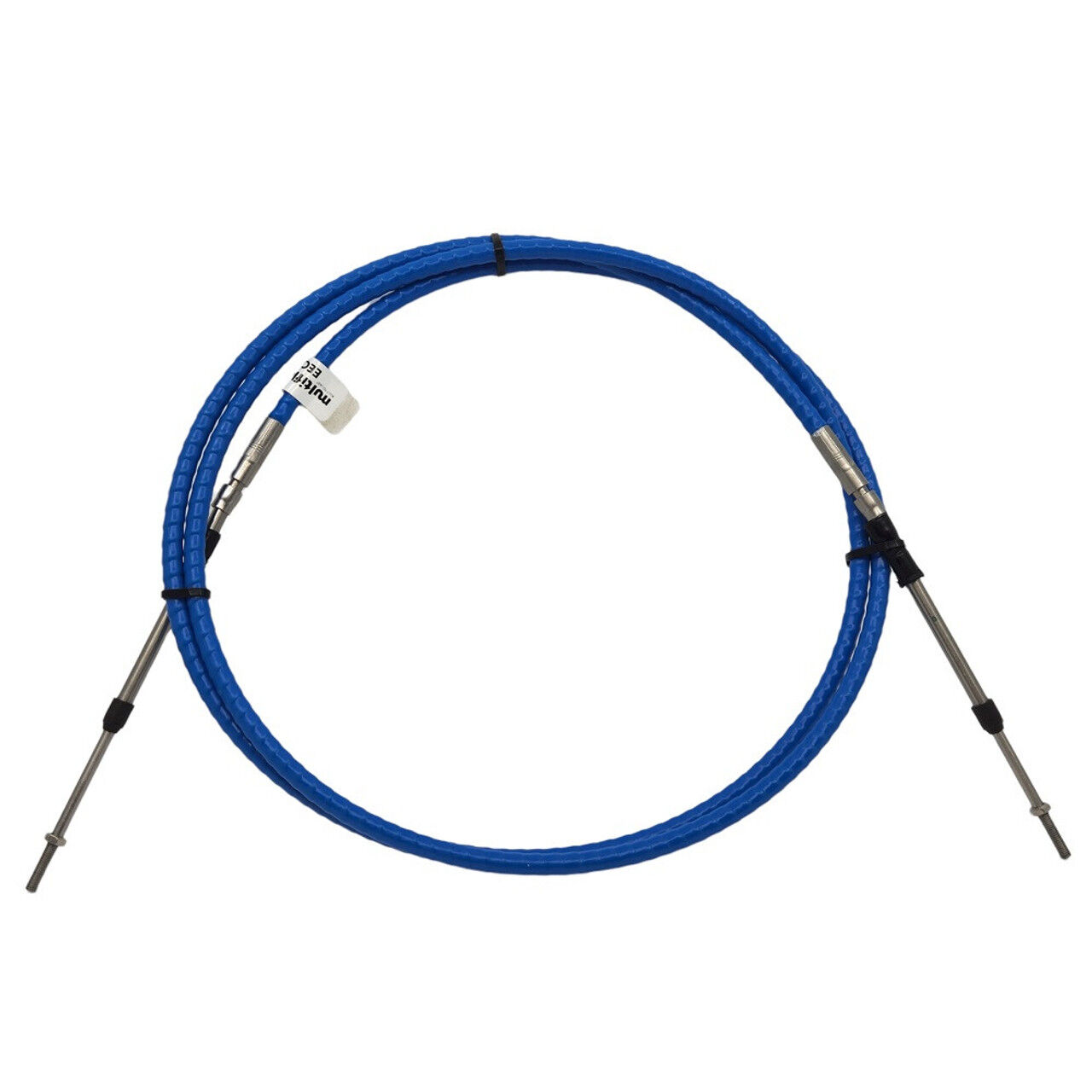

Mercury Gen 1 Control Cables - 21FT MF-EEC-005-21

Multiflex - Mercury Gen 1 Edge Control Cables - MF-EEC-005-XX

Engine Control Cables are used for Shift and Throttle application. Different designs of Engine Control Cables are used depending on the engine type and installation.

Suitability:

• For Mercury® and Mercruiser® engines
• Compatible with Seastar Solutions® part number CCX179 and Ultraflex® part number MACH5
• Applications - Mercury® / Mercruiser® / Mariner® / Over 50

Edge Series Control Cable:

• Travel: 95 mm
• Conduit: 8.6 mm
• Inner: 2.75 (coated inner)

Features:
Special Edge Conduit

• Unique design of Conduit provides structural integrity and a tighter minimum bend radius.

Improved Efficiency

• Edge cables provide significantly greater efficiency due to use of low-friction materials and construction.

Minimal Backlash

• Edge cables are built allowing optimum gap between inner core and conduit, resulting in significantly minimal backlash.

Less Friction Wiper Seal

• The wiper seals are made from a polyurethane impregnated with lifetime lubricant to minimise operating friction.

Cable Bend Radius

• Edge Cable has a minimum bend radius of 4 inches. However in use keep the bend radius as large as possible and the degree of bend to a minimum for optimal performance.
• The above features translates into improved efficiency with reduced operator effort when EDGE cables are used.
