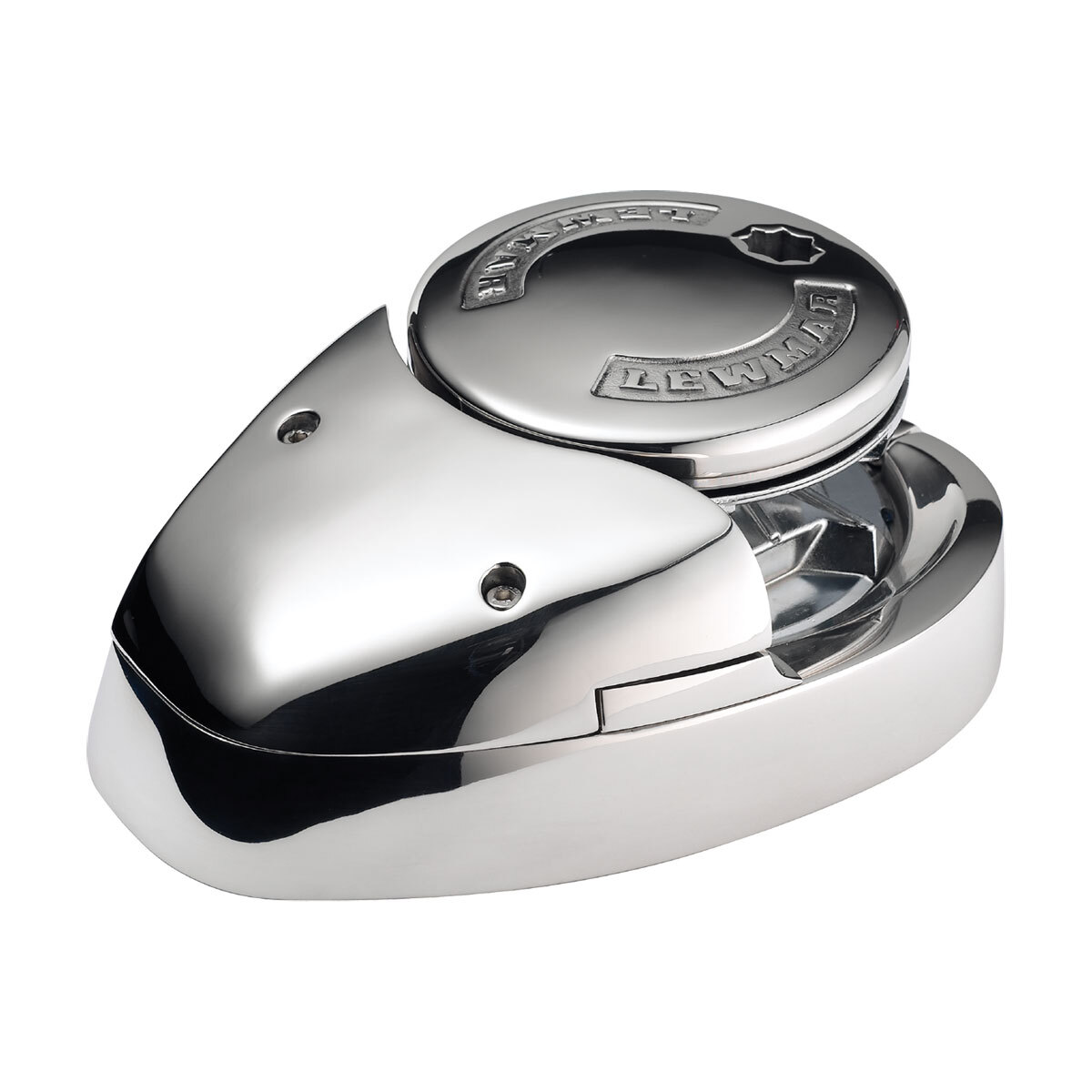

Lewmar Vertical Anchor Windlass - V4 154364
V4 Gypsy Only Watts 1600 12v
The V4 vertical windlass Features an industry leading external deck unit manufactured from precision cast 316 grade stainless steel with a robust drive train. The V4 is available with 10mm or 13mm rope/chain gypsy which also suit either 16mm or 18mm to 21mm three strand or eight plait medium lay nylon rope. Available as gypsy only or gypsy with capstan drum in either 12 volt or 24 volt models.
Features
• Cast 316 grade stainless steel external unit
• Dual direction motor
• Combination rope/chain gypsy
• Cone clutch for easy release
• Digital chain counter ready
• For boats 13m to 18m
BLA Code | Model | Watts | VoltsStd | Chain Stdmm | Rope mm | Max Pull kg | Work Load kg | Max Chain Speed m/min | Weight kg | Boat Size m |
---|---|---|---|---|---|---|---|---|---|---|
154364 | V4 Gypsy Only | 1600 | 12 | 13 | 18-21 | 1250 | 313 | 25 | 29 | 14-18 |
154365 | V4 Gypsy Only | 2000 | 24 | 10 | 16 | 1500 | 375 | 27 | 29 | 14-18 |
154367 | V4 Gypsy Only | 2000 | 24 | 13 | 18-21 | 1500 | 375 | 27 | 29 | 14-18 |
154368 | V4 Gypsy Drum | 1600 | 12 | 10 | 16 | 1250 | 313 | 25 | 36 | 14-18 |
154370 | V4 Gypsy Drum | 1600 | 12 | 13 | 18-21 | 1250 | 313 | 25 | 36 | 14-18 |
154371 | V4 Gypsy Drum | 2000 | 24 | 10 | 16 | 1500 | 375 | 27 | 36 | 14-18 |
154373 | V4 Gypsy Drum | 2000 | 24 | 13 | 18-21 | 1500 | 375 | 27 | 36 | 14-18 |
Standard Inclusions
154505 Solenoid dual suit V4 12V
154508 Solenoid dual suit V4 24V
154486 Guarded remote up/down rocker switch
154518 Circuit breaker panel mount 110A*
154522 Circuit breaker panel mount 150A*
*Model dependent
Accessories
154466 Grey down foot switch with closed cover
154468 Grey up foot switch with closed cover
154470 Stainless steel down foot switch with closed cover
154472 Stainless steel up foot switch with closed cover
154544 Digital chain counter – dash
154545 Digital wireless chain counter & winch control – dash
154546 Digital chain counter & winch control – dash
154548 Wireless chain counter & digital winch control – hand
154572 Gypsy V4/5 with 10mm
154574 Gypsy V4/5 13mm
N.B. Boat size recommendation is for an average boat under average conditions and is a guide only. For information on V Series Windlasses to suit larger boats please contact BLA on 1300 252 725.
(B-P-154364)
