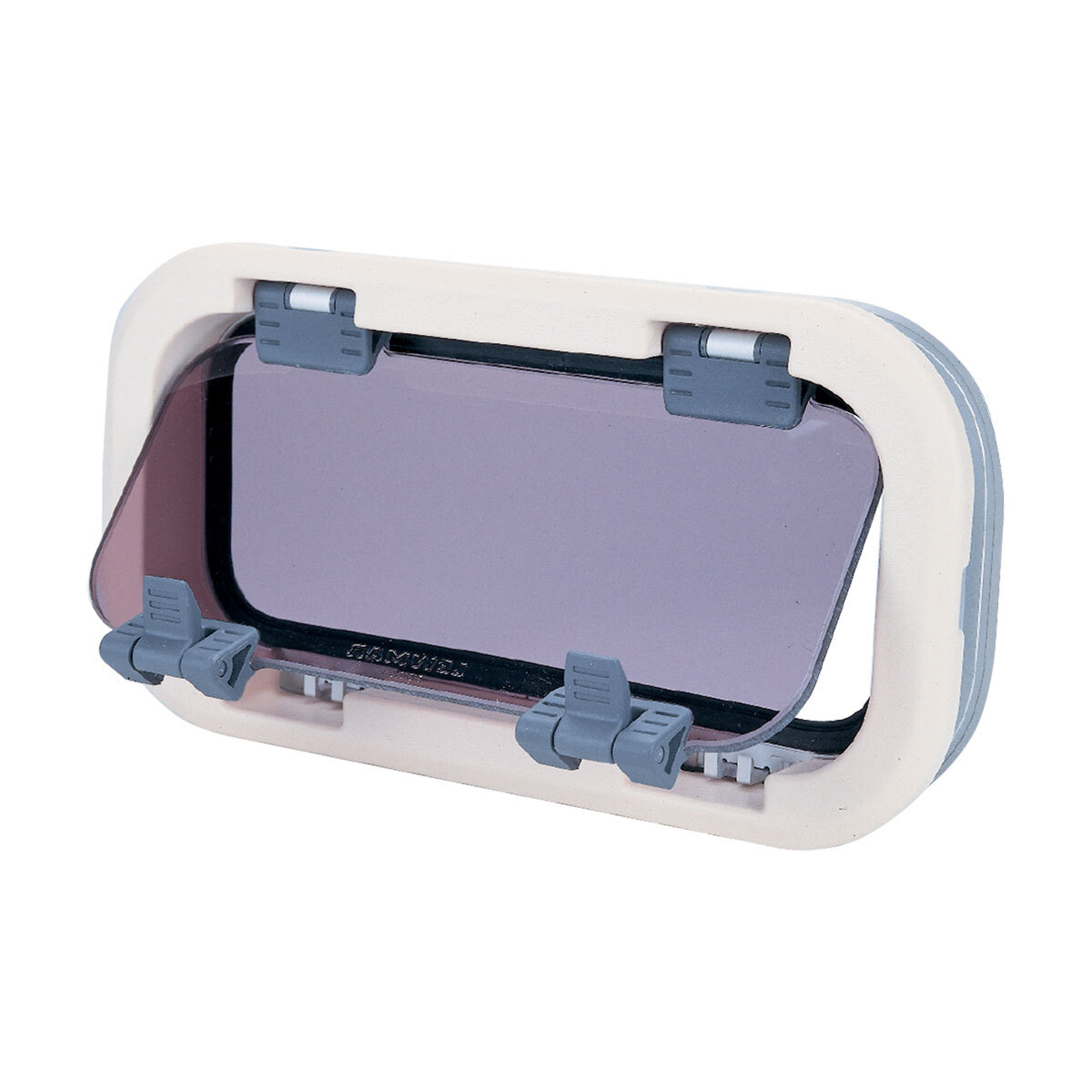

Lewmar Portlight - Standard Size 0 171020
The Standard Portlight sets the benchmark and is used in many of the world’s production sail and power boats. The ease of installation and reliable finish make it popular for fitting into production boats, one off boat builds or as an addition or replacement in an existing boat.
Features
• Industry setting standard
• Aluminium outside frame, clean styling
• Handles and hinges are fitted to the edge of the lens to allow clear visibility
• Easily fitted by clamping cabin sides between inner and outer frame provided ABS plastic trim and insect screen available in white or ivory (no insect screen on 4R/4L)
• Friction hinges hold the window open
• CE Approved for Area 2A
• Also available in fixed version
N.B. Standard portlights are also available in fixed versions.
| Code | Size | Version | TrimColour | AcrylicColour | OutsideX x YL x W mm | Cut OutX1 x Y1L x W mm | RadiiR mm | RadiiR1 mm | HeightZ mm | Acrylic mm | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 171020 | 0 | Opening | White | Grey | 176 x 323 | 156 x 303 | 62 | 52 | 4 | 6 | ||||||||||
| 171021 | 0 | Opening | Ivory | Grey | 176 x 323 | 156 x 303 | 62 | 52 | 4 | 6 | ||||||||||
| 171022 | 0 | Opening | Ivory | Clear | 176 x 323 | 156 x 303 | 62 | 52 | 4 | 6 | ||||||||||
| 171024 | 1 | Opening | White | Grey | 191 x 367 | 171 x 347 | 62 | 52 | 4 | 6 | ||||||||||
| 171026 | 1 | Opening | Ivory | Grey | 191 x 367 | 171 x 347 | 62 | 52 | 4 | 6 | ||||||||||
| 171032 | 1RE | Opening | Ivory | Grey | 191 x 367 | 171 x 347 | 95.5 | 85.5 | 4 | 8 | ||||||||||
| 171034 | 2 | Opening | White | Grey | 176 x 425 | 156 x 405 | 62 | 52 | 4 | 8 | ||||||||||
| 171036 | 2 | Opening | Ivory | Grey | 176 x 425 | 156 x 405 | 62 | 52 | 4 | 8 | ||||||||||
| 171037 | 2 | Opening | Ivory | Clear | 176 x 425 | 156 x 405 | 62 | 52 | 4 | 8 | ||||||||||
| 171038 | 3 | Opening | White | Grey | 191 x 449 | 171 x 429 | 62 | 52 | 4 | 10 | ||||||||||
| 171040 | 4 | Opening | White | Grey | 191 x 646 | 171 x 626 | 62 | 52 | 4 | 8 | ||||||||||
| 171041 | 4 | Opening | Ivory | Grey | 191 x 646 | 171 x 626 | 62 | 52 | 4 | 8 | ||||||||||
| 171048 | 5 | Opening | White | Grey | 264 x 449 | 244 x 429 | 62 | 52 | 4 | 10 | ||||||||||
(B-P-171020)
| SKU | B-P-171020 |
