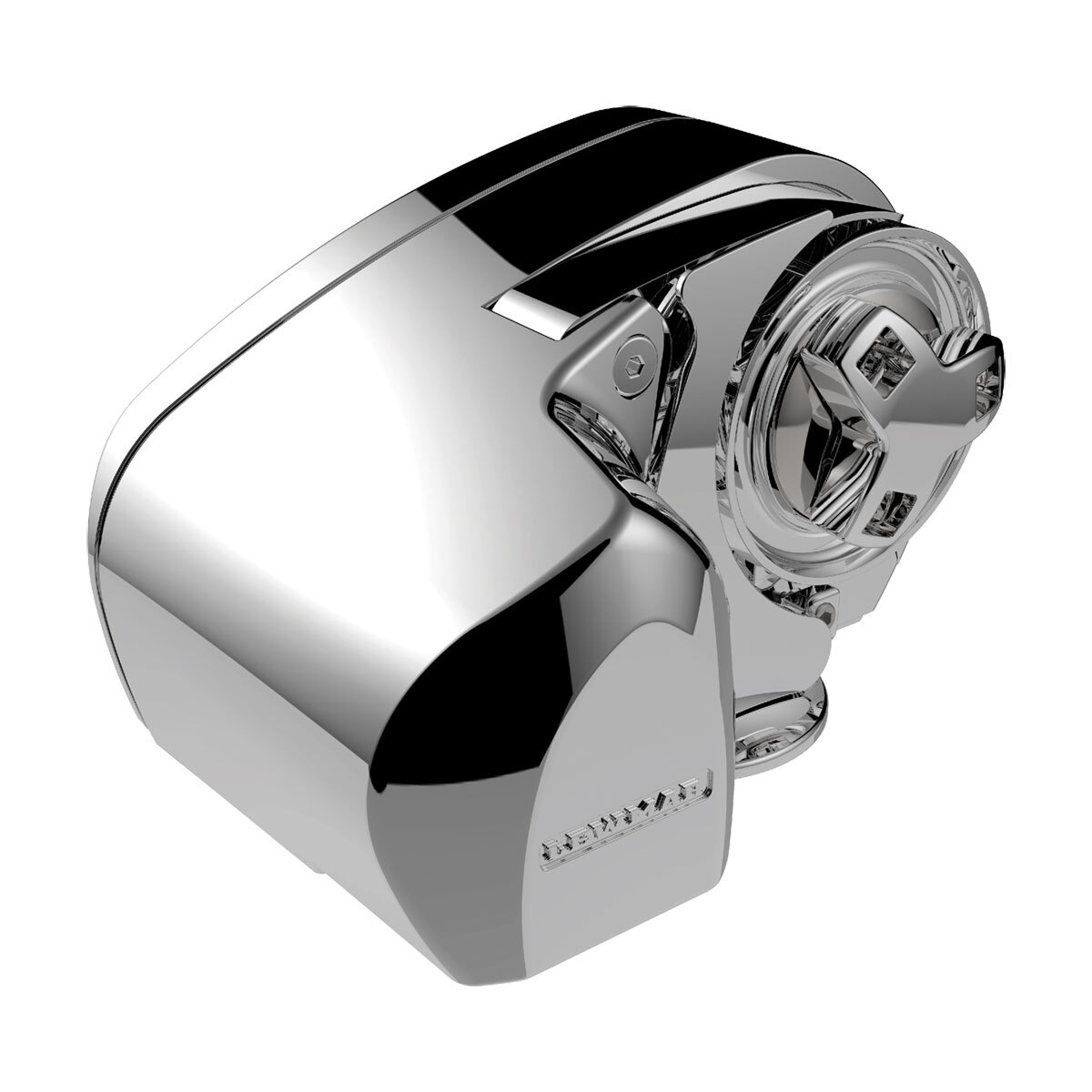

Lewmar Horizontal Anchor Windlass - Pro-Series 154380
Pro-Series 700 Watts 500
Praised around the world by boaters and professionals alike, the horizontal Pro-Series 700 and 1000 windlasses are outstanding examples of Lewmar’s commitment to providing quality products for boats ranging in length from 6m to 11.5m (20ft to 38ft). The range Features an external housing manufactured from 100% 316 grade stainless steel creating an incredibly strong and durable anchoring system impervious to the elements. Each winch is supplied as a complete kit ready for installation and includes base gasket, fast mount studs, installation wrench, circuit breaker, dual direction solenoid and panel mount up/down rocker switch. Also included is a combination rope/chain gypsy with the ability to accept 6mm, 7mm (Pro-Series 700), and 8mm (Pro-Series 1000) short link chain together with 12mm (Pro-Series 700), and 14mm to 16mm (Pro-Series 1000) medium lay three strand or eight plait nylon rope (12mm and 16mm only). Operation is via a simple push button control and includes a built-in manual emergency recovery system using included handle/spanner or a 1/2″ socket wrench (not included).
Features
• Powerful motor for fast line retrieval
• Manual emergency recovery system (included)
• Durable 316 grade stainless steel construction
• Stainless steel control arm and stripper for strength
• Simple above deck installation
• For boats 6m to 11.5m
• Automatic freefall conversion kit available (154398)
• 5 year warranty
| Code | Model | Watts | Volts Std | Chain Std mm | Rope mm | Max Pull kg | Work Load kg | Max Chain Speed m/min | Weight kg | Boat Size m | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 154380 | Pro-Series 700 | 500 | 12 | 6/7 | 12 | 320 | 79 | 32 | 8.5 | 6-8.5 | ||||||||||
| 154382 | Pro-Series 1000 | 700 | 12 | 8 | 14-16 | 454 | 114 | 32 | 9.5 | 6-11.5 | ||||||||||
| 154388 | Pro-Fish 700 | 500 | 12 | 6/7 | 12 | 320 | 79 | 32 | 8.5 | 6-8.5 | ||||||||||
| 154390 | Pro-Fish 1000 | 700 | 12 | 8 | 14-16 | 454 | 114 | 32 | 9.5 | 6-11.5 |
Standard Inclusions
154486 Guarded remote up/down rocker switch
154504 Dual solenoid pack
154512 Circuit breaker panel mount 50A to suit 154380
154514 Circuit breaker panel mount 70A to suit 154382
SP15156248 Emergency recovery handle
SP15156280 Rope guard upgrade kit (included in 2013+ models)
Accessories
154398 Automatic freefall conversion kit
154466 Grey down foot switch with closed cover
154468 Grey up foot switch with closed cover
154470 Stainless steel down foot switch with closed cover
154472 Stainless steel up foot switch with closed cover
SP15156280 Rope guard upgrade kit (2007-2017 models)
SP15156224 Replacement motor 700w
N.B. Boat size recommendation is for an average boat under average conditions and is a guide only.
(B-P-154380)
| SKU | B-P-154380 |
