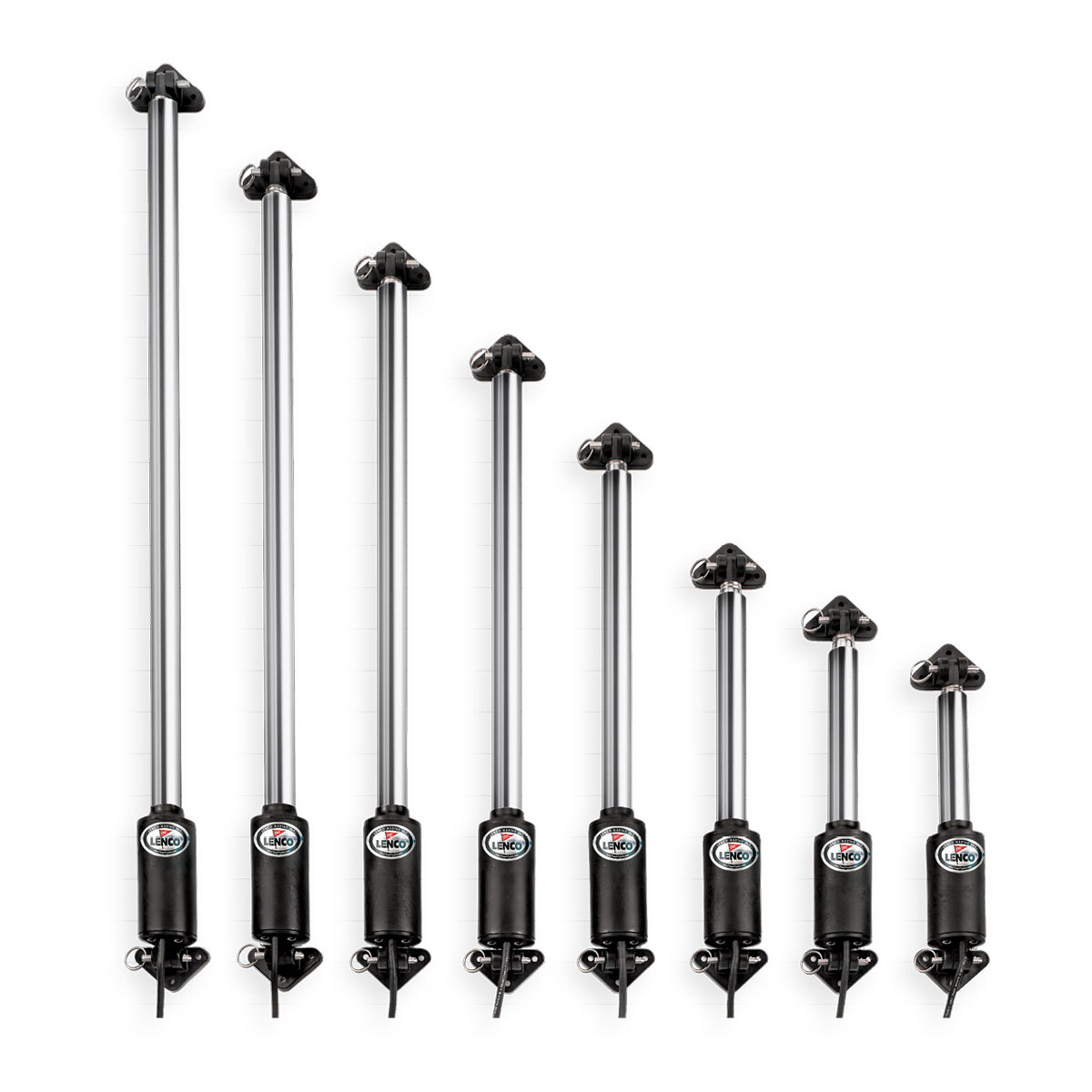

Lenco Electric Hatch Lifts - 12 & 24 Volt Models 312554
Retracted 508 Extended 712 Stroke 200mm
12 Intergrated harness. Inline motor design delivers over 226 kgs of force. Includes high impact, corrosion proof mounting brackets and stainless steel pull pins.
Features
•Clear anodised aluminium tubing
•200mm-610mm Stroke, other sizes and voltages available on request
•Complete with 61cm lead and Deutsch plug
•Clutchless ball screw design will not drift, never binds and runs in sync on dual actuator lift applications
•Inline motor design delivers over 500 lbs (227kg) of force
•Water resistant and made entirely of non-corrosive materials
•Ball screw spins freely when hatch is fully opened or closed eliminating limit switches and burned out motors
•High impact, corrosion proof mounting brackets with stainless steel pull pins
•Powdered metal gears for strength and precision
•Stainless steel ram locks in any position
•CE-certified, ignition protected and ABYC compliant
| Code | Approx. L.O.A Retracted mm | Approx. L.O.A Extended mm | Approx. Stroke mm | |||
|---|---|---|---|---|---|---|
| 312554 | 508 | 712 | 200 | |||
| 312558 | 610 | 915 | 300 | |||
| 312562 | 737 | 1143 | 410 | |||
| 312566 | 838 | 1346 | 510 | |||
| 312570 | 940 | 1549 | 610 |
Accessories
312590 Stainless Steel Pull Pin
312592 Stainless Steel Slide Bracket
N.B. L.O.A = Length Overall, measuring from top bracket to bottom bracket 20 amp circuit breaker & 20 amp rated switch required.
(B-P-312554)
| SKU | B-P-312554 |
