Lenco Edge Mount Electric Trim Tab Kit 12" x 12" LED Switch 312776

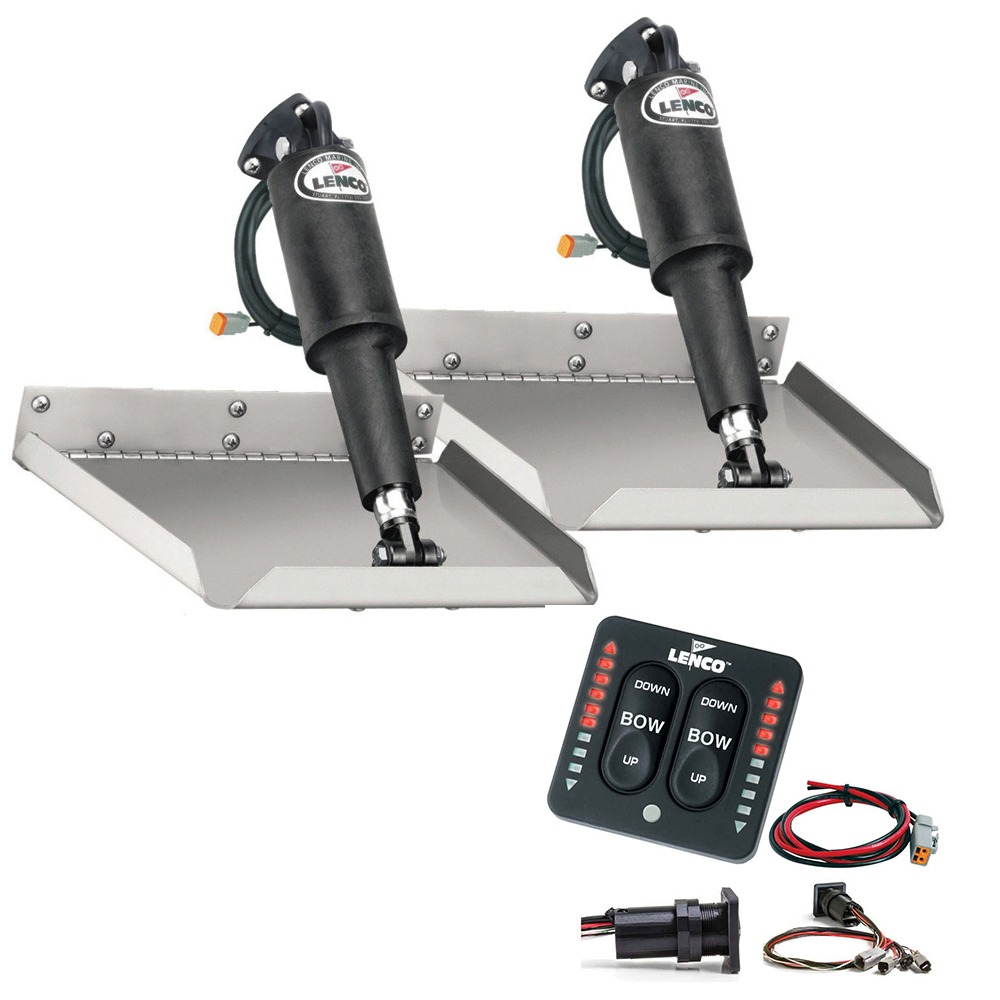

Complete Edge Mount Trim Kit
Everything you need in one box! The Edge Mount trim tab kit with the added benefit of having the NEW integrated switch choice & power connector all included. Boat lengths 17’ (5.2 m) to 30’ (9.1 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 1” (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge & 1/8” (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal. Switch included.
Features
• Blades 12 Gauge stainless steel
• Switch kit Included
• Made in Stuart, Florida U.S.A.
• 2x 6.1m Actuator extension harness
• 2x Actuators with 1.8m harness
• 2x SS Blades with upper and lower mounting brackets
• 3 Year warranty
|
BLA CODE
|
BLADE SIZE L X W IN | SWITCH KIT INCLUDED | RECOMMENDED BOAT LENGTH M |
| 312756 | 12 x 12 | Double Rocker Switch | 5.1 - 9.1 |
| 312776 | 12 x 12 | LED Switch | 5.1 - 9.1 |
(B-P-312756)
| SKU | B-P-312756 |
| Brand | Lenco |
