ORB KIT Twin Station Nylon Hose - HF6010 293605
$197.00
RRP $269.90
SAVE $72.90 (27%)
In Stock (8
) - Ships in 2 days
Fittings
All Dometic SeaStar Manual Hydraulic steering systems utilise the same style of fittings for all applications. These are 9.5mm (3/8″) compression fittings which utilise a 14.3mm (9/16″) – 24 extra fine thread.
ORB Fittings
These fittings are made of corrosion resistant stainless steel and now thread into the cylinders/helms via Positionable O-ring hose ports. Fittings can be easily orientated in any direction to accommodate tube routing.
• Suits nylon/copper 3/8 hose

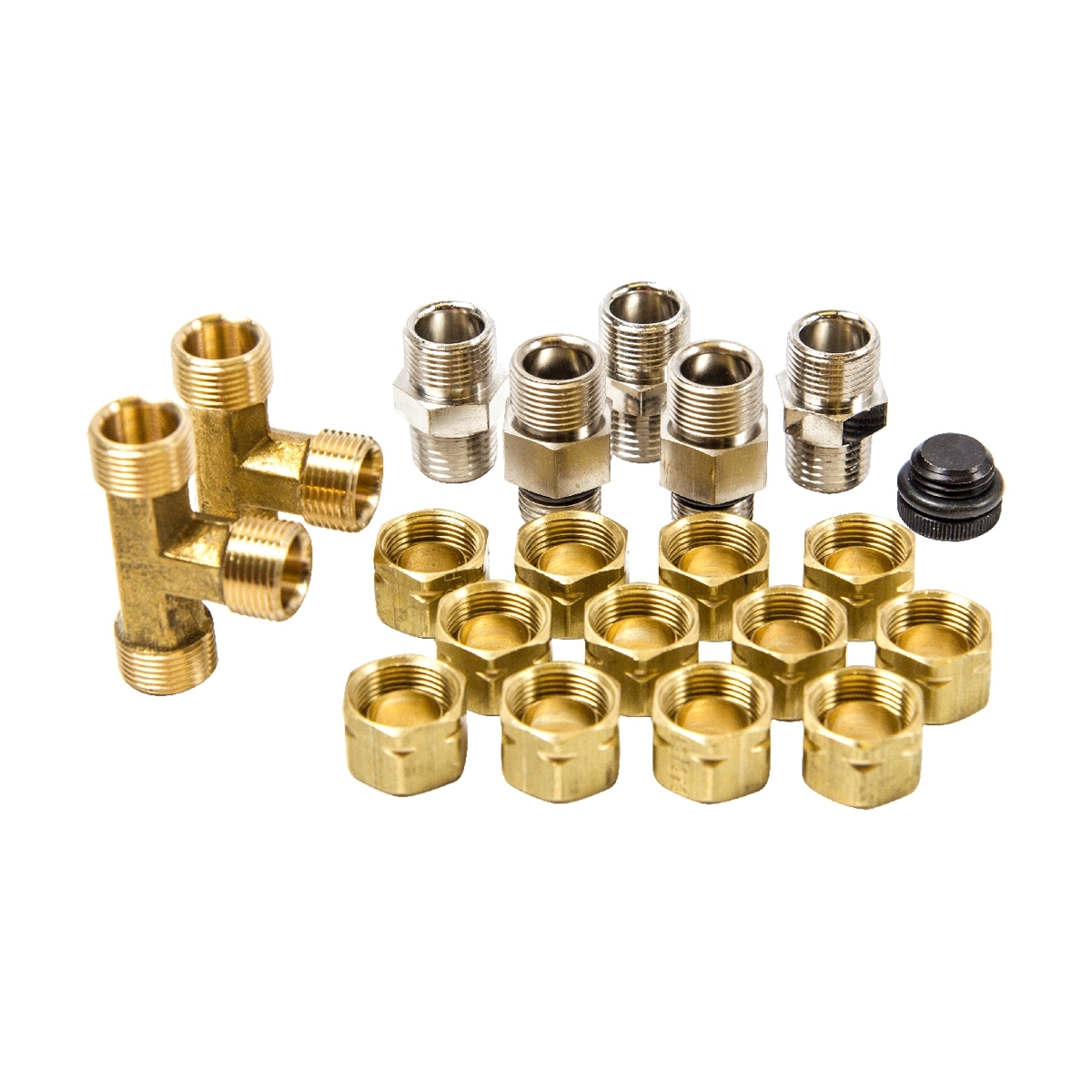

| Item No. | Description | Qty Per Kit |
|---|---|---|
| 1 | Tube nut 3⁄8" Ø | 12 |
| 2A | Connector 3⁄8" tube | 2 |
| 2B | Connector 3⁄8" tube | 3 |
| 3 | Tee Fitting 3 Ends - 3⁄8" tube | 2 |
| 4 | Non-Vented Filler Plug | 1 |
| A* | Tube Nut - 3⁄8" +Dia. | 2 |
| B* | 3⁄8" Elbow - 5 ORB | 2 |
N.B. * Sipplied with helm pump
(B-293605)
| SKU | B-293605 |
| Barcode # | 731957919113 |
| Brand | SEASTAR |
| Shipping Weight | 0.3100kg |
| Shipping Width | 0.213m |
| Shipping Height | 0.253m |
| Shipping Length | 0.131m |
