Jim Black® Ventilation Hatches 299 x 299 170710
299 x 299

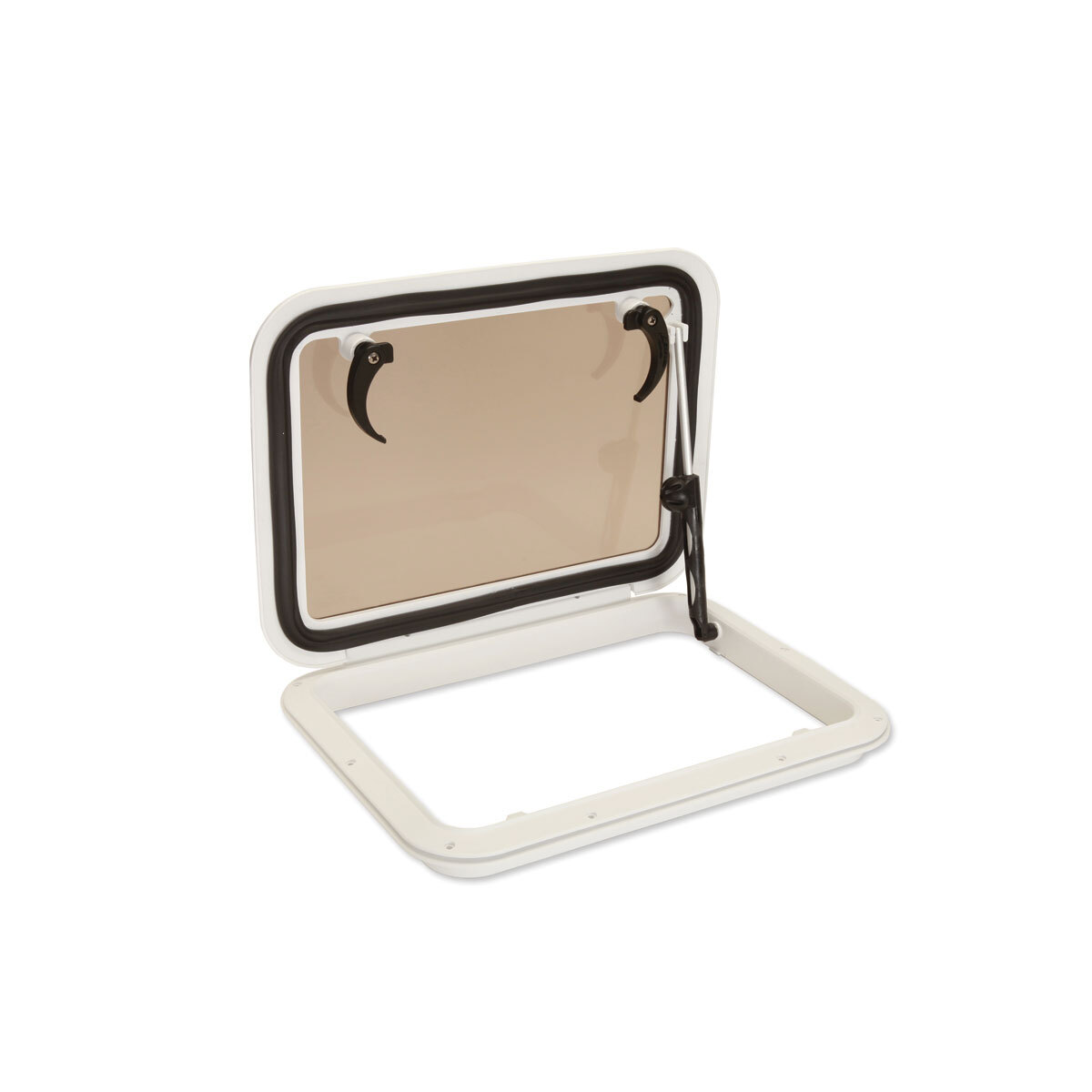

A range of low profile white ventilation hatches featuring high impact U.V. resistant Saralon resin moulded frames which resist warping and are impervious to harsh chemicals such as acetone. The 6mm light bronze finished tempered glass lens offers extreme strength and durability and is moulded into the frame to help protect against water intrusion and lens separation. Ventilation hatches are fitted with an adjustable strut with a friction locking knob, allowing the hatch to be held at the desired angle plus internal closing handles for security. The heavy duty hinge system and strut design also allows the hatch to be opened 180° for a lay-flat effect. The deck frame Features a hidden fastening design when closed and utilises stainless steel hardware where appropriate. All hatches have a 25mm internal flange and are supplied complete with matching trim ring with insect screens available separately.
Features
• U.V. stabilised Saralon resin moulded frames
• Chemical resistant
• 50mm hollow core seal
• 6mm tempered glass for strength and clarity
• Supplied with matching internal trim ring
• CE certified
| Code | Outside mm | Inside mm | Cut Outmm | Opening Angle | Insect Screen to Suit |
|---|---|---|---|---|---|
| 170710 | 299 x 299 | 232 x 232 | 258 x 258 | 180° | 170930 |
| 170712 | 381 x 521 | 315 x 442 | 343 x 470 | 180° | 170932 |
(B-P-170710)
| SKU | B-P-170710 |
