Isotherm ITC+ Systems - Air-Cooled 381538
150

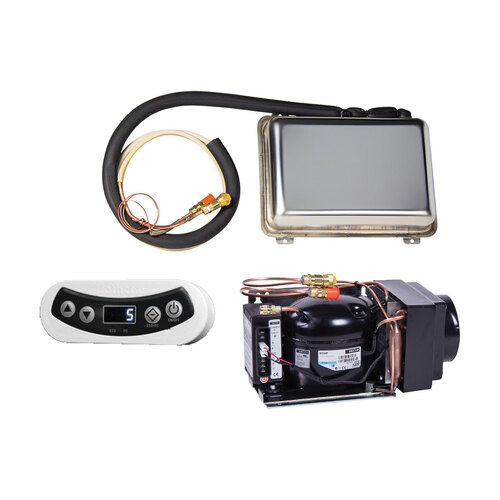

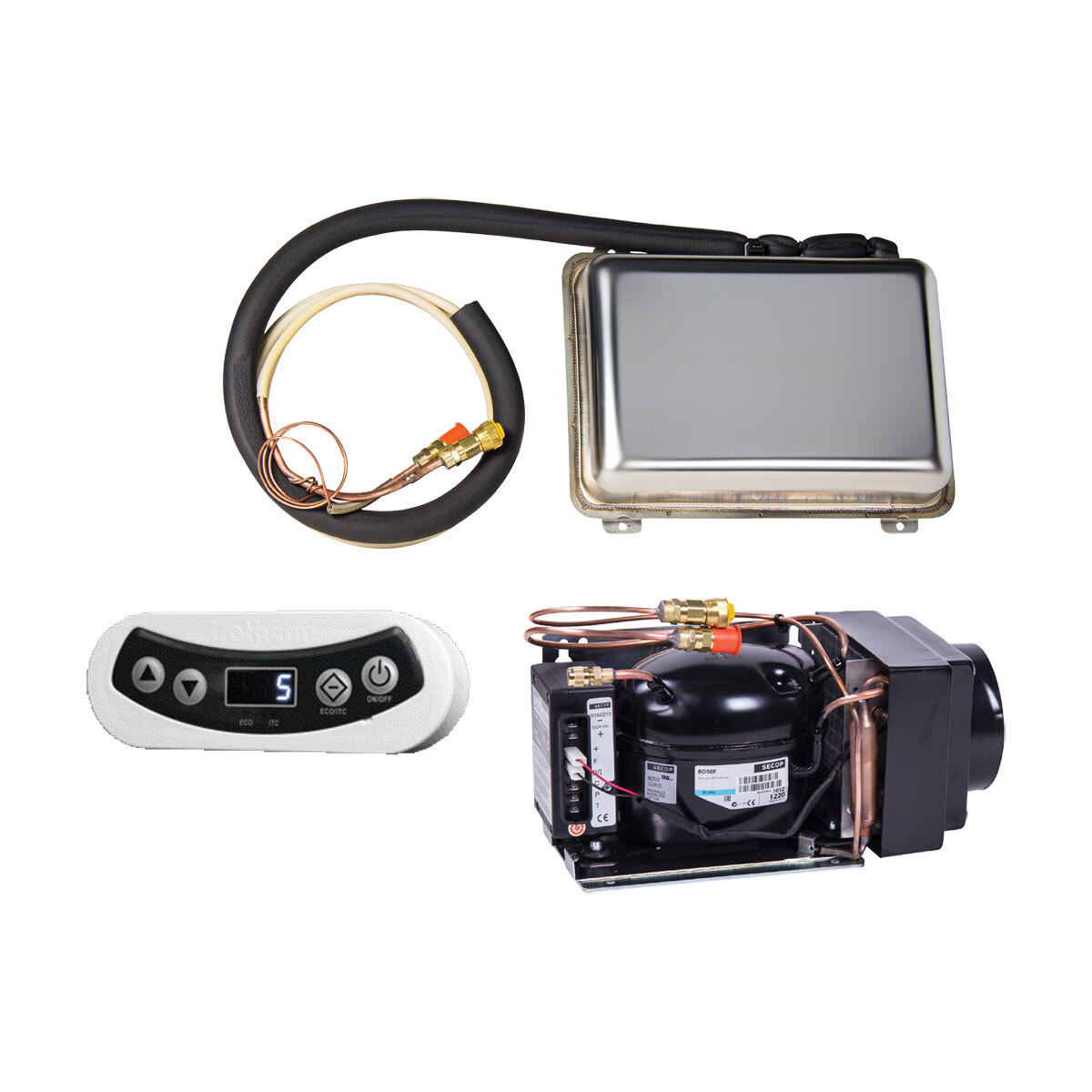

12/24 volt ITC+ controlled, air-cooled refrigeration unit suitable for mounting in new or existing cool boxes. Using the ITC logic, a stainless steel holding plate and air-cooled compressor it is ideal for when battery power is at a premium. The stainless steel holding plate, with an average holding temperature of -9°C, can be mounted at any angle high up in the cool box for convenience. It is important that the compressor compartment is well ventilated aiding the compressor to blow cool air through the condenser.
Features
• Air-cooled compressor for effective cooling
• ITC Display for control of the fridge/freezer
• ITC and ECO system Logic for power saving efficiencies
• Stainless steel holding plate for durability
| Code | Max. Box Volume Fridge L | Max. Box Volume Freezer L | Compressor Type | Compressor Unit Dim. H x W x L mm | Holding Plate Dim. H x W x D mm |
|---|---|---|---|---|---|
| 381534 | 100 | 35 | BD35F | 155 x 160 x 270 | 210 x 300 x 60 |
| 381538 | 150 | 50 | BD50F | 155 x 160 x 315 | 280 x 355 x 60 |
| 381540 | 200 | 65 | BD50F | 155 x 160 x 315 | 320 x 400 x 90 |
N.B. Running engine for 1/2 to 1 1/2 hours daily reduces current consumption by 50-90%. Reduce recommended box volume by 10-20% for tropical conditions.
(B-P-381534)
| SKU | B-P-381534 |
