Hi-Lo Seating System - Hi-Lo Pedestal Posts 183115
The Hi-Lo Seating System is a two position pedestal system that allows a boat seat to be used in a high position for fishing and a low position while the boat is underway. Simply remove the pedestal and place the seat mount directly into the base socket for low seating position, insert pedestal for high seating position.
The Hi-Lo System comprises of three pieces
• Pedestal seat mount
• Pedestal post
• Pedestal deck base
Pedestal Seat Mounts
• 360º rotation
• 3º reclined seating position
• Corrosion Resistant E-Cote plated
• Optional spring suspension ride
| Code | Spring | Pin Dia. mm |
|---|---|---|
| 183108 | No | 19 |
| 183110 | Yes | 19 |

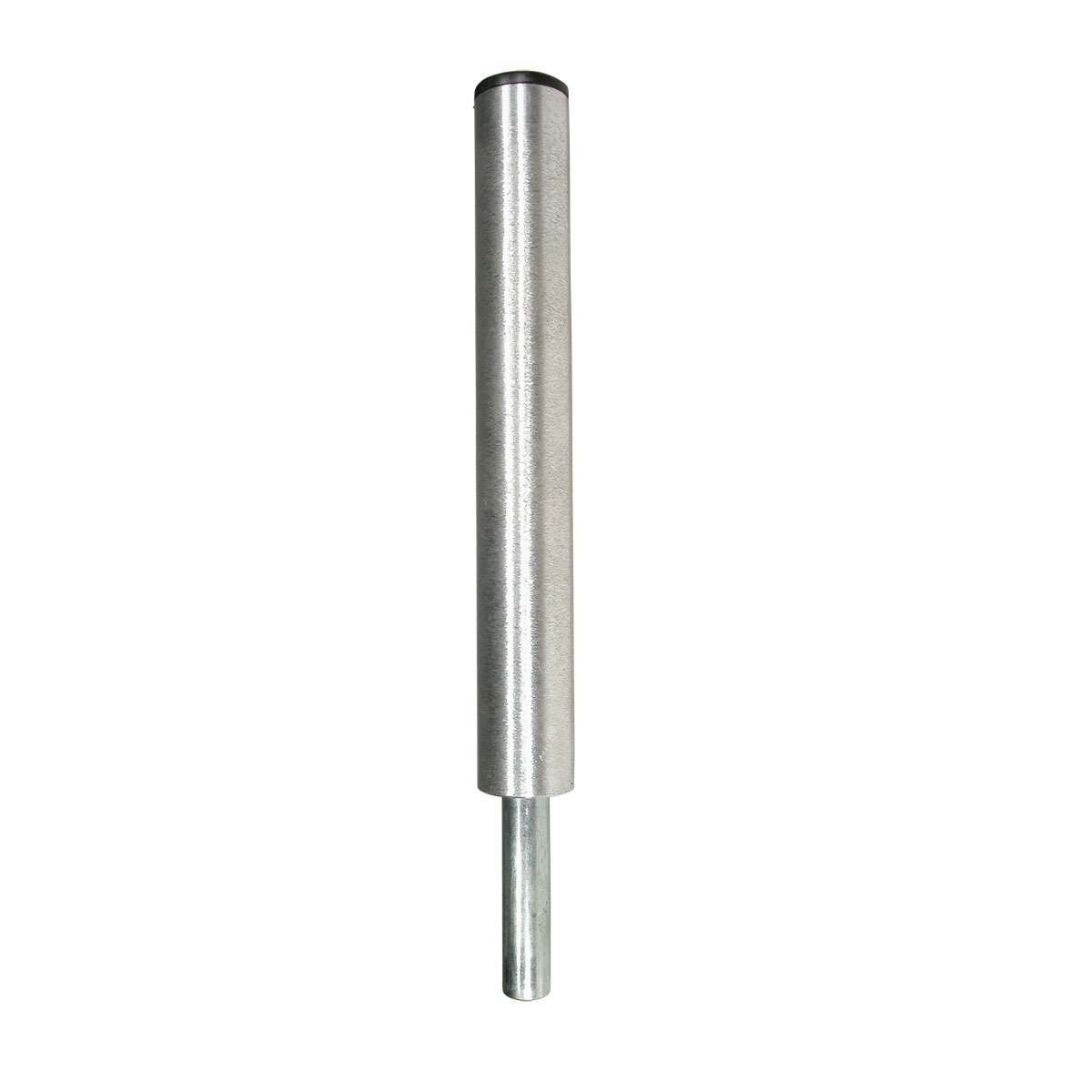

Hi-Lo Pedestal Posts
Nylon top bush for smooth, silent, lube free swivel operation, anodised aluminium tube, stainless steel pin. Available in fixed height or adjustable height.
| Code | Height mm | Tube Dia. mm | Pin Dia. mm |
|---|---|---|---|
| 183115 | 330 | 38 | 19 |
| 183117 | 380 | 38 | 19 |
| 183120 | 490-640 | 38 | 19 |
Hi-Lo Pedestal Deck Bases
• Stainless steel or anodised alloy construction
• Nylon bush for smooth, silent, lube free swivel operation
| Code | Material | Size mm | Intrusion mm | Mount Screws mm |
|---|---|---|---|---|
| 183123 | Stainless steel | 177 x 177 | 62 | 6 c/s |
| 183130 | Anodised alloy | 177 x 177 | 62 | 6 c/s |
(B-P-183115)
| SKU | B-P-183115 |
| Brand | BLA |
