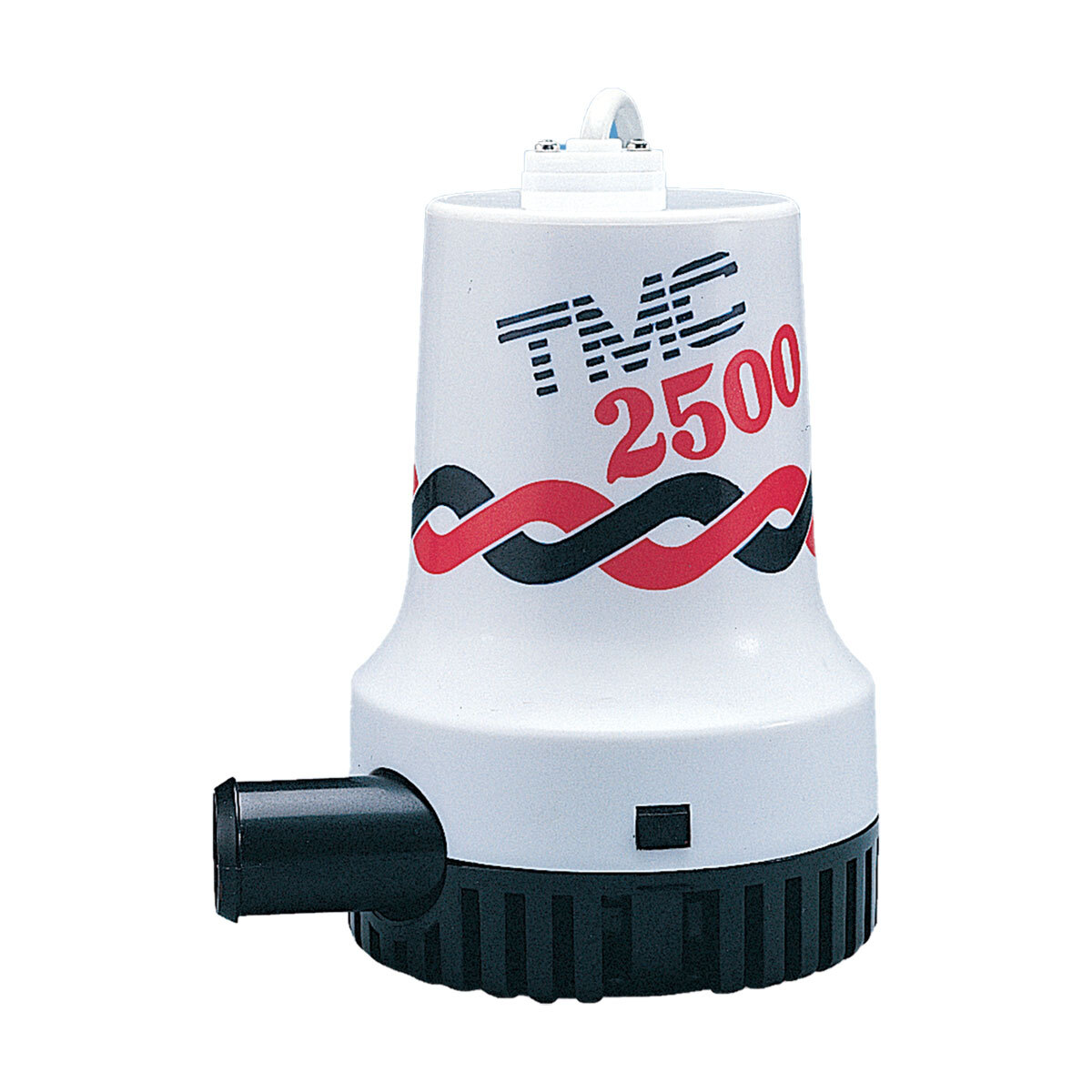

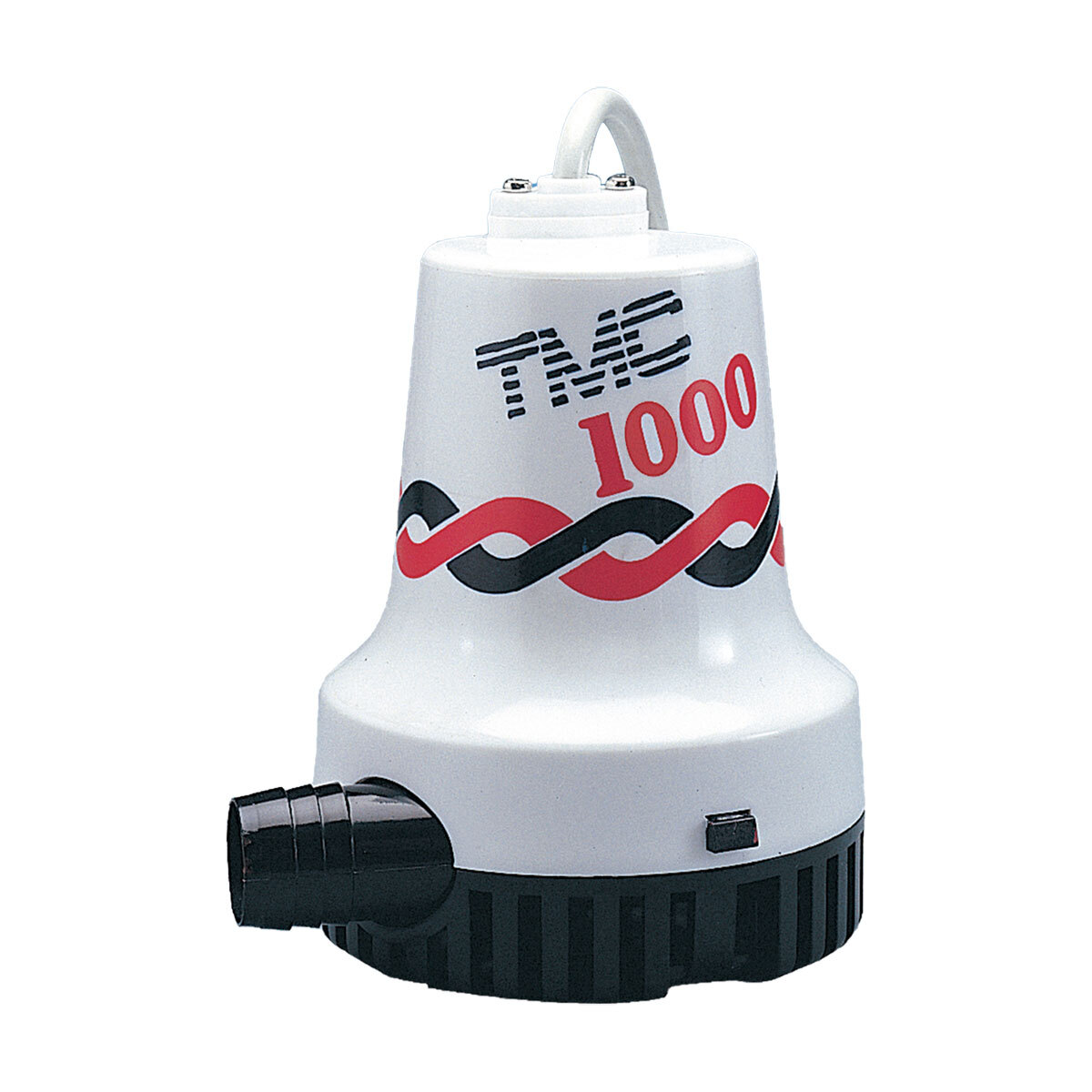

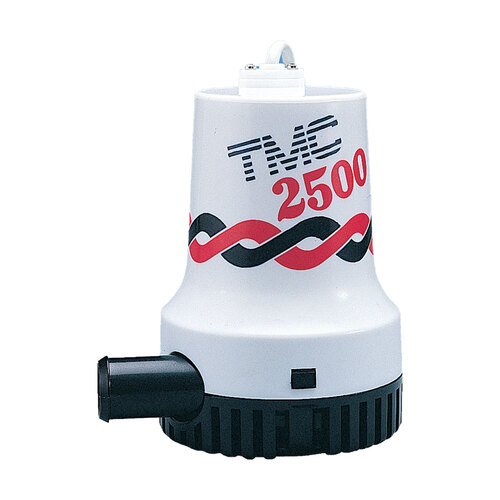

TMC Heavy Duty Electric Submersible Bilge Pumps 131608
190
$168.00
RRP $219.90
SAVE $51.90 (24%)
In Stock (22
) - Dispatches in 2
days
The highest quality submersible bilge pumps available from TMC. Aluminium motor enclosure base dissipates motor heat while the electrodeposition coating resists corrosion.
Features
• Permanent magnet motor
• Snap-on mount base strainer
• Two year limited warranty
• Every pump is water tested to ensure delivery head, voltage and amp draw are within Specifications
|
CODE
|
CAPACITY OPEN FLOW L/M | CAPACITY OPEN FLOW GPH | CAPACITY @1 HEAD L/M | CAPACITY @1 HEAD GPH | POWER V | POWER AMP | MAX HEAD M | BASE DIA MM | HEIGHT MM | OUTLET DIA MM |
| 131600 | 31.5 | 500 | 25 | 400 | 12 | 3.5 | 4 | 88 | 140 | 19 |
| 131602 | 63 | 1000 | 47 | 750 | 12 | 5.5 | 4 | 88 | 140 | 28 |
| 131603 | 94.5 | 1500 | 66 | 1050 | 12 | 8 | 3 | 120 | 170 | 28 |
| 131604 | 126 | 2000 | 139 | 2200 | 12 | 12 | 4 | 120 | 170 | 28 |
| 131606 | 158 | 2500 | 66 | 1050 | 12 | 18 | 4.6 | 132 | 197 | 32 |
| 131608 | 190 | 3000 | 139 | 2200 | 12 | 18 | 4.6 | 132 | 197 | 32 |
N.B. As with all submersible electrics, attention is needed during installation to ensure that wiring connections remain above water level. Specified output is US gph open flow.
(B-P-131600)
| SKU | B-P-131600 |
| Brand | TMC |
| Unit Of Measure | ea |
