Heat Shrink

Calculate Shipping

Description
Specifications

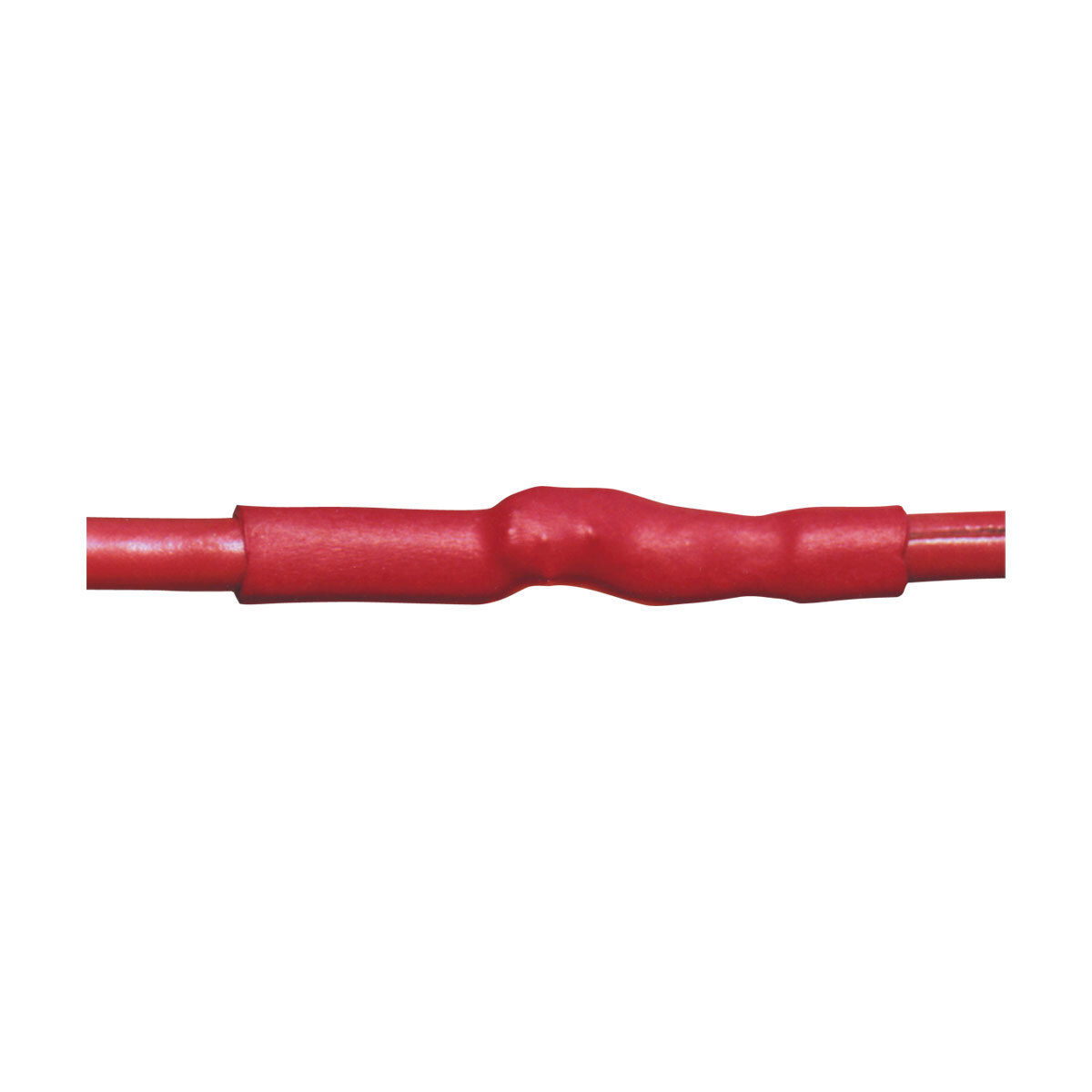

This flexible heat shrink tubing is primarily designed for use in electrical installation but also used to prevent fraying on ropes etc. Shrink temperature is 90ºC and the shrink ratio is 21. Tubing is sized by the tubing diameter, not lay flat dimension.

(B-P-115070)

Code	Colour	Supplied Flat mm	Dia. Mm	Recovered Wall Thick mm	Length m
115070	Red	-	1.6	0.43	1.2
115071	Black	-	1.6	0.43	1.2
115072	Red	-	2.5	0.44	1.2
115073	Black	-	2.5	0.44	1.2
115074	Red	-	3.5	0.44	1.2
115075	Black	-	3.5	0.44	1.2
115076	Red	8	5.4	0.56	1.2
115077	Black	8	5.4	0.56	1.2
115078	Red	11	6.4	0.56	1.2
115079	Black	11	6.4	0.56	1.2
115080	White	11	6.4	0.56	1.2
115081	Red	16	10.4	0.56	1.2
115082	Black	16	10.4	0.56	1.2
115083	White	16	10.4	0.56	1.2
115084	Red	20	13.5	0.69	1.2
115085	Black	20	13.5	0.69	1.2
115086	White	20	13.5	0.69	1.2
115087	Red	31	21.2	0.77	1.2
115088	Black	31	21.2	0.77	1.2
115089	White	31	21.2	0.77	1.2
115090	Red	39	26.1	0.87	1.2
115091	Black	39	26.1	0.87	1.2
