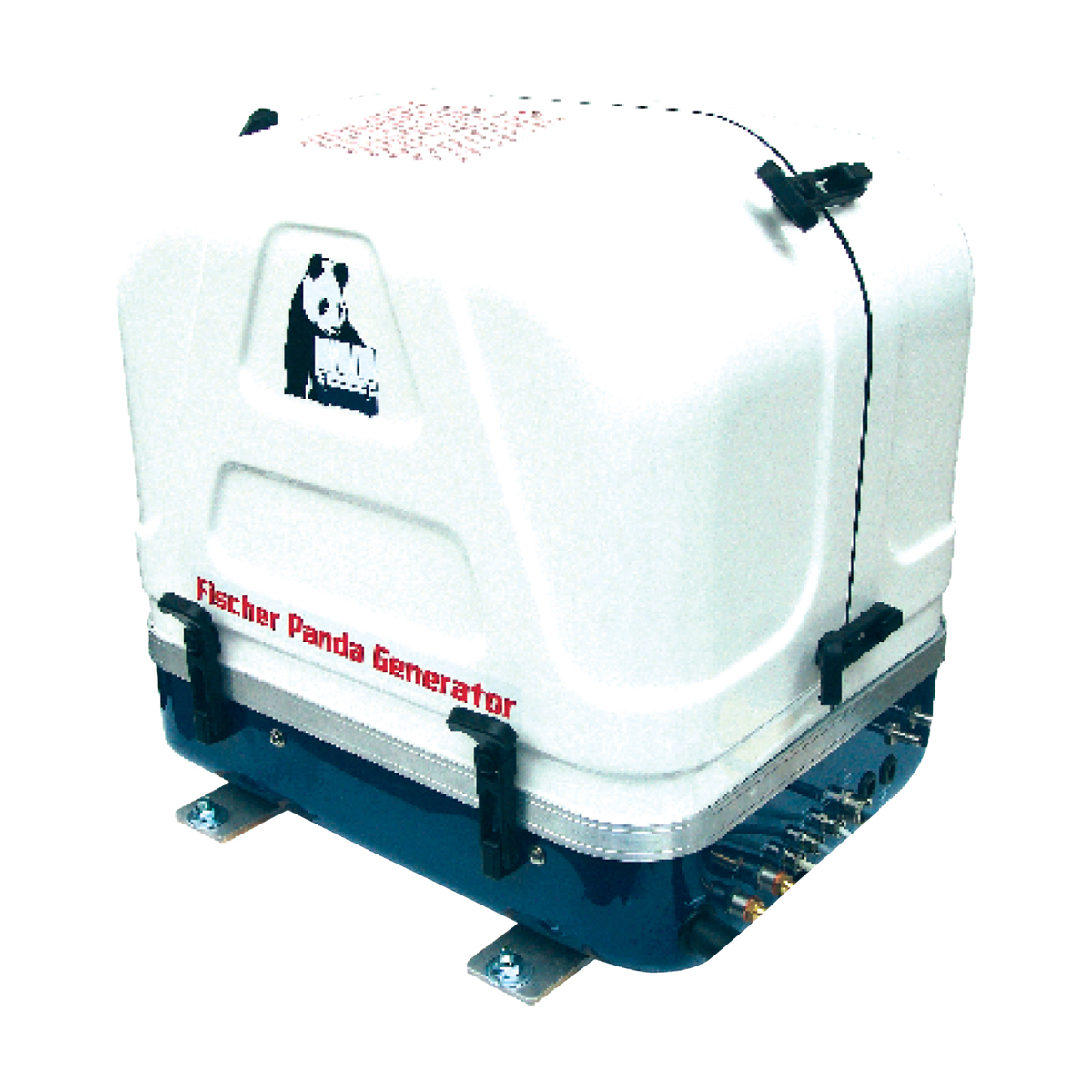

Fischer Panda Marine Generator - iSeries Panda 10000i PMS 230V 50Hz 10kVA 337044

The iSeries generators are the first of the next generation of compact, super silent and powerful generators from Fischer Panda®. Using modern diesel engines which meet the latest emission standards and variable speed technology, the operating speed is adjusted to match the load to ensure efficiency while supplying extremely stable voltage and frequency. Fischer Panda® iSeries generators are fitted with highly regarded sound insulation and water cooling. They have been especially designed to be lightweight and compact giving you up to 30% savings in weight and space.

Features
• Parallel connection of two iSeries generators of the same model; refer to page 1331.
• Load dependent variable speed technology 2200-2800RPM (1500-2700RPM for the 45i)
• Compact installation due to small size and low weight
• Highly efficient, maximum energy
• Environmentally friendly with low fuel consumption
• Easy installation reduces costs, all connectors pre-fitted to base
• Dual circuit freshwater cooling via heat exchanger
• Pure sine wave is ideal for sensitive electronics
• Electronic controlled voltage and frequency regulation
• Voltage stability 230Vac ± 3% (400Vac ± 3% for the 45i)
• Frequency stability 50Hz ± 2%
• High starting capacity for air conditioners / diving compressors
• Panda iControl LCD display; dual remote panel options available
• Electric starting, auto starting capable
• Automatically stops under alarm state
• 2 year warranty, 1 year commercial warranty
• Contact BLA for more information on spare parts

N.B. Dimensions and weights are approximate values only. Please confirm current dimensions and weights when ordering.

Standard Inclusions
SP33337324 Pierburg 12V remotely mounted fuel lift pump
55-21.07.03.042P PMGi 8000 Inverter
SP33337608 Remote iControl and monitoring panel
55-21.07.03.041P PMGi 10000 Inverter
55-21.07.03.043P PMGi 4800 Inverter
55-21.07.03.017P PMGi 15000 Inverter
55-21.07.03.046P PMGi 25 Inverter

Accessories
337450 Standard service kit 1 to suit 5000i
55-21.03.10.057P Service kit plus 25 to suit 10000i
337452 Standard service kit 3 to suit 8000i
55-21.03.10.042P Service kit plus to suit 15000i
337466 Standard service kit 14 to suit 10000i
55-21.03.10.029P Service kit plus 19 to suit 25i
337470 Standard service kit 19 to suit 15000i
55-21.03.04.080S Basic installation kit to suit 4800i – 15000i
337456 Standard service kit 5 to suit 25i
55-21.03.04.055S Basic installation kit to suit 25i
SP33337322 Engine mount to suit 15000i
55-21.03.04.057S Premium installation kit to suit 4800i – 15000i
SP33336984 Marine grade diesel fuel filter 5 micron
55-21.03.04.067S Premium installation kit to suit 25i
55-21.03.10.045P Service kit plus to suit 4800i
55-32.30.01.009H Engine mount to suit 25i
55-21.03.10.011P Service kit plus 1 to suit 5000i
55-21.02.02.132P iControl 2 slave panel
55-21.03.10.015P Service kit plus 5 to suit 8000i
