Dometic SeaStar Helms - Tilt 291512
1.7 - tilt
Nothing gets you closer to power steering!

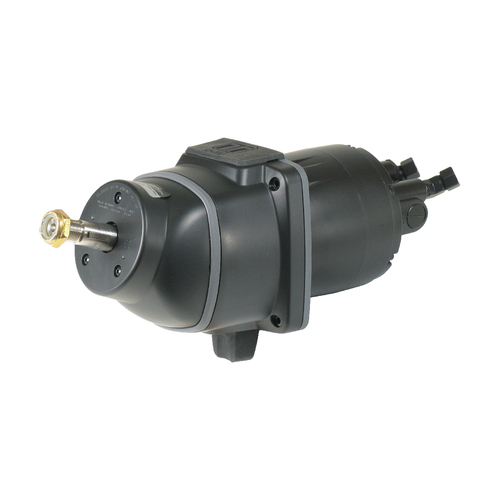

The Dometic SeaStar® Helm Pump is an axial piston pump specifically designed for manual steering. Every load bearing point within the helm pump runs on either a roller or ball bearing race for super low friction, smooth, positive steering. It has a built-in lock valve to prevent the steering load from feeding back to the driver. The lock valve will not allow the rudder or drive unit to move until you apply load by turning the steering wheel. The lock valve section of the helm also includes a relief valve. This relief valve provides over pressure protection for mechanical components, hydraulic hoses and fittings.
• Five wheel positions allow adjustment for most comfortable steering position
• Maximum steering wheel diameter is 508mm
• 48° tilt range (18° down – 30° up)
• Available in two capacities
• Convenient front of dash fill
• Complete with 2 elbow fittings, 2
| BLA Code | Description | Displacement cc | Displacement cu in | Relief Valve bar | Relief Valve psi |
|---|---|---|---|---|---|
| 291512 | 1.7 - tilt | 27.8 | 1.7 | 70 | 1000 |
| 291516 | 2.4 - tilt | 39.3 | 2.4 | 70 | 1000 |
(B-P-291512)
| SKU | B-P-291512 |
