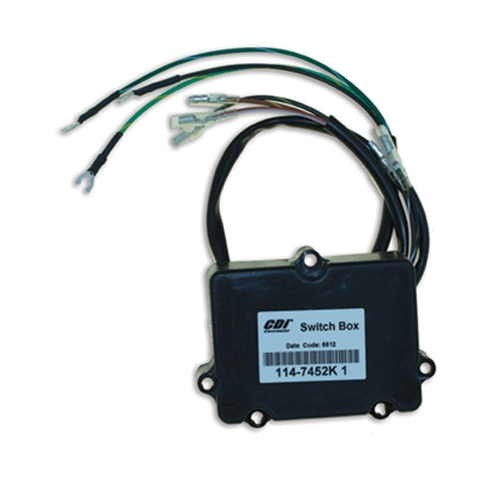

CDI Electronics Ignition Pack 2 Cyl. - Mercury, Mariner CDI114-7452K1
$419.00
RRP $549.00
SAVE $130.00 (24%)
In Stock (1
) - Dispatches in 2
days
1980-1997 (6,8,9.9,10,15,20,25 & 35HP) Engines Using the Bullet Connection Pack
Replaces
339-7452A 1, 339-7452A 7, 339-7452A 8, 339-7452A 9, 339-7452A10,339-7452A11, 339-7452A14, 339-7452A15, 339-7452A18, 339-7452A19, 339-7452A20, 339-7452A21
| HP | Model | Cyl. | Year | Serial Number | Switch Box | TPM | Stator | Trigger | Rec./Reg. | Harness | Ign. Coil |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | - | 1 | 90-06 | 0T884302-UP | R823034T 1 | N/A | R823030T 1 | Self | N/A | N/A | N/A |
| 2.5 | - | 1 | 90-06 | 0A855097-UP | R823034T 1 | N/A | R823030T 1 | Self | N/A | N/A | N/A |
| 3 | - | 1 | 90-06 | 0A855097-UP | R823034T 1 | N/A | R823030T 1 | Self | N/A | N/A | N/A |
| 3.3 | - | 1 | 90-06 | 0T884302-UP | R823034T 1 | N/A | R823030T 1 | Self | N/A | N/A | N/A |
| 4 | - | 1 | 70-71 | 2498136-3296136 | IN STATOR | N/A | CDI174-3996 | POINTS | N/A | N/A | 336-4409A 4** |
| 4 | 40 | 1 | 72-75 | 3296137-4107219 | R336-4516 | N/A | CDI174-4469 CDI174-4470 | POINTS | N/A | N/A | 336-4409A 4** |
| 4 | 40 | 2 | 76-80 | 5589202-5595531 | CDI114-6222 | N/A | CDI174-6120K 1 | N/A | N/A | N/A | 339-5288A 2** |
| 4 | - | 2 | 80-89 | 5595532-A855096 | R336-4516 | N/A | CDI174-4469 CDI174-4470 | POINTS | N/A | N/A | 336-4409A 4** |
| 4.5 | - | 2 | 75-80 | 4107220-5595531 | R336-4516 | N/A | CDI174-4469 CDI174-4470 | POINTS | N/A | N/A | 336-4409A 4** |
| 6 | - | 2 | 86-96 | 0A197112-0G289100 | CDI114-7452K1 | N/A | CDI174-6617K 1 | R98450A10 | N/A | N/A | CDI184-0006 |
| 6 | - | 2 | 97-05 | 0G760300-0G800999 | CDI114-5713 | N/A | CDI174-5721 | R98450A10 | N/A | R84-12334A 4 | CDI184-0006 |
| 7.5 | 75 | 2 | 70-71 | 2810637-3274632 | IN STATOR | N/A | CDI174-3996 | POINTS | N/A | N/A | 336-4409A 4** |
| 7.5 | 75 | 2 | 72-73 | 3274633-3801457 | R336-4516 | N/A | CDI174-4469 CDI174-4470 | POINTS | N/A | N/A | 336-4409A 4** |
| 7.5 | 75 | 2 | 74-86 | 3801458-A197111 | CDI114-6222 | N/A | CDI174-6120K 1 | R338-5286A 6 | CDI154-6770 | N/A | 339-5288A 2** |
| 8 | - | 2 | 86-96 | 0A197112-0G289100 | CDI114-7452K1 | N/A | CDI174-6617K 1 | R98450A5 | N/A | N/A | CDI184-0006 |
| 8 | - | 2 | 97-05 | 0G760300-0G800999 | CDI114-5713 | N/A | CDI174-5721 | R98450A10 | N/A | R84-12334A 4 | CDI184-0006 |
| 9.8 | 110 | 2 | 66-71 | 1865779-3263262 | IN STATOR | N/A | CDI174-3996 | POINTS | N/A | N/A | CDI184-0006 |
| 9.8 | 110 | 2 | 72-73 | 3263263-3795658 | R336-4516 | N/A | CDI174-4469 CDI174-4470 | POINTS | N/A | N/A | 336-4409A 4** |
| 9.8 | 110 | 2 | 74-78 | 3795659-5206549 | CDI114-6222 | N/A | CDI174-6120K 1 | 338-7283A2 | CDI154-6770 | N/A | 339-5288A 2** |
| 9.8 | - | 2 | 79-85 | 5206550-6620196 | CDI114-6222 | N/A | CDI174-6120K 1 | 338-7283A2 | N/A | N/A | 339-5288A 2** |
| 9.9 | - | 2 | 86-96 | 0A197112-0G289100 | CDI114-7452K1 | N/A | CDI174-6617K 1 | R98450A5 | N/A | N/A | CDI184-0006 |
| 9.9 | - | 2 | 97-05 | 0G760300-0G800999 | CDI114-5713 | N/A | CDI174-5721 | R98450A10 | N/A | R84-12334A 4 | CDI184-0006 |
| 10 | - | 2 | 86-96 | 0A197112-0G289100 | CDI114-7452K1 | N/A | CDI174-6617K 1 | R98450A10 | N/A | N/A | CDI184-0006 |
| 10 | - | 2 | 97-05 | 0G760300-0G800999 | CDI114-5713 | N/A | CDI174-5721 | R98450A10 | N/A | R84-12334A 4 | CDI184-0006 |
| 15 | - | 2 | 88-97 | 0A197112-0G760299 | CDI114-7452K 1 | N/A | CDI174-6617K 1 | R98450A10 | N/A | N/A | CDI184-0006 |
| 15 | XD/S15 | 2 | 94-96 | 0G044365-0G437999 | CDI114-4952A30 | N/A | CDI174-6617A17 | R98450A10 | CDI154-6770 | N/A | CDI184-0006 |
| 15 | XD/S15 | 2 | 96-97 | 0G438000-0G760299 | CDI114-7452K1 | N/A | CDI174-6617K 1 | R98450A10 | CDI154-6770 | N/A | CDI184-0006 |
| 15 | Sea Pro | 2 | 96-97 | 0G438000-0G760299 | CDI114-7452K1 | N/A | CDI174-6617K 1 | R98450A10 | CDI154-6770 | N/A | CDI184-0006 |
| 15 | Comm | 2 | 97-06 | 0G760300-0G800999 | CDI114-5713 | N/A | CDI174-5721 | R98450A10 | CDI154-6770 | R84-12334A 4 | CDI184-0006 |
| 15 | 2 Stroke | 2 | 97-06 | 0G760300-1B000299 | CDI114-5713 | N/A | CDI174-5721 | R98450A10 | CDI154-6770 | R84-12334A 4 | CDI184-0006 |
| 18 | - | 2 | 80-84 | 5837437-6443972 | CDI114-7452A3 | N/A | CDI174-6617K 1 | R98450A10 | N/A | R84-88891A1 | CDI184-0006 |
| 18 | XD | 2 | 79-87 | 5837437-0B238463 | CDI114-7452A3 | N/A | CDI174-6617K 1 | R98450A10 | N/A | R84-88891A1 | CDI184-0006 |
| 20 | 200 | 2 | 70-71 | 2827677-3226957 | IN STATOR | N/A | CDI174-3996 | POINTS | N/A | N/A | 336-4409A 4** |
| 20 | 200 | 2 | 72-73 | 3226958-3537530 | R336-4516 | N/A | CDI174-4469 CDI174-4470 | POINTS | N/A | N/A | 336-4409A 4** |
| 20 | 200 | 2 | 73-77 | 3537531-4403786 | CDI114-4911 | N/A | CDI174-4638 | R338-4996A1 | N/A | CDI414-2770 | CDI184-0006 |
| 20 | - | 2 | 77-81 | 4403787-5837436 | CDI114-6222 | N/A | CDI174-6120K 1 | R74324A3 | N/A | CDI414-3369 | 339-5288A 2** |
| 20 | XD | 2 | 79-87 | 5837437-B114230 | CDI114-7452A3 | N/A | CDI174-6617K 1 | R98450A10 | N/A | R84-92436A5 | CDI184-0006 |
| 20 | - | 2 | 80-87 | 5705532-B238463 | CDI114-7452K1 | N/A | CDI174-6617K 1 | R98450A10 | N/A | N/A | CDI184-0006 |
| 20 | - | 2 | 80-87 | 5705532-B238463 | CDI114-7452A3 | N/A | CDI174-6617K 1 | R98450A10 | N/A | N/A | CDI184-0006 |
| 20 | - | 2 | 88-94 | B238464-0G044026 | CDI114-7452K1 | N/A | CDI174-6617K 1 | R98450A10 | N/A | R84-88891A1 | CDI184-0006 |
| 20 | - | 2 | 94-96 | 0G044027-0G437999 | CDI114-4952A30 | N/A | CDI174-6617A17 | R98450A10 | CDI154-6770 | N/A | CDI184-0006 |
| 20 | Sea Pro | 2 | 96-97 | 0G438000-0G760299 | CDI114-7452K1 | N/A | CDI174-6617K 1 | R98450A10 | CDI154-6770 | N/A | CDI184-0006 |
| 20 | - | 2 | 97-98 | 0G438000-0G760299 | CDI114-4952A30 | N/A | CDI174-6617A17 | R98450A10 | CDI154-6770 | R84-92436A5 | CDI184-0006 |
| 20 | Comm | 2 | 98-06 | 0G760300-0T979999 | CDI114-5713 | N/A | CDI174-5721 | R98450A10 | CDI154-6770 | R84-92436A 9 | CDI184-0006 |
| 20 | - | 2 | 98-06 | 0G760300-0T979999 | CDI114-5713 | N/A | CDI174-5721 | R98450A10 | CDI154-6770 | R84-92436A 9 | CDI184-0006 |
| 25 | XD | 2 | 79-87 | 5837437-B114230 | CDI114-7452A3 | N/A | CDI174-6617K 1 | R98450A10 | N/A | R84-88891A1 | CDI184-0006 |
| 25 | - | 2 | 79-87 | 5705532-0B238463 | CDI114-7452A3 | N/A | CDI174-6617K 1 | R98450A10 | N/A | N/A | CDI184-0006 |
| 25 | - | 2 | 79-87 | 5705532-0B238463 | CDI114-7452K1 | N/A | CDI174-6617K 1 | R98450A10 | N/A | N/A | CDI184-0006 |
| 25 | - | 2 | 88-93 | 0B238464-0G044365 | CDI114-7452K1 | N/A | CDI174-6617K 1 | R98450A10 | N/A | N/A | CDI184-0006 |
| 25 | Sea Pro | 2 | 96-97 | 0G438000-0G760299 | CDI114-7452K1 | N/A | CDI174-6617K 1 | R98450A10 | CDI154-6770 | N/A | CDI184-0006 |
| 25 | XD | 2 | 98-06 | 0G760300-0T979999 | CDI114-5713 | N/A | CDI174-5721 | R98450A10 | CDI154-6770 | R84-92436A 9 | CDI184-0006 |
| 25 | Jet 20 | 2 | 94-97 | 0G044027-0G437999 | CDI114-4952A30 | N/A | CDI174-6617A17 | R98450A10 | CDI154-6770 | N/A | CDI184-0006 |
| 25 | Elec Str 4 Stk | 2 | 98 | 0G590000-0G760299 | 856482 2** | N/A | CDI174-2387 | N/A | CDI194-5279 | R84-830279A 4 | 339-859738T 1** |
| 25 | Man. Str. 4 Stk | 2 | 98 | 0G590000-0G760299 | 856482 2** | N/A | CDI174-2386 | N/A | N/A | R84-850162A 2 | 339-859738T 1** |
| 25 | Elec Str 4 Stk | 2 | 99-01 | 0G760300-0T178499 | 8478433A 3** | N/A | CDI174-2387 | N/A | CDI194-2115K 1 | R84-859202T 1 | 339-859738T 1** |
| 25 | Elec Str 4 Stk | 2 | 2001 | 0T178500-0T408999 | 8478433A 3** | N/A | CDI174-2387 | N/A | CDI194-2115K 1 | R84-859202T 2 | 339-859738T 1** |
| 25 | Man. Str. 4 Stk | 2 | 2001 | 0G760300-0G960499 | 8478433A 3** | N/A | CDI174-2386 | N/A | N/A | R84-850167A 7 | 339-859738T 1** |
| 25 | Man. Str. 4 Stk | 2 | 2001 | 0G960500-0T408999 | 8478433A 3** | N/A | CDI174-2386 | N/A | N/A | R84-850167A 7 | 339-859738T 1** |
| 25 | Elec Str 4 Stk | 2 | 42771 | 0T409000-1B344298 | 87843301S** | N/A | CDI174-2387 | N/A | CDI194-2115K 1 | R84-859202T 2 | 339-859738T 1** |
| 25 | Man. Str. 4 Stk | 2 | 42771 | 0T409000-1B344298 | 87843301S** | N/A | CDI174-2386 | N/A | N/A | R84-859201T 1 | 339-859738T 1** |
| 30 | Elec Str | 2 | 95-96 | 0G055314-0G380074 | CDI114-7509K1 | CDI144-3251A 5 | CDI174-2075K 1 | CDI134-9021-2 | CDI194-5279 | R84-824477A 4 | CDI114-7509K 1 |
| 30 | Man. Str. | 2 | 95-96 | 0G055314-0G380074 | CDI114-7509K1 | CDI144-3251A 5 | CDI174-2075K 1 | CDI134-9021-2 | CDI194-5279 | R84-824456A 2 | CDI114-7509K 1 |
| 30 | Elec Str. | 2 | 96-99 | 0G380075-0G589999 | CDI114-7509 | CDI144-3251A 6 | CDI174-2075K 2 | CDI134-9021-2 | CDI194-5279 | R84-830574A2 | CDI114-7509 |
| 30 | Man. Str | 2 | 96-99 | 0G380075-0G589999 | CDI114-7509 | CDI144-3251A 6 | CDI174-2075K 1 | CDI134-9021-2 | N/A | R84-854323A 2 | CDI114-7509 |
| 30 | Man. Str. | 2 | 98-99 | 0G590000-0G760299 | CDI114-7509 | CDI144-3251A 6 | CDI174-2075K 1 | CDI134-3960-2 | N/A | R84-824456A 2 | CDI114-7509 |
| 30 | Elec Str. | 2 | 98-99 | 0G590000-0G760299 | CDI114-7509 | CDI144-3251A 6 | CDI174-2075K 2 | CDI134-3960-2 | CDI194-5279 | R84-824477A 4 | CDI114-7509 |
| 30 | Man. Str. | 2 | 2000 | 0G760300-0T979999 | CDI114-7509 | CDI144-3251A 6 | CDI174-2075K 1 | CDI134-3960-2 | N/A | R84-854323A 2 | CDI114-7509 |
| 30 | Elec Str. | 2 | 99-06 | 0G760300-0T979999 | CDI114-7509 | CDI144-3251A 6 | CDI174-2075K 2 | CDI134-3960-2 | CDI194-5279 | R84-854322A 2 | CDI114-7509 |
| 30 | Elec Str 4 Stk | 3 | 43953 | 0T178500-0T178499 | 87843302S** | N/A | CDI174-2387 | N/A | CDI194-2115K 1 | R84-859197T 3 | 339-859738T 1** |
| 30 | Man. Str. 4 Stk | 3 | 43953 | 0T178500-0T178499 | 87843302S** | N/A | CDI174-2386 | N/A | N/A | R84-859196T 1 | 339-859738T 1** |
| 30 | 4 Stroke EFI | 3 | 43953 | 0T409000-0T800999 | N/A | N/A | CDI174-0001 | N/A | CDI194-2115K 1 | R84-878132T 3 | 339-877807A 2** |
| 30 | 4 Stroke EFI | 3 | 43953 | 0T801000-0T979999 | N/A | N/A | CDI174-0001 | N/A | CDI194-2115K 1 | R84-878132T04 | 339-877807A 2** |
| 30 | 4 Stroke EFI | 3 | 43953 | 0T980000-1B344298 | N/A | N/A | CDI174-0001 | N/A | CDI194-2115K 1 | R84-878132T04 | 300-8M0077471** |
| 30 | Jet | 3 | 98-01 | 0G590000-0T408999 | CDI114-7509 | N/A | CDI174-2075K 2 | CDI134-4512-3 | CDI194-5279 | CDI414-0220 | CDI114-7509 |
| 30 | Jet | 4 | 89-97 | C159200-0G589999 | CDI114-5772 | N/A | CDI174-9710K 1 | CDI134-6452 | CDI194-5279 | CDI414-8672 | CDI184-0001 |
| 35 | - | 2 | 84-86 | 6445653-0B110788 | CDI114-7452A3 | N/A | CDI174-6617K 1 | R92431A 1 | CDI154-6770 | CDI414-6219A 2 | CDI184-0001 |
| 35 | 350 | 2 | 68 | 1960827-2874703 | N/A | N/A | 398-2568A 1** Magneto | N/A | N/A | R84-34229 | N/A |
| 35 | - | 2 | 84-86 | 6445653-0B110788 | CDI114-7452K1 | N/A | CDI174-6617K 1 | R92431A 6 | N/A | CDI414-6219A 5 | CDI184-0001 |
| 35 | - | 2 | 87-89 | 0B110789-0B393190 | CDI114-7452K1 | N/A | CDI174-6617K 1 | R92431A 6 | CDI154-6770 | CDI414-6219A 5 | CDI184-0001 |
| 40 | Elec Str. | 2 | 95-96 | 0G055314-0G380074 | CDI114-7509K 1 | CDI144-3251A 5 | CDI174-2075K 2 | CDI134-9021-2 | CDI194-5279 | R84-824477A 4 | CDI114-7509K 1 |
| 40 | 400 Elec Str. | 2 | 70-71 | 2874704-3336237 | R332-4172 | N/A | CDI174-4424 | N/A | CDI154-6770 | CDI414-2770 | CDI184-0001 |
| 40 | 400 Man. Str. | 2 | 70-71 | 2874704-3336237 | R332-4172 | N/A | CDI174-4424 | N/A | N/A | N/A | CDI184-0001 |
| 40 | 402 Elec Str. | 2 | 72-74 | 3336258-3859434 | CDI114-4911 | N/A | CDI174-5255 | R338-4731A6 | CDI154-6770 | CDI414-2770 | CDI184-0001 |
| 40 | 402 Man. Str. | 2 | 72-74 | 3336258-4117709 | CDI114-4911 | N/A | CDI174-5255 | R338-4731A6 | N/A | N/A | CDI184-0001 |
| 40 | 402 Elec Str. | 2 | 75-77 | 4117710-4860102 | CDI114-4911 | N/A | CDI174-5255 | R338-4731A6 | CDI154-6770 | CDI414-2770 | CDI184-0001 |
| 40 | Man. Str. | 2 | 75-81 | 4117710-5823917 | CDI114-4911 | N/A | CDI174-5255 | R338-4731A6 | N/A | N/A | CDI184-0001 |
| 40 | Elec Str. | 2 | 78-81 | 4860103-5823917 | CDI114-4911 | N/A | CDI174-5255 | R338-4731A6 | CDI154-6770 | CDI414-2770 | CDI184-0001 |
| 40 | Elec Str. | 2 | 81-84 | 58239S18-6052942 | CDI114-7452A3 | N/A | CDI174-6617K 1 | R92431A1 | CDI154-6770 | CDI414-6219A 2 | CDI184-0001 |
| 40 | Elec Str. | 2 | 81-84 | 6052943-6999999 | CDI114-7452A3 | N/A | CDI174-6617K 1 | R92431A1 | CDI154-6770 | CDI414-6219A 2 | CDI184-0001 |
| 40 | Man. Str. | 2 | 81-84 | 58239S18-6999999 | CDI114-7452A3 | N/A | CDI174-6617K 1 | R92431A1 | N/A | N/A | CDI184-0001 |
| 40 | Elec Str. | 2 | 96-99 | 0G380075-0G589999 | CDI114-7509 | CDI144-3251A 6 | CDI174-2075K 2 | CDI134-9021-2 | CDI194-5279 | R84-854322A 2 | CDI114-7509 |
| 40 | Man. Str. | 2 | 95-96 | 0G055314-0G380074 | CDI114-7509K 1 | CDI144-3251A 5 | CDI174-2075K 1 | CDI134-9021-2 | CDI194-5279 | R84-824456A 2 | CDI114-7509K 1 |
| 40 | Elec Str. | 2 | 00-05 | 0G590000-0T999999 | CDI114-7509 | N/A | CDI174-2075K 2 | CDI134-3960-2 | CDI194-5279 | R84-854322A 2 | CDI114-7509 |
| 40 | Man. Str. | 2 | 96-99 | 0G380075-0G589999 | CDI114-7509 | CDI144-3251A 6 | CDI174-2075K 1 | CDI134-9021-2 | N/A | R84-854323A 2 | CDI114-7509 |
| 40 | Man. Str. | 2 | 00-05 | 0G590000-0T999999 | CDI114-7509 | N/A | CDI174-2075K 1 | CDI134-3960-2 | N/A | R84-854323A 2 | CDI114-7509 |
| 40 | Elec Str. | 3 | 97-05 | 0G590000-0T999999 | CDI114-7509 | N/A | CDI174-2075K 2 | CDI134-4512-3 | CDI194-5279 | CDI414-0220 | CDI114-7509 |
| 40 | Man. Str. | 3 | 97-05 | 0G590000-0T999999 | CDI114-7509 | N/A | CDI174-2075K 1 | CDI134-4512-3 | N/A | N/A | CDI114-7509 |
| 40 | Elec Str. 4 Stk | 3 | 43953 | 0T178500-1B344298 | 87843302S** | N/A | CDI174-2387 | N/A | CDI194-2115K 1 | R84-854322A 2 | 339-859738T 1** |
| 40 | Man. Str. 4 Stk | 3 | 43953 | 0T178500-1B344298 | 87843302S** | N/A | CDI174-2386 | N/A | N/A | R84-854323A 2 | 339-859738T 1** |
| 40 | Elec Str. 4 Stk | 4 | 43953 | 0T178500-0T598999 | 878433A 3** | N/A | CDI174-2387 | N/A | CDI194-2115K 1 | R84-857111T 2 | 339-859738T 1** |
| 40 | Jet | 3 | 98-01 | 0G590000-0T408999 | CDI114-7509 | N/A | CDI174-2075K 2 | CDI134-4512-3 | CDI194-5279 | CDI414-0220 | CDI114-7509 |
| 40 | Jet Elec Str. | 3 | 43953 | 0T178500-0T979999 | CDI114-7509 | N/A | CDI174-2075K 2 | CDI134-4512-3 | CDI194-5279 | CDI414-0220 | CDI114-7509 |
| 40 | Jet Man Str. | 3 | 43953 | 0T178500-0T979999 | CDI114-7509 | N/A | R398-832074A 5 | CDI134-4512-3 | N/A | N/A | CDI114-7509 |
| 40 | Jet | 4 | 89-97 | C159200-0G589999 | CDI114-5772 | N/A | CDI174-5454K 1 | CDI134-6452 | CDI154-6770 | CDI414-8672 | CDI184-0001 |
| 40 | Elec Str. | 4 | 89-91 | C159200-D055047 | CDI114-5772 | N/A | CDI174-9710K 1 | CDI134-6452 | CDI194-5279 | CDI414-8672 | CDI184-0001 |
| 40 | Elec Str. | 4 | 91-97 | D055048-OG589999 | CDI114-5772 | N/A | CDI174-9710K 1 | CDI134-6452 | CDI194-5279 | CDI414-8672 | CDI184-0001 |
| 40 | Man. Str. | 4 | 89-91 | C159200-D055048 | CDI114-5772 | N/A | CDI174-8778K 1 | CDI134-6452 | N/A | N/A | CDI184-0001 |
| 45 | Jet | 3 | 91-99 | D000750-OG589999 | CDI114-9052 | N/A | CDI174-9710K 1 | CDI134-9021-3 | CDI194-5279 | CDI414-9061 | CDI184-0001 |
| 45 | Man.Start | 4 | 81-89 | 5531630-B393190 | CDI114-5772 | N/A | R76314A3 | CDI134-6452 | N/A | N/A | CDI184-0001 |
| 45 | Elec Str. | 4 | 81-89 | 5531630-B393190 | CDI114-5772 | N/A | CDI174-5454K 1 | CDI134-6452 | CDI154-6770 | CDI414-6277 | CDI184-0001 |
| 50 | - | 3 | 91-97 | D000750-OG589999 | CDI114-9052 | N/A | CDI174-9710K 1 | CDI134-9021-3 | CDI194-5279 | CDI414-9061 | CDI184-0001 |
| 50 | - | 3 | 84-90 | 6428681-D000749 | CDI114-7778 | N/A | CDI174-5454K 1 | CDI134-6453 | CDI154-6770 | CDI414-4614 | CDI184-0001 |
| 50 | 500 | 4 | 67 | 21163S18-2305100 | CDI114-2986 | N/A | R398-2996 | R393-2918A1 | CDI154-6770 | CDI414-2770 | N/A |
| 50 | Elec Str. | 4 | 70-75 | 2858814-4357639 | R333-3213 | N/A | CDI174-3175 CDI174-3176 | IGN DRIVER | CDI154-6770 | CDI414-2770 | N/A |
| 50 | Man. Str. | 3 | 97-06 | OG531301-OT999999 | CDI114-7509 | N/A | CDI174-2075K 1 | CDI134-4512-3 | N/A | N/A | CDI114-7509 |
| 50 | Elec Str. | 3 | 97-06 | OG531301-OT999999 | CDI114-7509 | N/A | CDI174-2075K 2 | CDI134-4512-3 | CDI194-5279 | CDI414-0220 | CDI114-7509 |
| 50 | Jet | 3 | 98-05 | 0G590000-0T408999 | CDI114-7509 | N/A | CDI174-2075K 2 | CDI134-4512-3 | CDI194-5279 | CDI414-0220 | CDI114-7509 |
| 50 | Elec Str. 4 Stk | 4 | 43953 | 0T178500-0T598999 | 878433A 3** | N/A | CDI174-2387 | N/A | CDI194-2115K 1 | R84-857111T | 339-859738T 1** |
| 50 | EFI 4 Stk | 4 | 2005 | 0T409000-0T800999 | N/A | N/A | CDI174-0001 | N/A | CDI194-2115K 1 | R84-877804T 3 | N/A |
| 50 | EFI 4 Stk | 4 | 2006 | 0T801000-1B344306 | N/A | N/A | CDI174-0001 | N/A | CDI194-2115K 1 | N/A | N/A |
| 50 | EFI 4 Stk | 4 | 42893 | 1B344306-1C050252 | N/A | N/A | CDI174-0001 | N/A | CDI194-2115K 1 | N/A | N/A |
| 50 | Man. Str. | 4 | 76-79 | 4357640-5531629 | CDI114-5772 | N/A | R76314A3 | CDI134-6452 | N/A | N/A | CDI184-0001 |
| 50 | Man. Str. | 4 | 80-85 | 5531630-A912477 | CDI114-5772 | N/A | R76314A3 | CDI134-6452 | N/A | N/A | CDI184-0001 |
| 50 | Elec Str. | 4 | 76-79 | 4357640-5531629 | CDI114-5772 | N/A | CDI174-5454K 1 | CDI134-6452 | CDI154-6770 | CDI414-3369 | CDI184-0001 |
| 50 | Elec Str. | 4 | 80-85 | 5531630-A912477 | CDI114-5772 | N/A | CDI174-5454K 1 | CDI134-6452 | CDI154-6770 | CDI414-6277 | CDI184-0001 |
| 55 | Elec Str. | 3 | 92-97 | 0D000750-OG589999 | CDI114-9052 | N/A | CDI174-9710K 1 | CDI134-9021-3 | CDI194-5279 | CDI414-9061 | CDI184-0001 |
| 55 | Man.Start | 3 | 96-97 | 0G290585-OG589999 | CDI114-9052 | N/A | CDI174-2075K 1 | CDI134-9021-3 | N/A | N/A | CDI184-0001 |
| 55 | Elec Str. | 3 | 98-07 | 0G590000-OT980000 | CDI114-7509 | N/A | CDI174-2075K 2 | CDI134-4512-3 | CDI194-5279 | CDI414-0220 | CDI114-7509 |
| 60 | - | 3 | 84-90 | 6428681-D000749 | CDI114-7778 | N/A | CDI174-5454K 1 | CDI134-6453 | CDI154-6770 | CDI414-4614 | CDI184-0001 |
| 60 | - | 3 | 91-97 | D000750-OG589999 | CDI114-9052 | N/A | CDI174-9710K 1 | CDI134-9021-3 | CDI194-5279 | CDI414-9061 | CDI184-0001 |
| 60 | - | 3 | 97-00 | OG531301-OG833000 | CDI114-7509 | N/A | CDI174-2075K 1 | N/A | CDI194-5279 | CDI414-0220 | CDI114-7509 |
| 60 | Elec Str. | 3 | 98-07 | 0G590000-OT980000 | CDI114-7509 | N/A | CDI174-2075K 2 | CDI134-4512-3 | CDI194-5279 | CDI414-0220 | CDI114-7509 |
| 60 | Elec Str. 4 Stk | 4 | 43953 | 0T178500-0T598999 | 878433A 3** | N/A | CDI174-2387 | N/A | CDI194-2115K 1 | R84-857111T 2 | 339-859738T 1** |
| 60 | EFI 4 Stk | 4 | 2005 | 0T409000-0T800999 | N/A | N/A | CDI174-0001 | N/A | CDI194-2115K 1 | R84-877804T 3 | N/A |
| 60 | EFI 4 Stk | 4 | 2006 | 0T801000-1B344306 | N/A | N/A | CDI174-0001 | N/A | CDI194-2115K 1 | N/A | N/A |
| 60 | EFI 4 Stk | 4 | 44018 | 1B344306-1C050252 | N/A | N/A | CDI174-0001 | N/A | CDI194-2115K 1 | N/A | N/A |
| 65 | - | 3 | 76 | 4382057-4571651 | CDI114-7778 | N/A | CDI174-5454K 1 | CDI134-6453 | CDI154-6770 | R84-73204 | CDI184-0001 |
| 65 | Jet Elec Str. | 3 | 94-96 | D283222-OG760299 | CDI114-4953 | N/A | CDI174-9710K 1 | CDI134-9021-3 | CDI194-5279 | CDI414-1591 | CDI184-0001 |
| 65 | 650 | 4 | 67 | 2119749-2309310 | CDI114-2986 | N/A | R398-2997 | R393-2918A1 | CDI154-6770 | CDI414-2770 | N/A |
| 65 | 650 | 4 | 68 | 2309311-2505592 | R333-3213 | N/A | CDI174-3175 CDI174-3176 | IGN DRIVER | CDI154-6770 | CDI414-2770 | N/A |
| 65 | - | 4 | 69-71 | 2503993-3293183 | CDI114-2986 | N/A | CDI174-4793 | R393-2918A1 | CDI154-6770 | CDI414-2770 | N/A |
| 65 | 650 | 3 | 72-75 | 3293CDI184-4382056 | CDI114-4796 | N/A | R398-4634 | R332-4797 | CDI154-6770 | R84-60795 | N/A |
| 65 | Jet | 3 | 96-06 | 0G760300-1B000001 | CDI114-7509 | N/A | CDI174-2075K 2 | CDI134-4512-3 | CDI194-5279 | CDI414-0043 | CDI114-7509 |
| 65 | Jet Man Str. | 3 | 94-96 | 0D283222-OG437999 | CDI114-4953 | N/A | CDI174-9710K 1 | CDI134-9021-3 | N/A | N/A | CDI184-0001 |
| 70 | 9 Amp | 3 | 87-89 | 0A996142-0D283221 | CDI114-7778 | N/A | CDI174-8778K 1 | CDI134-9021-3 | CDI154-6770 | CDI414-1591 | CDI184-0001 |
| 70 | - | 3 | 77-85 | 4571652-A730815 | CDI114-7778 | N/A | CDI174-5454K 1 | CDI134-6453 | CDI154-6770 | R84-73204 | CDI184-0001 |
| 70 | 16 Amp | 3 | 87-89 | 0A996142-0D283222 | CDI114-7778 | N/A | CDI174-9710K 1 | CDI134-9021-3 | CDI194-5279 | CDI414-1591 | CDI184-0001 |
| 75 | 16 Amp | 3 | 87-93 | 0A996142-0D283221 | CDI114-7778 | N/A | CDI174-9710K 1 | CDI134-9021-3 | CDI194-5279 | CDI414-1591 | CDI184-0001 |
| 75 | Elec Str. | 3 | 94-96 | 0D283222-0G437999 | CDI114-4953 | N/A | CDI174-9710K 1 | CDI134-9021-3 | CDI194-5279 | CDI414-1591 | CDI184-0001 |
| 75 | Man.Str. | 3 | 94-96 | 0D283222-0G437999 | CDI114-4953 | N/A | CDI174-9710K 1 | CDI134-9021-3 | N/A | N/A | CDI184-0001 |
| 75 | 9 Amp | 3 | 87-93 | 0C221500-0D283221 | CDI114-7778 | N/A | CDI174-8778K 1 | CDI134-9021-3 | CDI154-6770 | CDI414-1591 | CDI184-0001 |
| 75 | 2 Stk. | 3 | 96-06 | 0G438000-1B000001 | CDI114-7509 | N/A | CDI174-2075K 2 | CDI134-4512-3 | CDI194-5279 | CDI414-0043 | CDI114-7509 |
| 75 | - | 4 | 84-86 | 6432901-0C221499 | CDI114-5772 | N/A | CDI174-5454K 1 | CDI134-6454 | CDI154-6770 | CDI414-6233A 2 | CDI184-0001 |
| 80 | 16 Amp | 3 | 87-93 | 0A996142-0D283221 | CDI114-7778 | N/A | CDI174-9710K 1 | CDI134-9021-3 | CDI194-5279 | CDI414-1591 | CDI184-0001 |
| 80 | 9 Amp | 3 | 87-93 | 0A996142-0D283221 | CDI114-7778 | N/A | CDI174-8778K 1 | CDI134-9021-3 | CDI154-6770 | CDI414-1591 | CDI184-0001 |
| 80 | 800 | 4 | 69 | 2559001-2991033 | CDI114-2986 | N/A | CDI174-4793 | CDI134-3736 | CDI154-6770 | CDI414-2770 | N/A |
| 80 | 800 | 4 | 70 | 3051041-3052380 | CDI114-2986K1 | N/A | CDI174-4793 | CDI134-3736 | CDI154-6770 | CDI414-2770 | N/A |
| 80 | 800 | 4 | 70 | 3052381-3059820 | CDI114-2986 | N/A | CDI174-4793 | CDI134-3736 | CDI154-6770 | CDI414-2770 | N/A |
| 80 | 800 | 4 | 71 | 3144219-3192962 | CDI114-2986K1 | N/A | CDI174-4793 | CDI134-3736 | CDI154-6770 | CDI414-2770 | N/A |
| 80 | 800 | 4 | 71-72 | 3307347-3493912 | CDI114-2986 | N/A | CDI174-4793 | CDI134-3736 | CDI154-6770 | CDI414-2770 | N/A |
| 80 | - | 4 | 78-79 | 4831999-5582561 | CDI114-5772 | N/A | CDI174-5454K 1 | CDI134-6452 | CDI154-6770 | CDI414-3369 | CDI184-0001 |
| 80 | - | 4 | 80-83 | 5582562-6432900 | CDI114-5772 | N/A | CDI174-5454K 1 | CDI134-6454 | CDI154-6770 | CDI414-6233A 2 | CDI184-0001 |
| 80 | Jet | 4 | 94-96 | 0D283222-0G437999 | CDI114-5772 | N/A | CDI174-9710K 1 | CDI134-9021-4 | CDI194-5279 | CDI414-0043 | CDI184-0001 |
| 80 | Jet | 4 | 96-06 | 0G438000-1B000001 | CDI114-7509 | N/A | CDI174-2075K 2 | CDI134-4513-4 | CDI194-5279 | CDI414-0043 | CDI114-7509 |
| 85 | 850 | 4 | 73-75 | 3493913-4366801 | CDI114-2986 | N/A | CDI174-4793 | CDI134-3736 | CDI154-6770 | CDI414-2770 | N/A |
| 85 | 850 | 4 | 76-77 | 4366802-4831998 | CDI114-5772 | N/A | CDI174-5454K 1 | CDI134-6452 | CDI154-6770 | CDI414-3369 | CDI184-0001 |
| 90 | Elec Str. | 3 | 92-94 | 0C222000-0D283221 | CDI114-7778 | N/A | CDI174-9710K 1 | CDI134-9021-3 | CDI194-5279 | CDI414-1591 | CDI184-0001 |
| 90 | Elec Str. | 3 | 94-96 | 0D283222-0G437999 | CDI114-4953 | N/A | CDI174-9710K 1 | CDI134-9021-3 | CDI194-5279 | CDI414-1591 | CDI184-0001 |
| 90 | Man.Str. | 3 | 94-96 | 0D283222-0G437999 | CDI114-4953 | N/A | CDI174-9710K 1 | CDI134-9021-3 | N/A | N/A | CDI184-0001 |
| 90 | Elec Str. | 3 | 87-92 | 0A996142-0C221999 | CDI114-7778 | N/A | CDI174-8778K 1 | CDI134-9021-3 | CDI154-6770 | CDI414-1591 | CDI184-0001 |
| 90 | SportJet | 3 | 93-95 | 0E021000-0E095087 | CDI114-4953 | N/A | CDI174-8778K 1 | CDI134-7029-3 | CDI194-5279 | CDI414-6075 | CDI184-0001 |
| 90 | SportJet | 3 | 95-96 | 0E080400-0E145579 | CDI114-4953 | N/A | CDI174-8778K 1 | CDI134-7029-3 | CDI194-5279 | CDI414-6075 | CDI184-0001 |
| 90 | Elec Str. | 3 | 96-06 | 0G438000-1B000299 | CDI114-7509 | N/A | CDI174-2075K 2 | CDI134-4512-3 | CDI194-5279 | CDI414-0043 | CDI114-7509 |
| 90 | Inline | 6 | 78-79 | 4836522-5299505 | CDI114-2986 | N/A | CDI174-4793 | CDI134-3736 | CDI154-6770 | CDI414-2770 | N/A |
| 90 | Inline | 6 | 79 | 5299506-5595646 | CDI114-7778 | N/A | CDI174-5456 | CDI134-6456 | CDI154-6770 | CDI414-5532 | CDI184-0001 |
| 90 | Inline | 6 | 79-81 | 5594657-6026608 | CDI114-7778 | N/A | CDI174-5456 | CDI134-6456 | CDI154-6770 | CDI414-9564 | CDI184-0001 |
| 90 | Inline | 6 | 82-86 | 6026609-0B110053 | CDI114-7778 | N/A | CDI174-5456 | CDI134-6456 | CDI154-6770 | CDI414-9564 | CDI184-0001 |
| 95 | XRSprtJet | 3 | 95-97 | 0E141089-0E315900 | CDI114-4953 | N/A | CDI174-9710K 1 | CDI134-7029-3 | CDI194-5279 | R84-828297A 2 | CDI184-0001 |
| 95 | 950 Inline | 6 | 66-67 | 1869776-2101742 | CDI114-2803 | N/A | CDI174-2188 | POINTS | N/A | CDI414-2770 | N/A |
| 95 | 950 | 6 | 66-67 | 2101743-2318585 | CDI114-2986 | N/A | CDI174-2188 | R393-2918 | CDI154-6770 | CDI414-2770 | N/A |
| 100 | 16 Amp | 4 | 94-96 | 0D283222-0G437999 | CDI114-5772 | N/A | CDI174-9710K 1 | CDI134-9021-4 | CDI194-5279 | CDI414-3443 | CDI184-0001 |
| 100 | - | 4 | 88-93 | 0B209468-0D283221 | CDI114-5772 | N/A | CDI174-8778K 1 | CDI134-9021-4 | CDI194-5279 | CDI414-3443 | CDI184-0001 |
| 100 | 9 Amp | 4 | 94-96 | 0D283222-0G437999 | CDI114-5772 | N/A | CDI174-8778K 1 | CDI134-9021-4 | CDI194-5279 | CDI414-3443 | CDI184-0001 |
| 100 | 1000 Inline | 6 | 67-69 | 2641855-3253111 | CDI114-2986 | N/A | R398-3633 | R393-2918 | CDI154-6770 | CDI414-2770 | N/A |
| 100 | - | 4 | 96-00 | 0G438000-0G965520 | CDI114-7509 | N/A | CDI174-2075K 2 | CDI134-4513-4 | CDI194-5279 | CDI414-0043 | CDI114-7509 |
| 105 | Jet | 6 | 92-95 | 0D082000-0G201874 | CDI114-7778 | N/A | CDI174-9610K 2 | CDI134-6456 | CDI194-5279 | CDI414-6220A16 | CDI184-0001 |
| 105 | Jet | 6 | 96-00 | 0G303046-0G760500 | CDI114-7778 | N/A | CDI174-9610K 2 | CDI134-6456 | CDI194-5279 | R84-826730A 4 | CDI184-0001 |
| 110 | 1100 Inline | 6 | 66-67 | 1962462-2103722 | CDI114-2803 | N/A | CDI174-2188 | POINTS | R32177A1 | R29999 | N/A |
| 110 | 1101 Inline | 6 | 67 | 2113898-2314955 | CDI114-2986 | N/A | CDI174-2188 | CDI134-3736 | CDI154-6770 | R29999* | N/A |
| 115 | 16 Amp | 4 | 89-97 | 0C100000-0G437999 | CDI114-5772 | N/A | CDI174-9710K 1 | CDI134-9021-4 | CDI194-5279 | CDI414-3443 | CDI184-0001 |
| 115 | 9 Amp | 4 | 89-93 | 0C100000-0D252460 | CDI114-5772 | N/A | CDI174-8778K 1 | CDI134-9021-4 | CDI194-5279 | CDI414-3443 | CDI184-0001 |
| 115 | 150 SS Inline | 6 | 70-79 | 2836019-5314655 | CDI114-2986 | N/A | CDI174-4793 | CDI134-3736 | CDI154-6770 | CDI414-2770 | N/A |
| 115 | - | 4 | 96-06 | 0G438000-1B000001 | CDI114-7509 | N/A | CDI174-2075K 2 | CDI134-4513-4 | CDI194-5279 | CDI414-0043 | CDI114-7509 |
| 115 | Inline | 6 | 79-80 | 5314656-5600966 | CDI114-7778 | N/A | CDI174-5456 | CDI134-6456 | CDI154-6770 | CDI414-5532 | CDI184-0001 |
| 115 | Inline | 6 | 80-82 | 5600967-6051525 | CDI114-7778 | N/A | CDI174-5456 | CDI134-6456 | CDI154-6770 | CDI414-9564 | CDI184-0001 |
| 115 | Inline | 6 | 82-89 | 6051526-0C10000 | CDI114-7778 | N/A | CDI174-5456 | CDI134-6456 | CDI154-6770 | CDI414-9564 | CDI184-0001 |
| 120 | SportJet | 4 | 95 | 0E070304-0E141088 | CDI114-6866 | N/A | CDI174-9710K 1 | CDI134-7029-4 | CDI194-5279 | CDI414-6075 | CDI184-0001 |
| 120 | XRSportJet | 4 | 95-00 | 0E141089-0E379999 | CDI114-7509 | N/A | CDI174-2075K 2 | CDI134-8303-4 | CDI194-5279 | R84-828297A 2 | CDI114-7509 |
| 125 | 16 Amp | 4 | 94-96 | 0D283222-0G437999 | CDI114-5772 | N/A | CDI174-9710K 1 | CDI134-9021-4 | CDI194-5279 | CDI414-3443 | CDI184-0001 |
| 125 | 9 Amp | 4 | 94-96 | 0D283222-0G437999 | CDI114-5772 | N/A | CDI174-8778K 1 | CDI134-9021-4 | CDI194-5279 | CDI414-3443 | CDI184-0001 |
| 125 | - | 4 | 96-06 | 0G438000-1B000001 | CDI114-7509 | N/A | CDI174-2075K 2 | CDI134-4513-4 | CDI194-5279 | CDI414-0043 | CDI114-7509 |
| 125 | 1250 Inline | 6 | 68-69 | 2314956-3253111 | CDI114-2986 | N/A | CDI174-4793 | R393-2918 | CDI154-6770 | CDI414-2770 | N/A |
| 135 | 1350 Inline | 6 | 70-71 | 2839369-3293233 | CDI114-2986 | N/A | CDI174-4793 | CDI134-3736 | CDI154-6770 | CDI414-2770 | N/A |
| 135 | - | 6 | 85-88 | 0A904646-0C100860 | CDI114-7778 | N/A | CDI174-5456-16 | CDI134-6456 | CDI194-8825K 1 | CDI414-6220A 4 | CDI184-0001 |
| 135 | - | 6 | 89-90 | 0C100861-0C239552 | CDI114-7778 | N/A | CDI174-9610K 2 | CDI134-6456 | CDI194-1873 | CDI414-6220A12 | CDI184-0001 |
| 135 | 16 Amp | 6 | 90-91 | 0C239553-0D081999 | CDI114-7778 | N/A | CDI174-5456-16 | CDI134-6456 | CDI194-8825K 1 | CDI414-6220A 4 | CDI184-0001 |
| 135 | 40 Amp | 6 | 90-91 | 0C239553-0D081999 | CDI114-7778 | N/A | CDI174-9610K 2 | CDI134-6456 | CDI194-1873 | CDI414-6220A12 | CDI184-0001 |
| 135 | 40 Amp | 6 | 92-95 | 0D082000-0G201874 | CDI114-7778 | N/A | CDI174-9610K 2 | CDI134-6456 | CDI194-5279 | CDI414-6220A16 | CDI184-0001 |
| 135 | 42 Amp | 6 | 96-99 | 0G303046-0G960499 | CDI114-7778 | N/A | CDI174-9610K 2 | CDI134-6456 | CDI194-5279 | R84-826730A 4 | CDI184-0001 |
| 135 | - | 6 | 00-07 | 0G960500-UP | CDI114-7509 | N/A | CDI174-0002 | CDI134-6456-18 | CDI194-2115K 1 | R84-857166T 1 | CDI114-7509 |
| 140 | 1400 Inline | 6 | 72 | 3293234-3502805 | CDI114-2986 | N/A | CDI174-4793 | CDI134-3736 | CDI154-6770 | CDI414-2770 | N/A |
| 140 | Inline | 6 | 78-79 | 4855CDI153-5314655 | CDI114-2986 | N/A | CDI174-4793 | CDI134-3736 | CDI154-6770 | CDI414-2770 | N/A |
| 140 | Inline | 6 | 79 | 5327663-5625107 | CDI114-7778 | N/A | CDI174-5456 | CDI134-6456 | CDI193-5114 | CDI414-5532 | CDI184-0001 |
| 140 | - | 6 | 80-81 | 5625108-5669999 | CDI114-7778 | N/A | CDI174-5456 | CDI134-6456 | CDI154-6770 | CDI414-9564 | CDI184-0001 |
| 140 | Jet | 6 | 92-95 | 0D082000-0G201874 | CDI114-7778 | N/A | CDI174-9610K 2 | CDI134-6456 | CDI194-5279 | CDI414-6220A16 | CDI184-0001 |
| 140 | Jet | 6 | 96-99 | 0G303046-0G960499 | CDI114-7778 | N/A | CDI174-9610K 2 | CDI134-6456 | CDI194-5279 | R84-826730A 4 | CDI184-0001 |
| 140 | Jet | 6 | 00-07 | 0G960500-UP | CDI114-7509 | N/A | CDI174-0002 | CDI134-6456-18 | CDI194-2115K 1 | R84-857166T 1 | CDI114-7509 |
| 150 | 1500 Inline | 6 | 73-77 | 3502806-4868997 | CDI114-2986 | N/A | CDI174-4793 | CDI134-3736 | CDI154-6770 | CDI414-2770 | N/A |
| 150 | XR2 Mag | 6 | 78-86 | 04868998-0A904645 | CDI114-7778 | N/A | CDI174-5456 | CDI134-6456 | CDI154-6770 | CDI414-6220A 4 | CDI184-0001 |
| 150 | - | 6 | 85-88 | 0A904646-0C100860 | CDI114-7778 | N/A | CDI174-5456-16 | CDI134-6456 | CDI194-8825K 1 | CDI414-6220A 4 | CDI184-0001 |
| 150 | - | 6 | 89-90 | 0C100861-0C239552 | CDI114-7778 | N/A | CDI174-9610K 2 | CDI134-6456 | CDI194-1873 | CDI414-6220A12 | CDI184-0001 |
| 150 | 16 Amp | 6 | 90-91 | 0C239553-0D081999 | CDI114-7778 | N/A | CDI174-5456-16 | CDI134-6456 | CDI194-8825K 1 | CDI414-6220A 4 | CDI184-0001 |
| 150 | 40 Amp | 6 | 90-91 | 0C239553-0D081999 | CDI114-7778 | N/A | CDI174-9610K 2 | CDI134-6456 | CDI194-1873 | CDI414-6220A12 | CDI184-0001 |
| 150 | 40 Amp | 6 | 92-95 | 0D082000-0G303045 | CDI114-7778 | N/A | CDI174-9610K 2 | CDI134-6456 | CDI194-5279 | CDI414-6220A16 | CDI184-0001 |
| 150 | 2 Stk. | 6 | 96-99 | 0G303046-0G960499 | CDI114-7778 | N/A | CDI174-9610K 2 | CDI134-6456 | CDI194-5279 | R84-826730A 4 | CDI184-0001 |
| 150 | 2 Stk. Carb. | 6 | 00-07 | 0G960500-0T408999 | CDI114-7509 | CDI144-7185 | CDI174-0002 | CDI134-6456-18 | CDI194-2115K 1 | R84-857166T 1 | CDI114-7509 |
| 150 | 2 Stk. EFI | 6 | 00-07 | 0G960500-0T408999 | CDI114-7509 | CDI144-7169 | CDI174-0002 | CDI134-6456-18 | CDI194-2115K 1 | R84-857166T 1 | CDI114-7509 |
| 175 | Black Max | 6 | 76-79 | 4301235-5593736 | CDI114-7778 | N/A | CDI174-5456 | CDI134-6456 | CDI154-6770 | CDI414-6220A 4 | CDI184-0001 |
| 175 | Black Max | 6 | 79-84 | 5593737-6618750 | CDI114-7778 | N/A | CDI174-5456 | CDI134-6456 | CDI154-6770 | CDI414-6220A 4 | CDI184-0001 |
| 175 | 9 Amp | 6 | 85-88 | 6618751-0C100860 | CDI114-7778 | N/A | CDI174-5456 | CDI134-6456 | CDI154-6770 | CDI414-6220A 4 | CDI184-0001 |
| 175 | 15 Amp | 6 | 85-88 | 6618751-0C100860 | CDI114-7778 | N/A | CDI174-5456-16 | CDI134-6456 | CDI194-8825K 1 | CDI414-6220A 4 | CDI184-0001 |
| 175 | 40 Amp | 6 | 89-90 | 0C100861-0C239552 | CDI114-7778 | N/A | CDI174-9610K 2 | CDI134-6456 | CDI194-1873 | CDI414-6220A12 | CDI184-0001 |
| 175 | 16 Amp | 6 | 90-91 | 0C239553-0D081999 | CDI114-7778 | N/A | CDI174-5456-16 | CDI134-6456 | CDI194-8825K 1 | CDI414-6220A 4 | CDI184-0001 |
| 175 | 40 Amp | 6 | 90-91 | 0C239553-0D081999 | CDI114-7778 | N/A | CDI174-9610K 2 | CDI134-6456 | CDI194-1873 | CDI414-6220A12 | CDI184-0001 |
| 175 | Xri EFI | 6 | 92-95 | 0D082000-0G303045 | CDI114-7778 | N/A | CDI174-9610K 2 | CDI134-6456 | CDI194-5279 | CDI414-6220A16 | CDI184-0001 |
| 175 | Xri EFI | 6 | 96-00 | 0G303046-0G840500 | CDI114-7778 | N/A | CDI174-9610K 2 | CDI134-6456 | CDI194-5279 | R84-826730A 4 | CDI184-0001 |
| 175 | 2 Stk. | 6 | 96-99 | 0G303046-0G960499 | CDI114-7778 | N/A | CDI174-9610K 2 | CDI134-6456 | CDI194-5279 | R84-826730A 4 | CDI184-0001 |
| 175 | 2 Stk. Carb. | 6 | 00-05 | 0G960500-0T408999 | CDI114-7509 | CDI144-7185 | CDI174-0002 | CDI134-6456-18 | CDI194-2115K 1 | R84-857166T 1 | CDI114-7509 |
| 175 | 2 Stk. EFI | 6 | 00-05 | 0G960500-0T408999 | CDI114-7509 | CDI144-7169 | CDI174-0002 | CDI134-6456-18 | CDI194-2115K 1 | R84-857166T 1 | CDI114-7509 |
| 175 | XR2 Sp. Jet | 6 | 97-05 | 0E151580-0E433133 | CDI114-4953-32 | N/A | CDI174-9873-16 | CDI134-6456-15 | CDI194-5279 | R84-832102A 2 | CDI184-0001 |
| 200 | Black Max | 6 | 78-79 | 4839034-5363917 | CDI114-7778 | N/A | CDI174-5456 | CDI134-6456 | CDI154-6770 | CDI414-6220A 4 | CDI184-0001 |
| 200 | Black Max | 6 | 79-81 | 53639S18-6073191 | CDI114-7778 | N/A | CDI174-5456 | CDI134-6456 | CDI154-6770 | R84-87266A1 | CDI184-0001 |
| 200 | 15 Amp | 6 | 82-90 | 6073192-0C239553 | CDI114-7778 | N/A | CDI174-5456-16 | CDI134-6456 | CDI194-8825K 1 | CDI414-6220A 4 | CDI184-0001 |
| 200 | 16 Amp | 6 | 85-90 | 6625221-0C239553 | CDI114-7778 | N/A | CDI174-5456-16 | CDI134-6456 | CDI194-8825K 1 | CDI414-6220A 4 | CDI184-0001 |
| 200 | Xri 40 Amp | 6 | 89-91 | 0C100861-0G303045 | CDI114-7778 | N/A | CDI174-9610K 2 | CDI134-6456 | CDI194-1873 | CDI414-6220A12 | CDI184-0001 |
| 200 | 16 Amp | 6 | 89-91 | 0D082000-0G201874 | CDI114-7778 | N/A | CDI174-5456-16 | CDI134-6456 | CDI194-8825K 1 | CDI414-6220A16 | CDI184-0001 |
| 200 | 40 Amp | 6 | 89-91 | 0G201875-0G30345 | CDI114-7778 | N/A | CDI174-9610K 2 | CDI134-6456 | CDI194-1873 | R84-826730A 4 | CDI184-0001 |
| 200 | 2 Stk. | 6 | 92-00 | 0G303046-0G960499 | CDI114-7778 | N/A | CDI174-9610K 2 | CDI134-6456 | CDI194-5279 | R84-826730A 4 | CDI184-0001 |
| 200 | 2 Stk. Carb | 6 | 00-05 | 0G960500-1B226999 | CDI114-7509 | CDI144-7185 | CDI174-0002 | CDI134-6456-18 | CDI194-2115K 1 | R84-857166T 1 | CDI114-7509 |
| 200 | 2.5L EFI | 6 | 92-99 | 0D082000-0G840500 | CDI114-7778 | N/A | CDI174-9610K 2 | CDI134-6456 | CDI194-5279 | CDI414-6220A16 | CDI184-0001 |
| 200 | EFI | 6 | 00-05 | 0G960500-0T408999 | CDI114-7509 | CDI144-7169 | CDI174-0002 | CDI134-6456-18 | CDI194-2115K 1 | R84-857166T 1 | CDI114-7509 |
| 210 | Sp Jet | 6 | 97-99 | 0E3703S18-0E433133 | CDI114-4953-32 | N/A | CDI174-9873-16 | CDI134-6456-15 | CDI194-5279 | R84-832102A 2 | CDI184-0001 |
| 220 | - | 6 | 87-88 | 0B117316-0C100860 | CDI114-7778 | N/A | CDI174-5456-16 | CDI134-6456 | CDI194-8825K 1 | R84-92432A 6 | CDI184-0001 |
| 225 | - | 6 | 81-93 | 5628028-0D280812 | CDI114-7778 | N/A | CDI174-5456-16 | CDI134-6456 | CDI194-8825K 1 | N/A | CDI184-0001 |
| 225 | 2.5L EFI | 6 | 95-00 | 0D935638-0G569900 | CDI114-7778 | N/A | CDI174-9610K 2 | CDI134-6456 | CDI194-5279 | CDI414-6220A16 | CDI184-0001 |
| 225 | 3.0L | 6 | 93-94 | 0D280813-0G129221 | CDI114-7509K1 | N/A | R398-821935K 1 | N/A | Alternator | R84-825433A 7 | CDI114-7509K 1 |
| 225 | 3.0L | 6 | 94-95 | 0G129222-0G303045 | CDI114-7509K1 | N/A | R398-821935K 2 | N/A | Alternator | N/A | CDI114-7509K 1 |
| 225 | 3.0L | 6 | 96-01 | 0G303046-0T408999 | CDI114-7509 | N/A | R398-821935K 2 | N/A | Alternator | N/A | CDI114-7509 |
| 240 | Sp Jet | 6 | 00-05 | 0E373939-0E406399 | CDI114-7509 | N/A | CDI174-0002 | CDI134-6456-18 | CDI194-2115K 1 | R84-877614A 2 | CDI114-7509 |
| 250 | 3.0L | 6 | 94-95 | 0G129222-0G303045 | CDI114-7509K1 | N/A | R398-821935K 2 | N/A | Alternator | N/A | CDI114-7509K 1 |
| 250 | 3.0L | 6 | 96-00 | 0G303046-0G840500 | CDI114-7509 | N/A | R398-821935K 2 | N/A | Alternator | N/A | CDI114-7509 |
| 250 | XB 3.0L | 6 | 00-02 | 0G980600-0T408999 | CDI114-7509 | N/A | R398-821935K 2 | N/A | Alternator | R84-825433A11 | CDI114-7509 |
| 300 | ProMax | 6 | 98-01 | 0G980600-0T408999 | CDI114-7509 | N/A | R398-821935K 2 | N/A | Alternator | R84-825433A11 | CDI114-7509 |
Premier Repair Services Are Available for All Part Numbers That Begin with “R.”** OEM Part Numbers Currently Unavailable from CDI Electronics
Please see the part number page for additional information that will help you identify your correct part.
(B-CDI114-7452K1)
| SKU | B-CDI114-7452K1 |
| Model # | 114-7452K 1 |
| Barcode # | 736983850676 |
| Brand | CDI ELECTRONICS |
| Shipping Weight | 0.4000kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.060m |
| Shipping Length | 0.150m |
