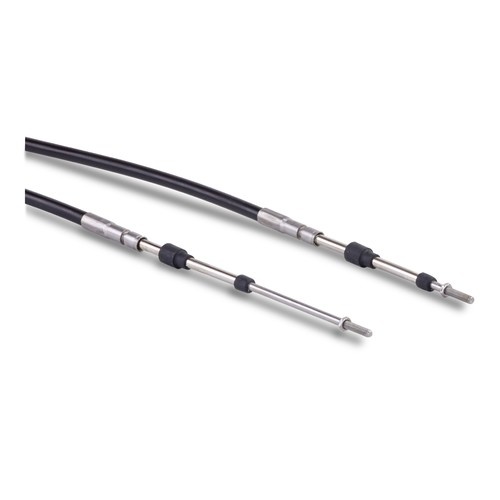

CCX633 XTREME Premium Control Cables

CCX633 XTREME Premium Control Cable 10ft - Black 303310

Codes (ref Description below...)

Calculate Shipping

Description
Specifications

Traditional Cables vary by the stiffness of the core wire and how tightly it fits in the casing. Thus the classic trade-offs that have existed in control cable design are
• Stiffer core/tighter fit — offers less lost motion, but is harder to move. With longer and more complex runs, cable movement becomes progressively more difficult.
• More flexible core/looser fit — has an easier feel, but has more lost motion. This approach leads to an overall sloppy feel, RPM variation or difficult gear engagement.

These trade-offs aren’t an issue with XTREME™ Cables because they are different – really different XTREME’s unique design incorporates a patent-pending splined core. Ridges on the core allow a close fit with the cable’s inner liner, but with minimum contact, so the core glides back and forth smoothly like a skater on ice.

RESULT a control cable with easy movement AND minimum lost motion.

Specifications
• Particularly suited to complex routing and longer runs
• Fits directly into Dometic Seastar® controls and all controls that accept universal type Cables
• Stainless steel and chrome brass end fittings. 10-32 UNF threads
• Nominal 75mm travel
• Flexible multi-strand galvanised steel core with splined jacket
• 100mm minimum bend radius
• Parallel lay wire strand reinforced outer jacket for superior strength and flexibility
• Suits stern drives, inboards and outboards
• Ideal for multi-station and longer run installations
• Wire strand reinforced outer jacket, 8.6mm outside diameter

Black	Red	Length Meters	Length Feet
-	303205	1.52	5
-	303206	1.82	6
-	303207	2.13	7
-	303208	2.44	8
-	303209	2.74	9
303310	303210	3.05	10
303311	303211	3.35	11
303312	303212	3.66	12
303313	303213	3.96	13
303314	303214	4.27	14
303315	303215	4.57	15
303316	303216	4.88	16
303317	303217	5.18	17
303318	303218	5.49	18
303319	303219	5.79	19
303320	303220	6.1	20
303321	303221	6.4	21
303322	303222	6.71	22
303323	303223	7.01	23
303324	303224	7.32	24
303325	303225	7.62	25
303326	303226	7.92	26
303327	303227	8.23	27
303328	303228	8.53	28
303329	303229	8.84	29
303330	303230	9.14	30
303332	303232	9.75	32
303334	303234	10.36	34
303336	303236	10.97	36
303338	303238	11.58	38
303340	303240	12.19	40
303342	303242	12.8	42
303344	303244	13.41	44
303346	303246	14.02	46
303348	303248	14.63	48
303350	303250	15.24	50
303352	303252	15.85	52
303354	303254	16.46	54
303356	-	17.07	56
303358	-	17.68	58
303360	-	18.29	60
303362	-	18.91	62
303364	-	19.51	64
303366	-	20.12	66
303368	-	20.72	68
303370	-	21.34	70
303372	-	21.95	72
