Blue Sea Systems A-Series Toggle Circuit Breakers BS-7205
Red 10 Amps
$40.00
RRP $52.90
SAVE $12.90 (24%)
In Stock (3
) - Dispatches in 2
days
Combines switching and circuit protection into a single device.
• The standard circuit breaker for Blue Sea Systems Traditional Metal Power Distribution Panels
• Single pole is frequently used for AC or DC Branch circuit protection
• Double pole is typically used for AC Main circuit protection
• Trip Free – cannot be held closed after trip
Specifications
• Voltage Nominal Operating 120/240V AC
• Operating Temperature -40-85° C
• Switching Cycles 1000 @ rated amps and volts
• Terminal Screw- #10-32
| BLA Code | Colour | Amps | Pole | Max. DC Volts |
|---|---|---|---|---|

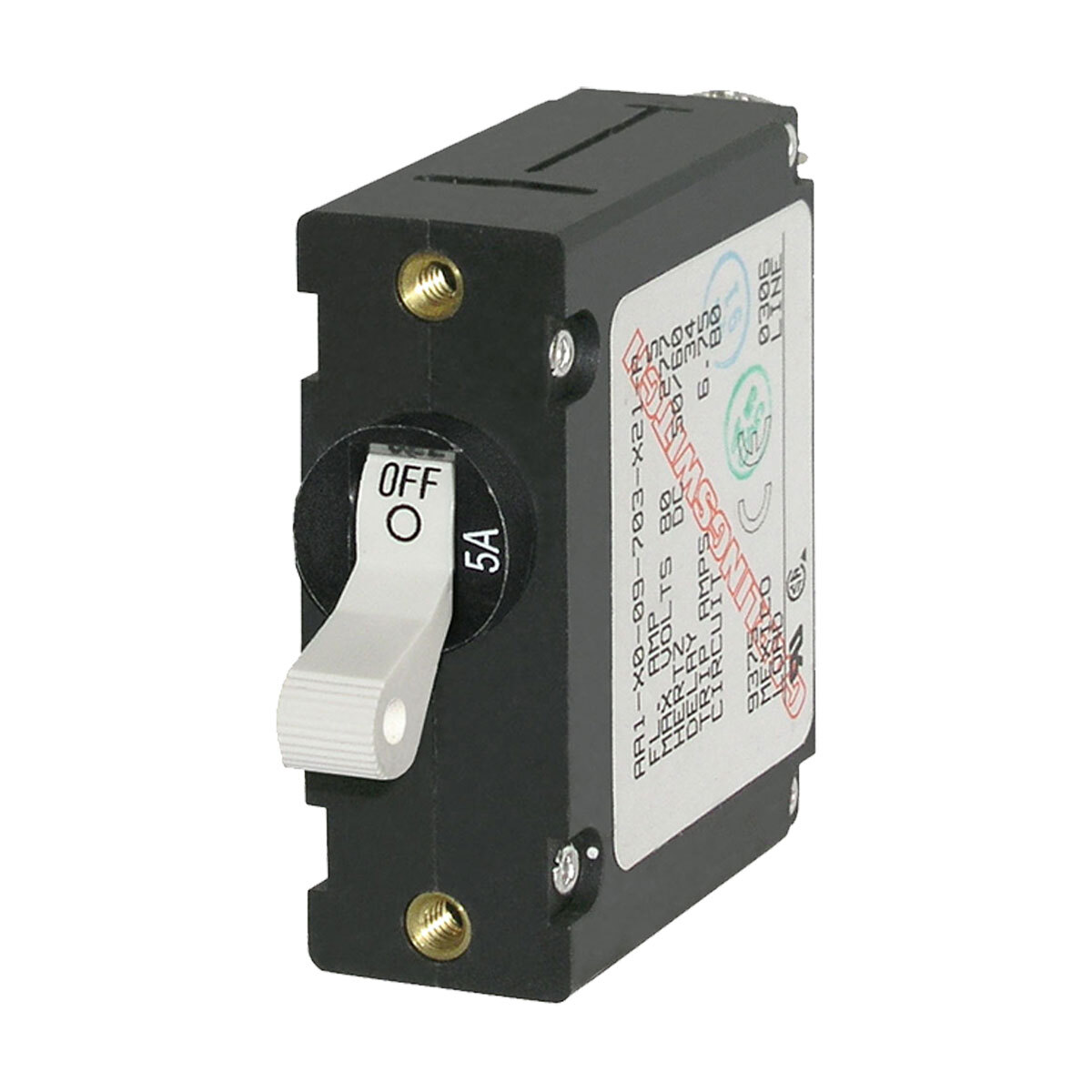

| BS-7202 | White | 5 | 1 | 65 |
| BS-7205 | Red | 10 | 1 | 65 |
| BS-7206 | White | 10 | 1 | 65 |
| BS-7208 | Black | 15 | 1 | 32 |
| BS-7210 | White | 15 | 1 | 65 |
| BS-7212 | Black | 20 | 1 | 65 |
| BS-7213 | Red | 20 | 1 | 32 |
| BS-7214 | White | 20 | 1 | 65 |

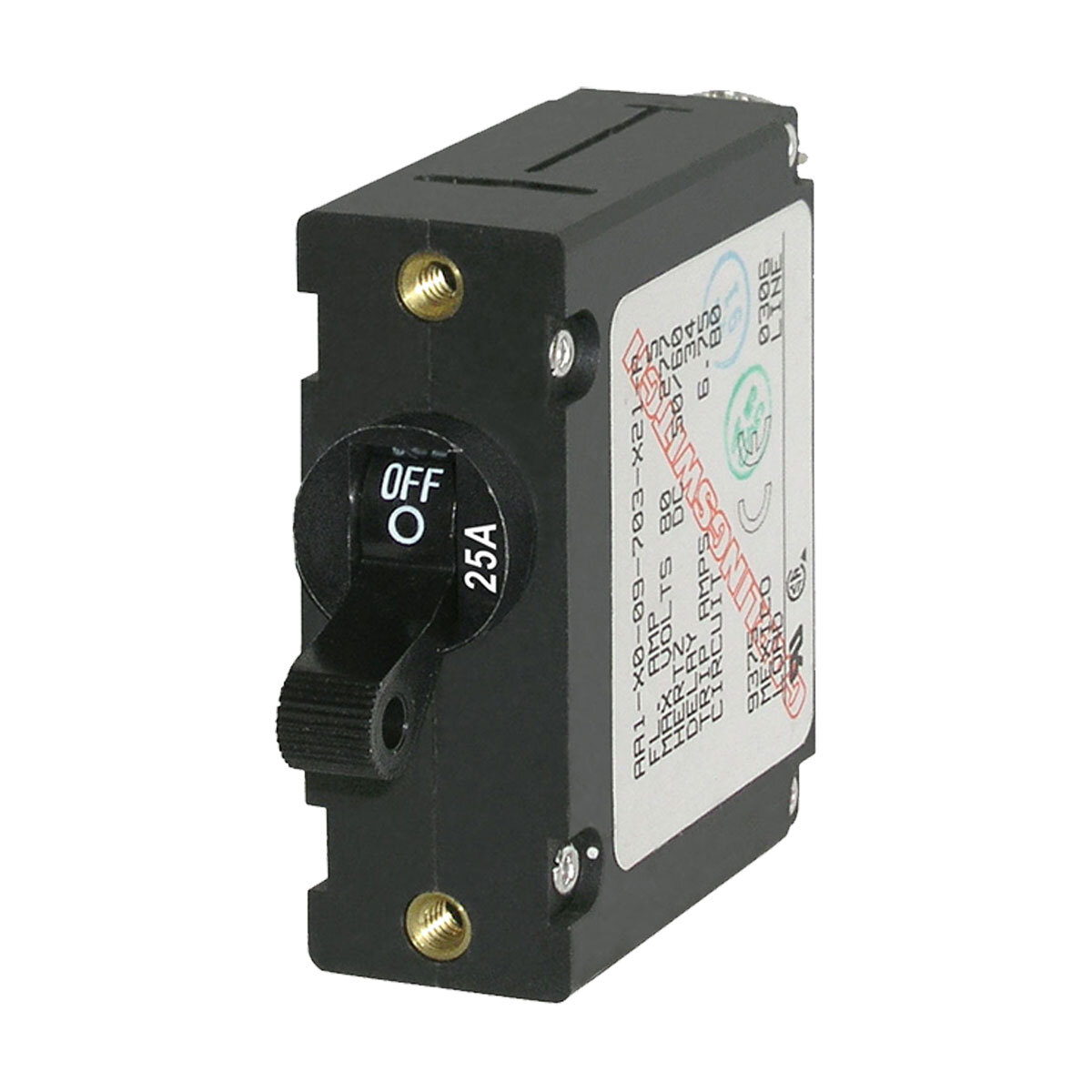

| BS-7216 | Black | 25 | 1 | 65 |
| BS-7218 | White | 25 | 1 | 65 |
| BS-7220 | Black | 30 | 1 | 32 |
| BS-7221 | Red | 30 | 1 | 65 |
| BS-7222 | White | 30 | 1 | 65 |
| BS-7224 | Black | 40 | 1 | 65 |
| BS-7226 | White | 40 | 1 | 32 |
| BS-7228 | Black | 50 | 1 | 32 |
| BS-7229 | Red | 50 | 1 | 65 |
| BS-7230 | White | 50 | 1 | 32 |
| BS-7299 | White | 8 | 5 | 65 |
| Double Pole Circuit Bre | ||||
| BS-7233 | White | 10 | 5 | 65 |
| BS-7242 | White | 50 | 5 | 65 |
(B-P-BS-7202)
| SKU | B-P-BS-7202 |
