BLA Twin Core Twin Sheath Tinned Cable 116351 116350
116351
$40.00
RRP $52.90
SAVE $12.90 (24%)
In Stock (18
) - Dispatches in 2
days

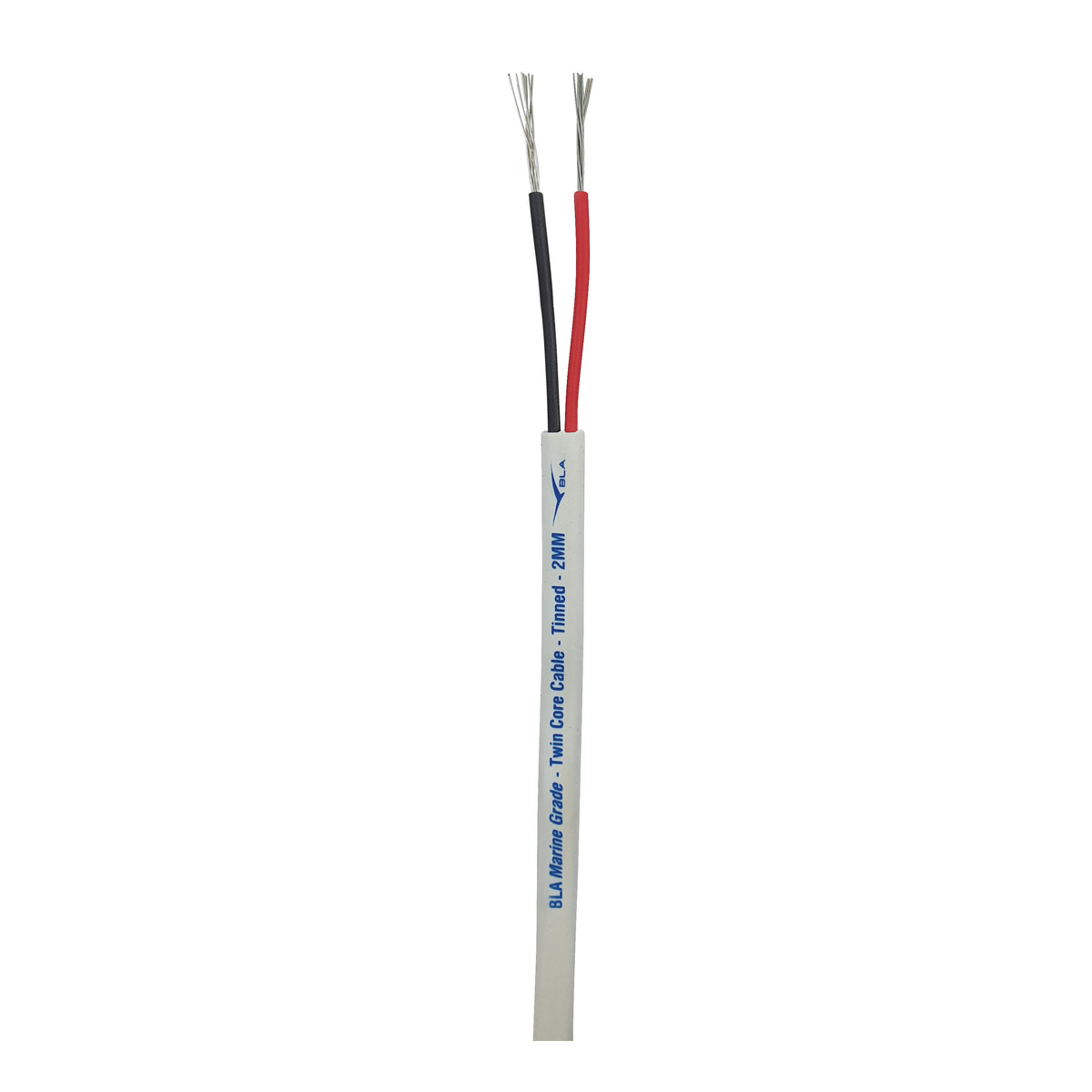

Marine quality, twin core low voltage wiring with external sheath for extra protection in vulnerable applications. V90 PVC insulation and sheath to AS/NZS 3808, tin coated copper wire conductor to AS/NZS 1125. Supplied in 50 and 100 metre metal centred coils. Red/black core with white outer sheath, printed with sizing and metre marks.
Product Details:
| Code 50mm | Code 100m | Auto Size mm | Nominal Area mm² | Strand O.D. #/mm | Rating @ 30° C amp | Insulation Thickness mm | O.D. mm |
|---|---|---|---|---|---|---|---|
| 116350 | 116351 | 2 | 2x0.5 | TBC | 5 | 0.5 / 0.6 | 3.5x5.5 |
| 116352 | 116353 | 3 | 2x1.13 | 16/0.30 | 10 | 0.5 / 0.6 | 3.7x6.0 |
| 116354 | 116355 | 4 | 2x1.85 | 26/0.30 | 15 | 0.5 / 0.6 | 4.0x6.7 |
| 116356 | 116357 | 6 | 2x4.58 | 65/0.30 | 50 | 0.6 / 0.8 | 5.7x9.6 |
(B-P-116350)
| SKU | B-P-116350 |
