BLA Marine Performance Lithium Hybrid Range 111170

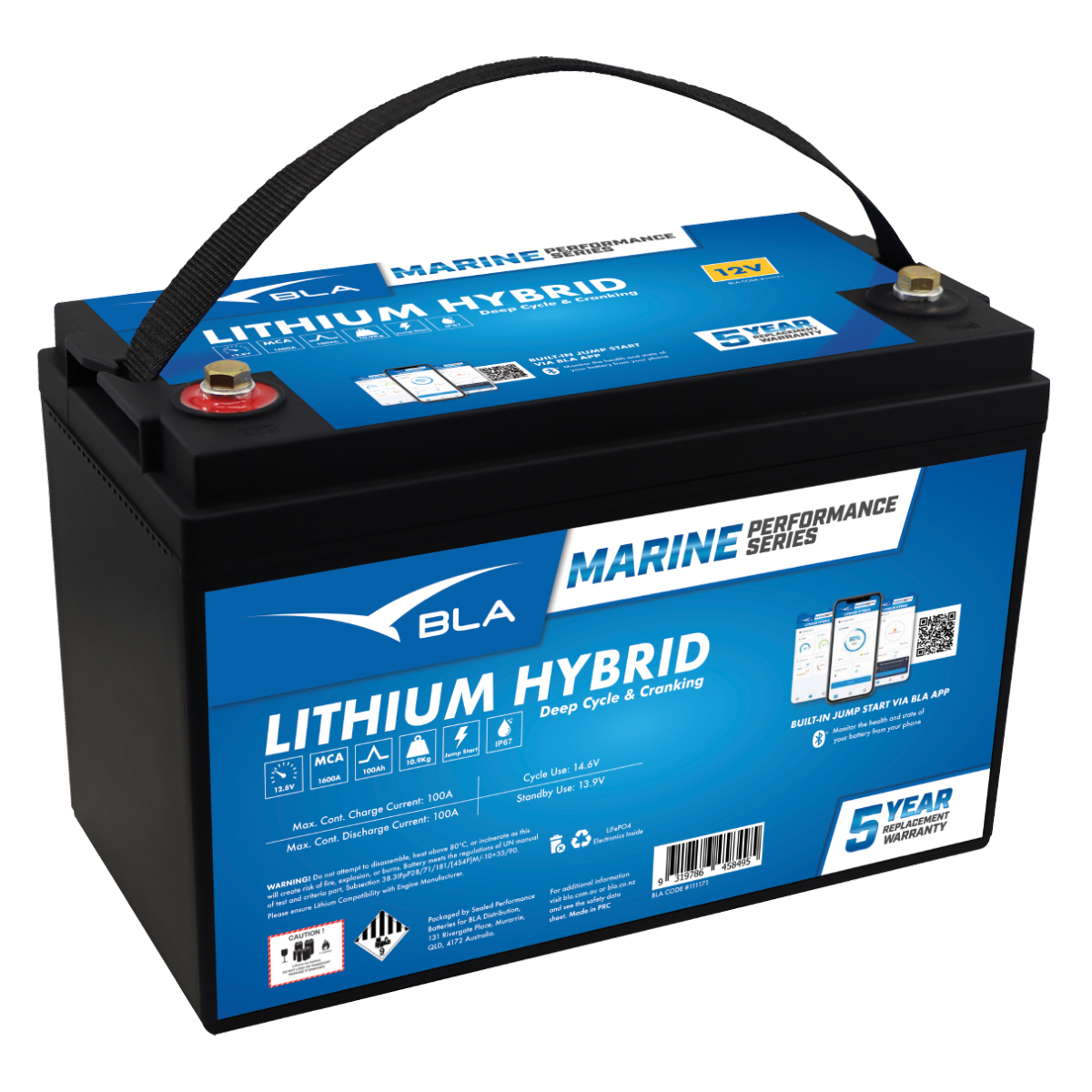

Marine Performance Lithium Hybrid Range
BLA's new range of Lithium Hybrid batteries are a dual-purpose starting and deep-cycle lithium solution that meets or exceeds the warranty requirements of Mercury Marine for outboards listed in the table below. The BLA Marine Performance batteries can withstand high-heat environments due to their heat-resistant technology outputting up to 1600 Marine Cranking amps to start even the new 600hp Mercury outboards. As an added feature, the battery comes with a free Bluetooth app monitoring your battery and also a back-up Jump start function so users can be confident that they will be able to run their GPS fish finder, Livewell pumps and any other accessories without sacrificing starting ability. If your motor will not start simply go into the app, push the jump start button and start your outboard. Utilising premium A123 pouch cells used by Mercedes and BMW they have been specifically selected due to their inherent ability to be discharged and charged at a high rate. This gives installers flexibility as it can be charged directly from the outboards alternator. The future or marine cranking batteries has arrived.
Features:
Lightweight LiFePO4 chemistry
Bluetooth monitoring app
Jump start feature via BT app
High CCA capabilities
Charge directly from the alternator
Standard M27 & M31 battery case sizes
Engineered BMS for high continuous charge/discharge
Pouch cell design for discharge and charging flexibility
Heat resistant technology for high-heat applications
IP 67 rated
IEC certified
5-year warranty
Product Details:
| Technical Specifications | Mercury Requirements | |
|---|---|---|
| Minimum cranking amps | 800A for 8 second minimum at 20°F (-7°C) | |
| Peak charge acceptance | 165A 20-130 °F (-7-55°C) for 1 minute | |
| Max charge/alternator size | 150A 20-130 °F (-7-55°C) | |
| Max charge voltage/alternator output | 14.8V | |
| Reserve capacity | (RC25 @ 8°F) 135 minutes | |
| Ingress Protection (IP) rating | IP67 or greater | |
| Weight |
| Code | Description | Minimum cranking amps | Peak charge acceptance | Max charge/alternator size | Max charge voltage/alternator output | Reserve capacity | Ingress Protection (IP) rating | Weight | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 111170 | Lithium Hybrid 12V 1200MCA | 800A (15 sec @ -7oC) | 165A (1 min @ -7oC) | 150A (1 min @ -7oC) | 14.4V - 14.8V (15.6V BMS cut off) |
192 mins @ 25A | IP67 | 10.3kg | ||||||||
| 111171 | Lithium Hybrid 12V 1600MCA | 850A (15 Sec @ -7oC | 165A (1 min @ -7oC) | 150A (1 min @ -7oC) | 14.4V - 14.8V (15.6V BMS cut off) |
240 mins @ 25A | IP67 | 10.9kg |
(B-P-111170)
| SKU | B-P-111170 |
