BLA Electric Winches - 2500, 3000, 3500 211212
Model 2500
$401.00
RRP $549.00
SAVE $148.00 (27%)
In Stock (11
) - Dispatches in 2
days

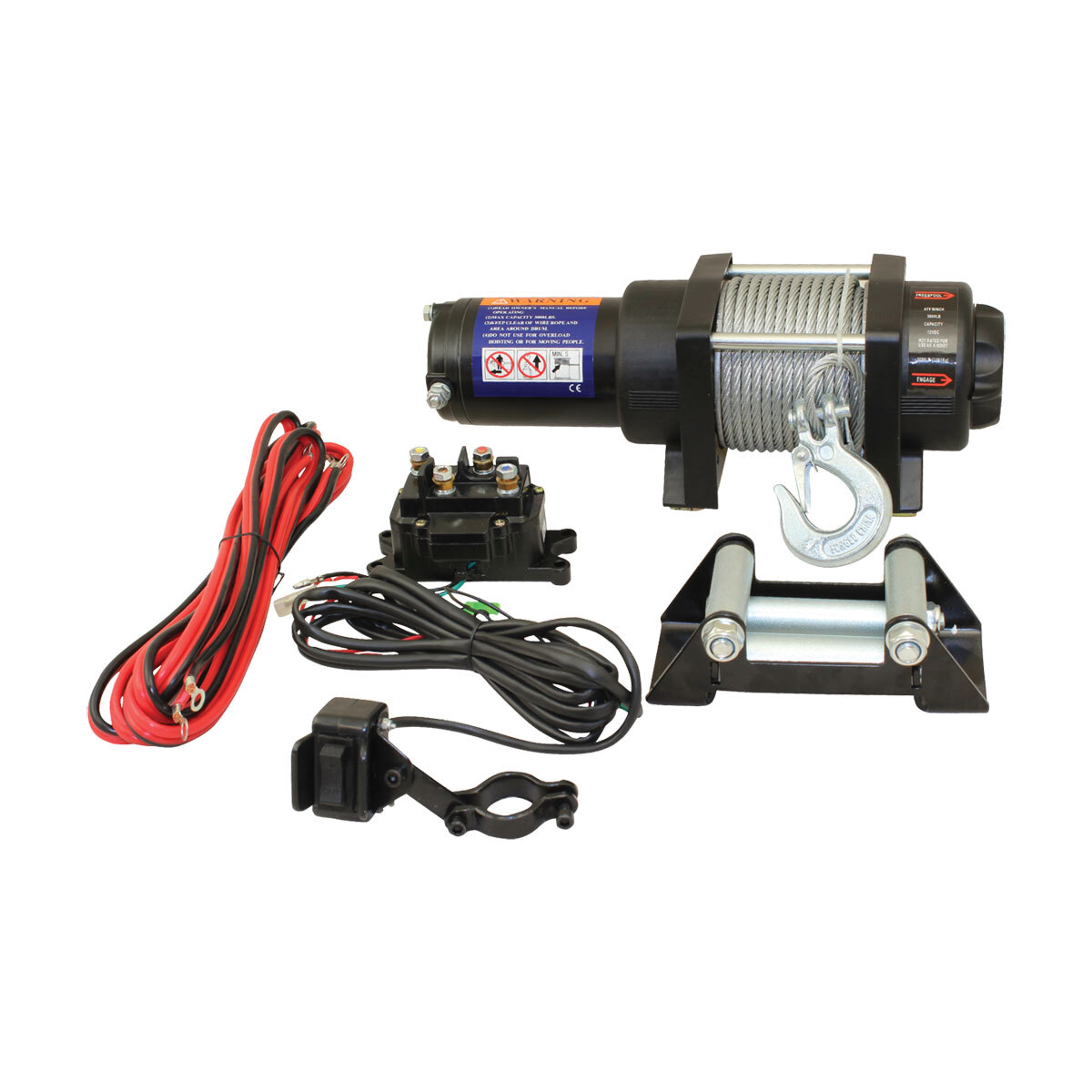

General purpose 12 volt winches with permanent magnet motor and planetary gearing. A spline joint clutch permits free-wheeling when powering out is not required. These electric winches are designed for intermittent duty operation only (such as winching a boat on/off a trailer) and are not suitable for industrial or hoisting applications. Supplied with in-line circuit breaker, galvanised wire with snap hook, solenoid, roller wire guide, and two way hard wired switch.
Features
• Power-in and power-out
• 1531 gear ratio
• Free-spooling clutch
| BLA Code | Model | Single Line Stall kg | Suggested Boat Length m | Suggested Boat Weight kg | Cable Size mm x m | Max Current amps | Motor HP | Weight kg | Dim. L x W x H mm |
|---|---|---|---|---|---|---|---|---|---|
| 211212 | 2500 | 1134 | 5.3 | 2800 | 4.5 x 15 | 140 | 0.9 | 6 | 296 x 183 x 107 |
| 211222 | 3000 | 1361 | 5.6 | 3400 | 5 x 15 | 168 | 1.1 | 8.5 | 310 x 188 x 125 |
| 211224 | 3500 | 1587 | 6 | 3900 | 5.5 x 15 | 230 | 1.3 | 10 | 321 x 199 x 120 |
N.B. Suggested boat length and weight is as a guide only. Other factors including ramp incline and boat trailer friction need to be taken into consideration.
