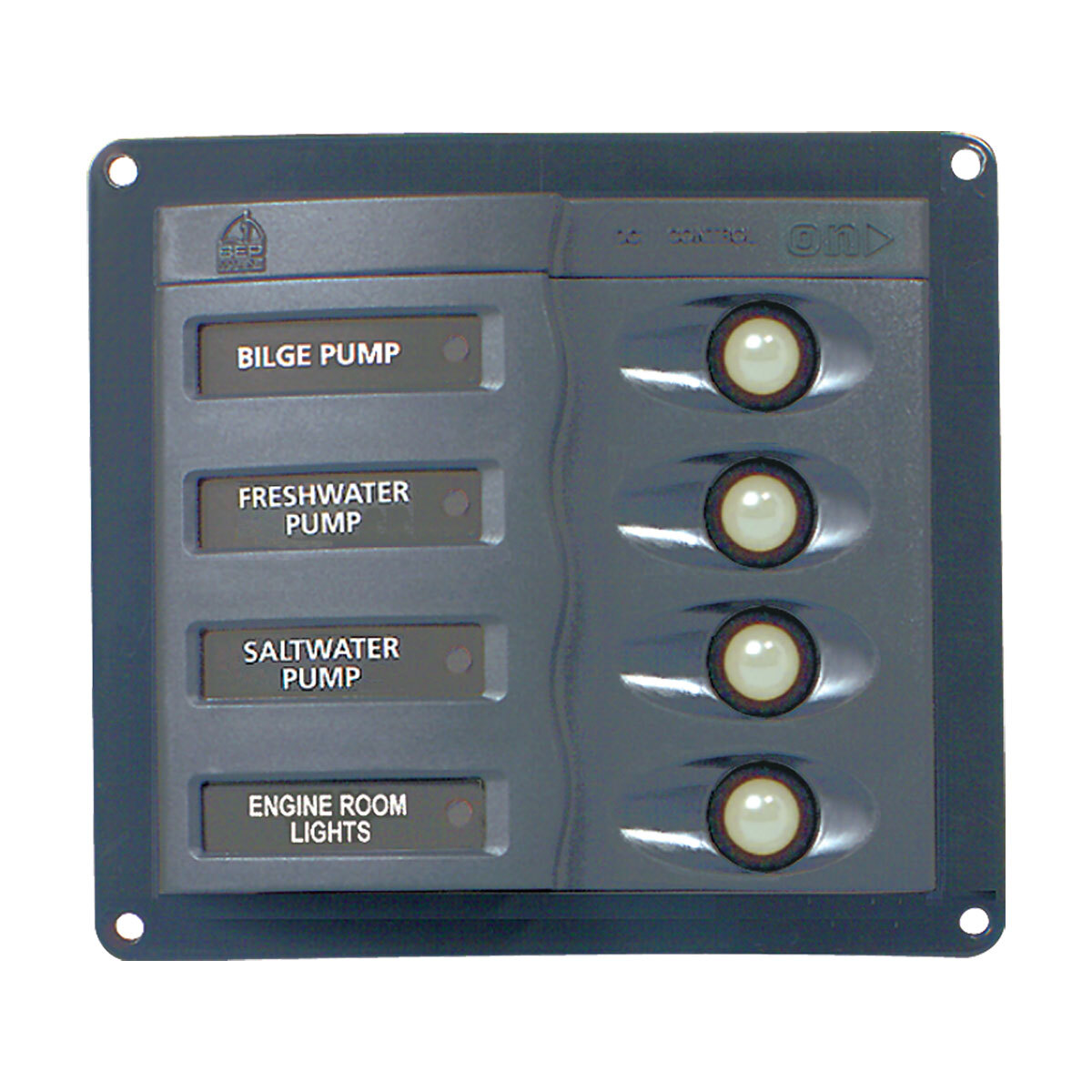

Available with four or eight 10mm red LEDs indicating important ‘systems in operation’ information (pumps, engine room, lights etc). Ideally suited for flybridge or remote dash position. Back lighting on labels. 113271 include alarm and mute switch. Four gang panel supplied with 113700 label set. Eight gang panel supplied with 113700 and 113704 label sets.
Features
• 40mm intrusions and 3 r/h mount screws
BLA Code | Volts | LEDs | Dimension wxh mm | Cut Out mm | Alarm & Mute |
---|---|---|---|---|---|
113270 | 45627 | 4 | 127 x 115 | 107 x 95 | No |
113271 | 45627 | 3 + 1 switch | 127 x 115 | 107 x 95 | Yes |
113272 | 45627 | 8 | 239 x 115 | 219 x 95 | No |
Drop resistors required for LEDs in 24 volt installations.
113461 Drop resistor BEP 8 way suits 113272
(B-P-113270)
SKU | B-P-113270 |
