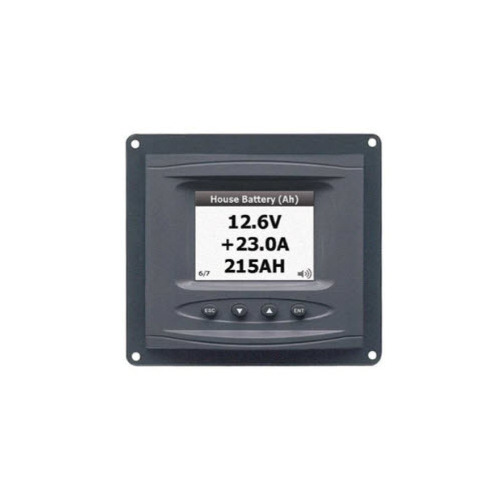

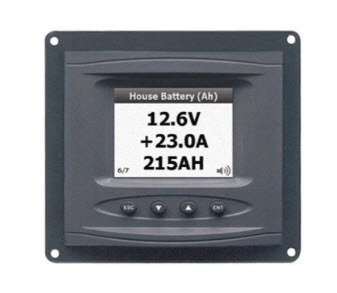

BEP DC Systems Monitor (DCSM) 113386

This state of the art full colour DC monitor provides a range of system monitoring functions suitable for today’s modern vessels. With the complexities of modern DC electrical installations and the need for a wider array of monitoring combinations the new DCSM provides a functional multi-purpose display system suitable for a variety of applications. With the development of new, more accurate tank monitoring technology, BEP is now better able to satisfy multiple information requirements for such things as fuel, freshwater, grey water and black water. The DCSM display features a clear, extra large type face allowing for more detailed on-screen information and increased clarity. The simple menu, positive touch buttons and back lit screen make this multi-function monitoring system easy and intuitive to use.

Features
• Eight generic, user configurable inputs
• Programmable high/low audio/visual alarms for volts, amps and tank levels
• Backlit keypad and dimmable screen
• Can be panel or surface mounted

Kit Includes
• BLA Code 113403 – 5m x two core pre-terminated screened cable
• BLA Code 113457 – 450A / 50 mV shunt

Monitor
• 2.8″ Colour QVGA LCD display
• Input voltage 8-32VDC
• Charge/discharge amps for up to two banks
• Capacity remaining in A/h and %
• Battery condition
• Tank fluid level
• Circuit status

Accessories
113385 Meter only
113383 600 DCSM kit – meter only + panel conversion for old DCM to DCSM
55-GAS-SM Spray Proof Gasket
