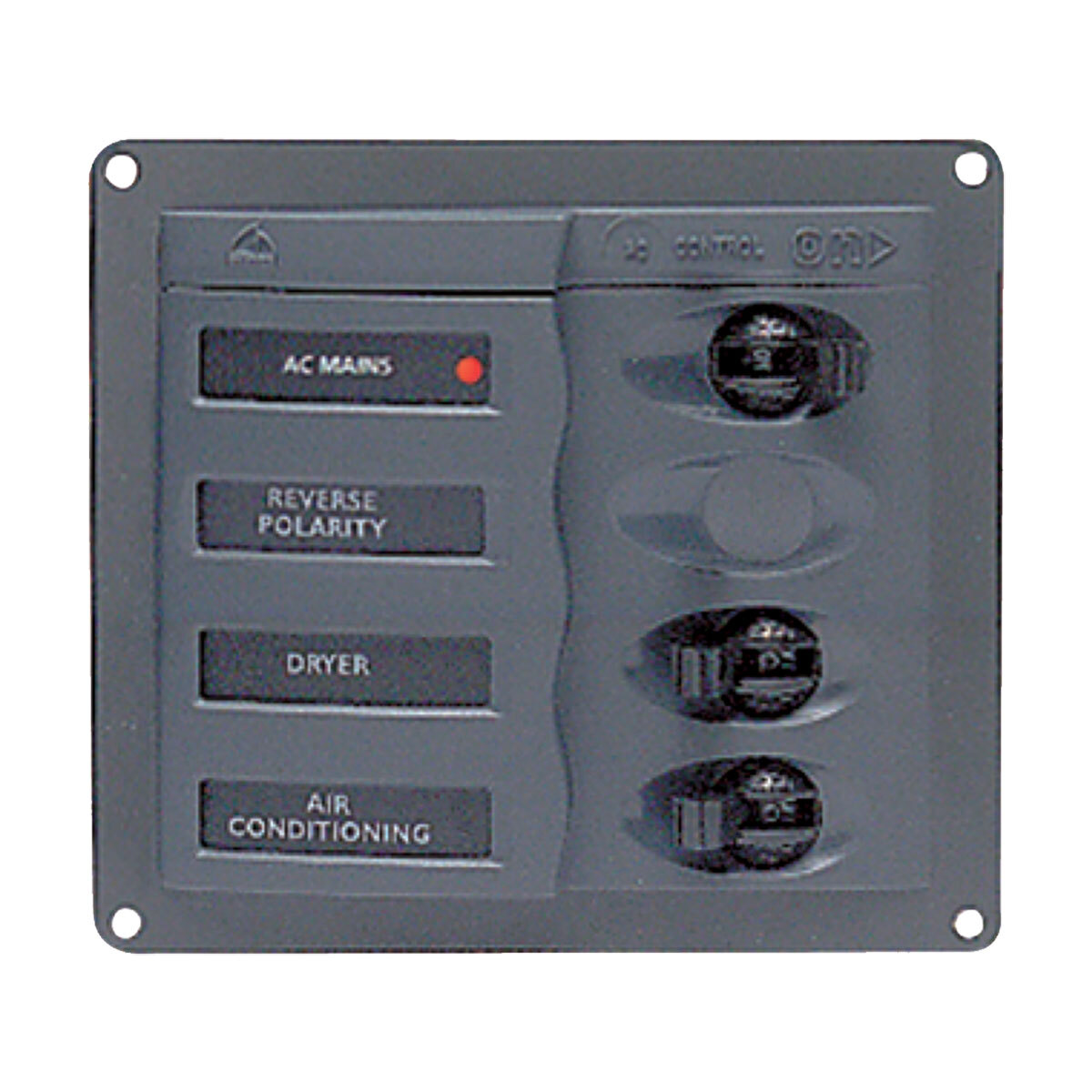

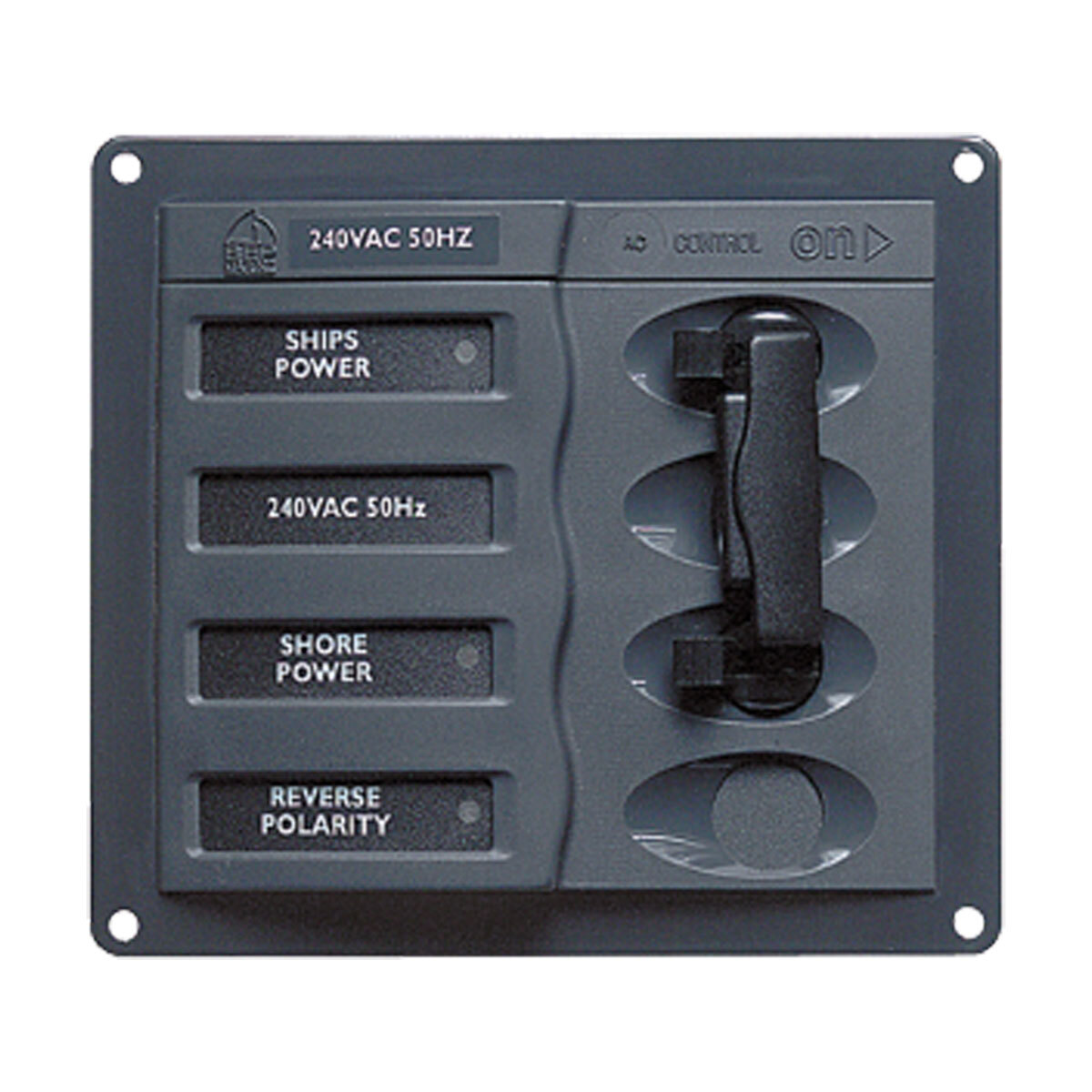

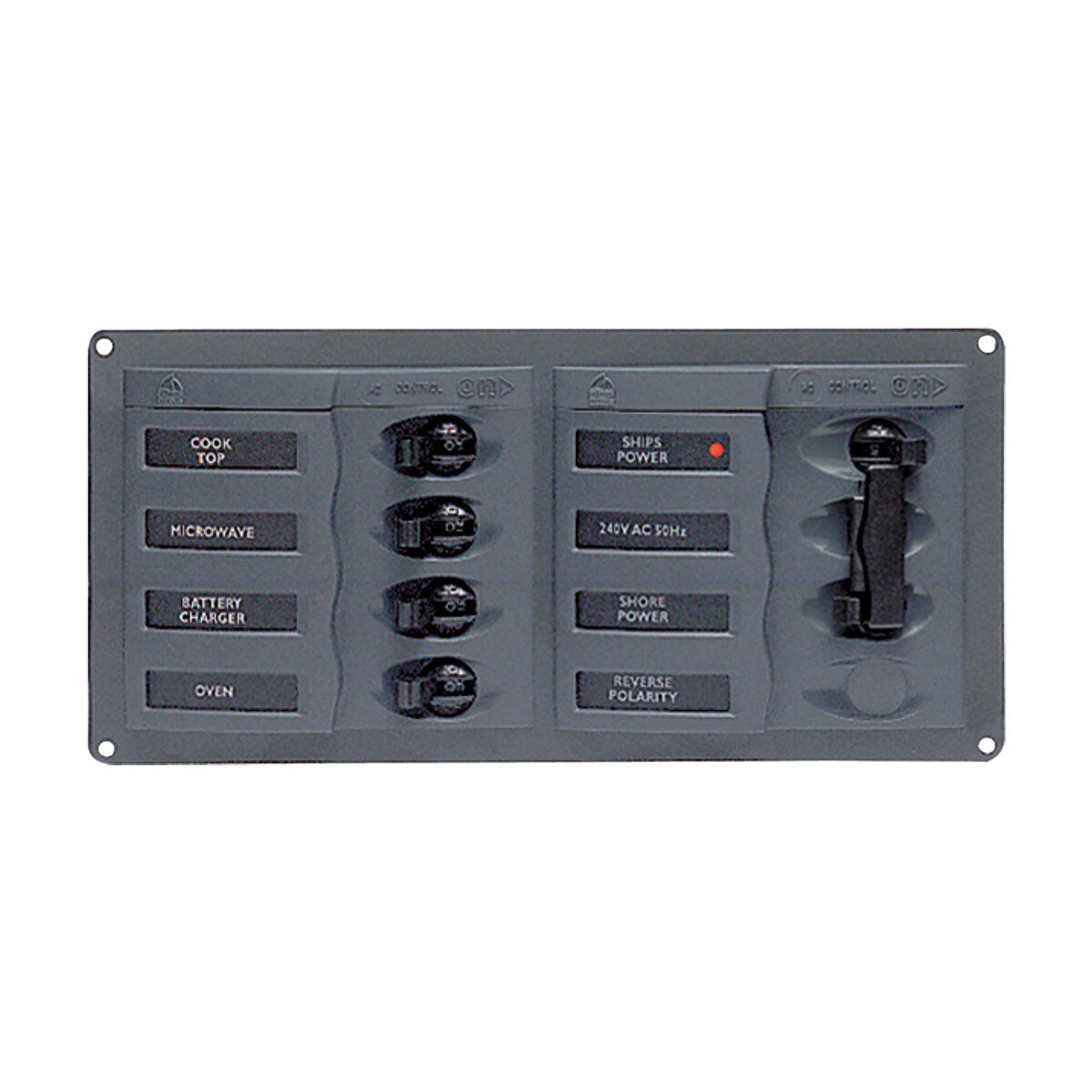

BEP Contour AC Circuit Breaker Control Panels 113219
2 + mains
Contour style circuit breaker control panels with two double pole mains circuit breakers and change over control slide. Ship/shore transfer switch Features a slide gate that will only allow either shore power or ship power to be operational at any one time (113219 and 113221 excluded). For standard twin input systems such as one shore power and one genset input use 113218 or like. Supplied with either analogue or digital metering analogue meters for either AC volts or amps; digital meters switchable to show AC volts, amps and frequency.
Features
• Analogue volt meters, 2.5% of full scale accuracy
• AC digital meters, high resolution 12mm high figures in LCD display, low power dissipation, 200 mV sensitivity, 1% accuracy
• Durable black powder coated marine grade aluminium base panel
• Stylish curved plastic facias covering all circuit breakers
• Marine quality, magnetic, hydraulic, UL listed, trip free breakers
• Backlit labels (set five supplied), refer page 157
• Suitable sized negative busbar supplied, refer page 183
• Red LED identification for circuits ‘on’
• Green LED back lighting for meters and labels
• Two double pole mains circuit breakers with change over control slide for ship or shore power input (113219 and 113221 excluded)
• Rated to 250v AC (110 volt option available)
• Digital metered panels supplied with AC volt transducer module and 2 x current transformers
• Reverse polarity indicator
With the flexibility of the ‘Contour’ four way plastic modules, BEP can build panels to custom requirements if requested.
| BLA Code | Circuits | Overall Size W x H mm | Cut Out Size W x H mm | Intrusion mm | Meter | Label Sheet | System Circuit Breakers Single Pole 5 amp | 10 amp | 15 amp | 20 amp | 25 amp | Mains Circuit Breakers Double Pole 20 amp | 25 amp | 30 amp | 50 amp |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 113218 | 2 + mains | 127 x 115 | 107 x 95 | 65 | None | 5 | - | - | - | - | - | 2 | - | - | - |
| 113219 | 2 + mains | 127 x 115 | 107 x 95 | 65 | None | 5 | - | 2 | - | - | - | 1 | - | - | - |
| 113220 | 4 + mains | 239 x 115 | 219 x 95 | 65 | None | 5 | - | 2 | 2 | - | - | 2 | - | - | - |
| 113221 | 6 + mains | 127 x 200 | 107 x 180 | 65 | None | 5 | 1 | 2 | 3 | 1 | - | 1 | - | - | - |
| 113222 | 8 + mains | 239 x 200 | 219 x 180 | 65 | Digital | 5 | 1 | 3 | 3 | 1 | - | - | 1 | 1 | - |
| 113224 | 8 + mains | 239 x 200 | 219 x 180 | 65 | Analogue | 5 | 1 | 3 | 3 | 1 | - | - | 1 | 1 | - |
| 113226 | 8 + mains | 127 x 385 | 107 x 365 | 65 | Digital | 5 | 1 | 3 | 3 | 1 | - | - | 1 | 1 | - |
| 113230 | 12 + mains | 351 x 200 | 331 x 180 | 65 | Digital | 5 | 1 | 4 | 5 | 1 | 1 | - | - | 1 | - |
| 113234 | 16 + mains | 351 x 200 | 331 x 180 | 65 | Digital | 5 | 1 | 5 | 7 | 2 | 1 | 1 | - | - | 1 |
12 volt supply is also required to power LEDs. On 24 volt vessels, the drop resistors below will be required to supply 12 volt to the LED circuit.
113461 Drop resistor BEP 8 way suits 113220 & 113221
113462 Drop resistor BEP 12 way suits 113224 & 113226
113463 Drop resistor BEP 16 way suits 113230
Accessories
113366 PCB Assembly 4 way AC
113367 PCB Assembly 8 way AC
113368 PCB Assembly 12 way AC
(B-P-113218)
| SKU | B-P-113218 |
