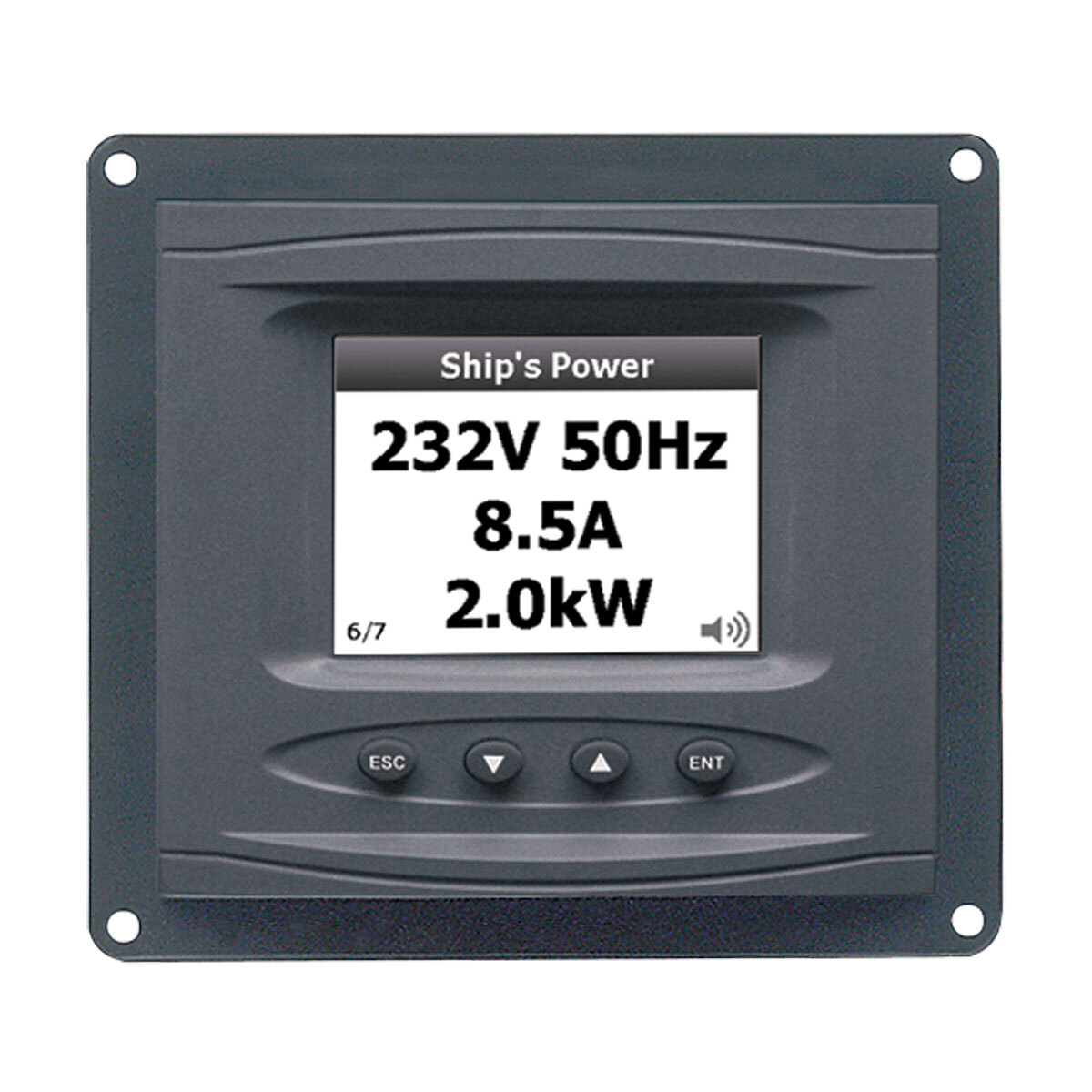

BEP AC Digital Monitoring System 113418

Designed and manufactured by BEP, this state of the art full colour AC monitor provides a range of system monitoring functions suitable to today’s modern vessels. With the complexities of modern AC electrical installations and the need for a wider array of monitoring combinations the new ACSM provides a functional multi-purpose display system suitable for a variety of applications. The ACSM display Features a clear, extra large type face allowing for more detailed on-screen nformation and increased clarity. The simple menu, positive touch buttons and back lit screen make the multi-function monitoring system easy and intuitive to use. When fitted, the gasket provides a water ingress protection level of IPX5 (Protection against low pressure jets of water) for AC and DC systems monitors.

Monitor
• 2.8” Colour QVGA LCD display
• Input voltage 8-32VDC
• AC volts, amps, frequency and true power

Features
• Three generic user configurable inputs
• Displays data in analogue, digital and graphic forms
• Output for load shedding
• Programmable high/low audio/visual alarms for each input
• Supplied Installation

Kit Includes
• BLA Code 112888 – AC Voltage transducer for up to 3 voltage inputs
• BLA Code 112886 x 2 – AC current transformer

Accessories
55-600-ACSM-kit Conversion Kit – meter only + panel conversion
55-GAS-SM Spray Proof Gasket
